2-5

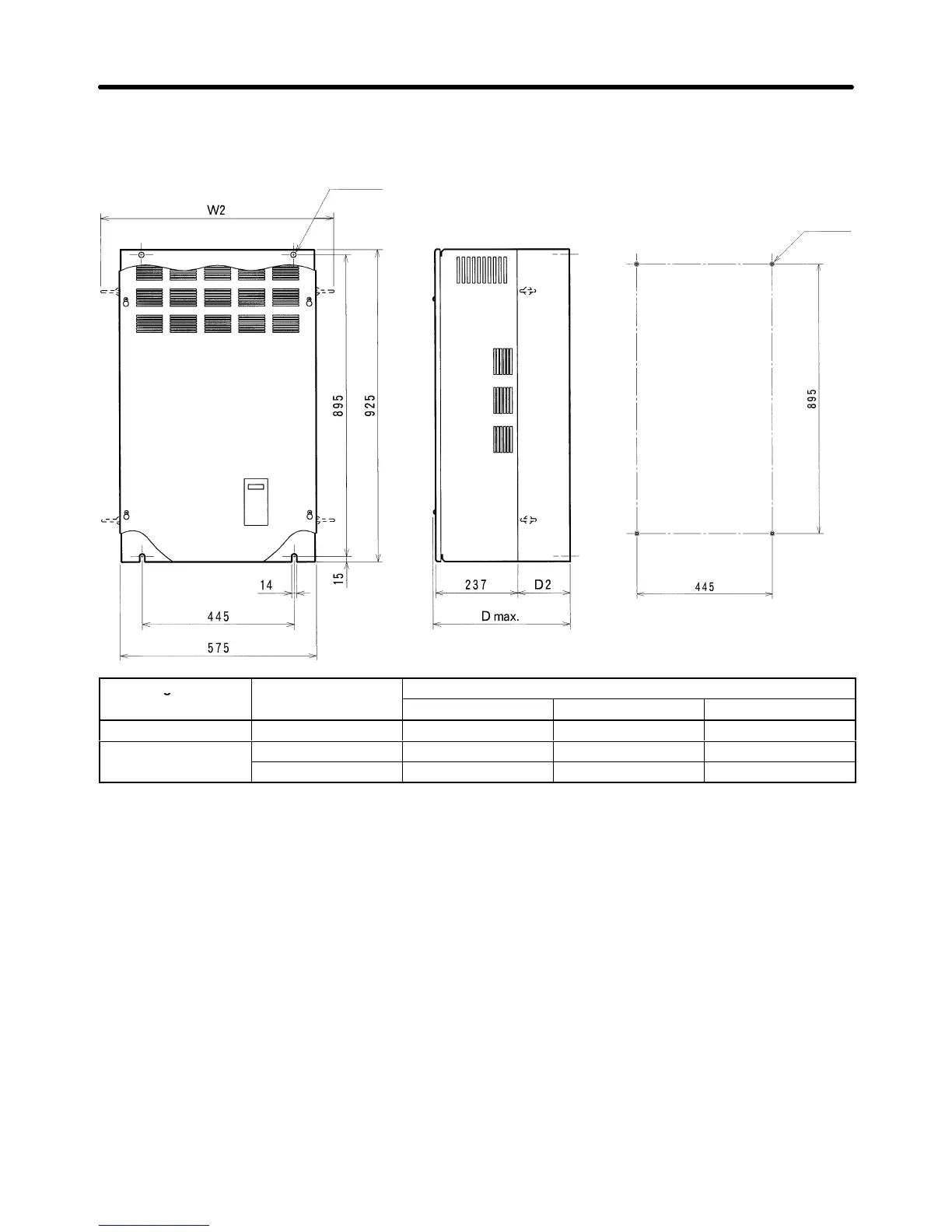

H 3G3HV-B2750/-B411K/-B416K
Two, 14 dia.
Four , M12
D External Dimensions D Mounting Dimensions
Voltage class Model 3G3HV-
Dimensions (mm)
g
D D2 W2
200-V B2750 400 max. 158 695
400-V
B411K 375 max. 130 695
B416K 400 max. 158 695
Installation Chapter 2
