XtraDrive User Manual Chapter 7: Using the Panel Operator
7-14

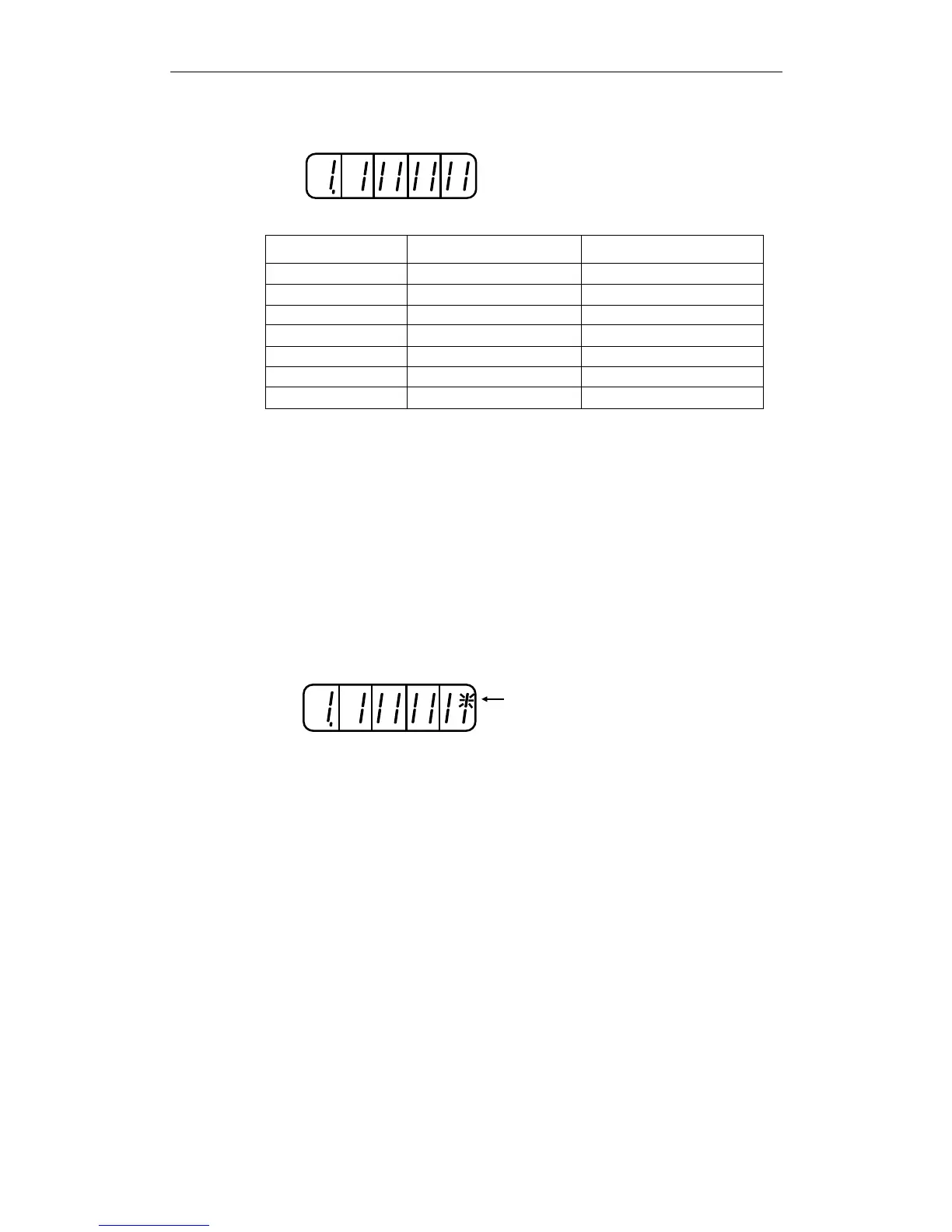

Output Signal Monitor Display
7 6 5 4 3 2 1
Top: OFF ("H" level)
Bottom: ON ("L" level)
Number
LED Number Output Terminal Name Default Setting
1 (CN1-31, -32) ALM
2 SO1 (CN1-25, -26) /COIN or /V-CMP
3 SO2 (CN1-27, -28) /TGON
4 SO3 (CN1-29, -30) /S-RDY
5 (CN1-37) AL01
6 (CN1-38) AL02
7 (CN1-39) AL03
Note: Refer to 5.3.4 Output Circuit Signal Allocation for details on output terminals.
Output signals are allocated as shown above and displayed on the panel
of the servo amplifier or the digital operator. They are indicated by the
ON/OFF status of the vertical parts of seven-segment displays located
in top and bottom rows. (The horizontal segments are not used here).
These vertical segments turn ON or OFF relative to the state of the
corresponding output signals (ON for “L” level and OFF for “H” level).
Example
• When ALM signal operates (alarm at “H”)
7 6 5 4 3 2 1
The top segment of
number 1 is lit.
