XtraDrive User Manual Appendix B: Special Wiring
B-7
Installation and Wiring a Noise Filter
Incorrect application of a noise filter significantly reduces its benefits.
Follow these instructions for the best results.

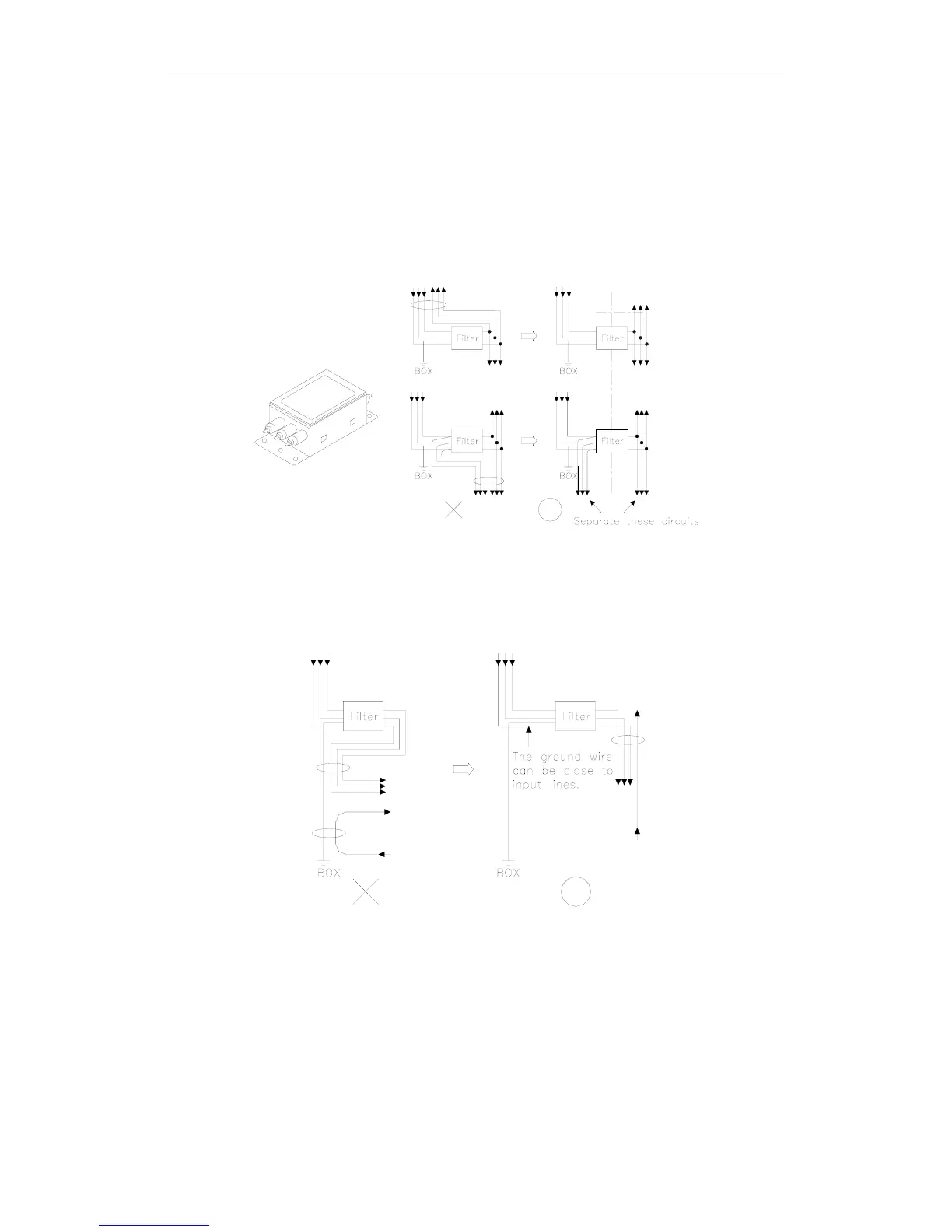

• Separate the input lines from the output lines.
Do not put the input and output lines in the same duct or bundle
them together.
• Isolate the noise filter ground wire from the output lines.
Do not put the noise filter ground wire, output lines and other signal
lines in the same duct or bundle them together.
