XtraDrive User Manual Chapter 4: Trial Operation
4-8
Operating Procedure In Position Control Mode:
Set Pn000.1 to 1
1. Set the parameter Pn200.0 so that the reference pulse form is the
same as the host controller output form.
To select the reference pulse form: See 5.2.2 Position Reference.
2. Input a slow speed pulse from the host controller and execute low-
speed operation.

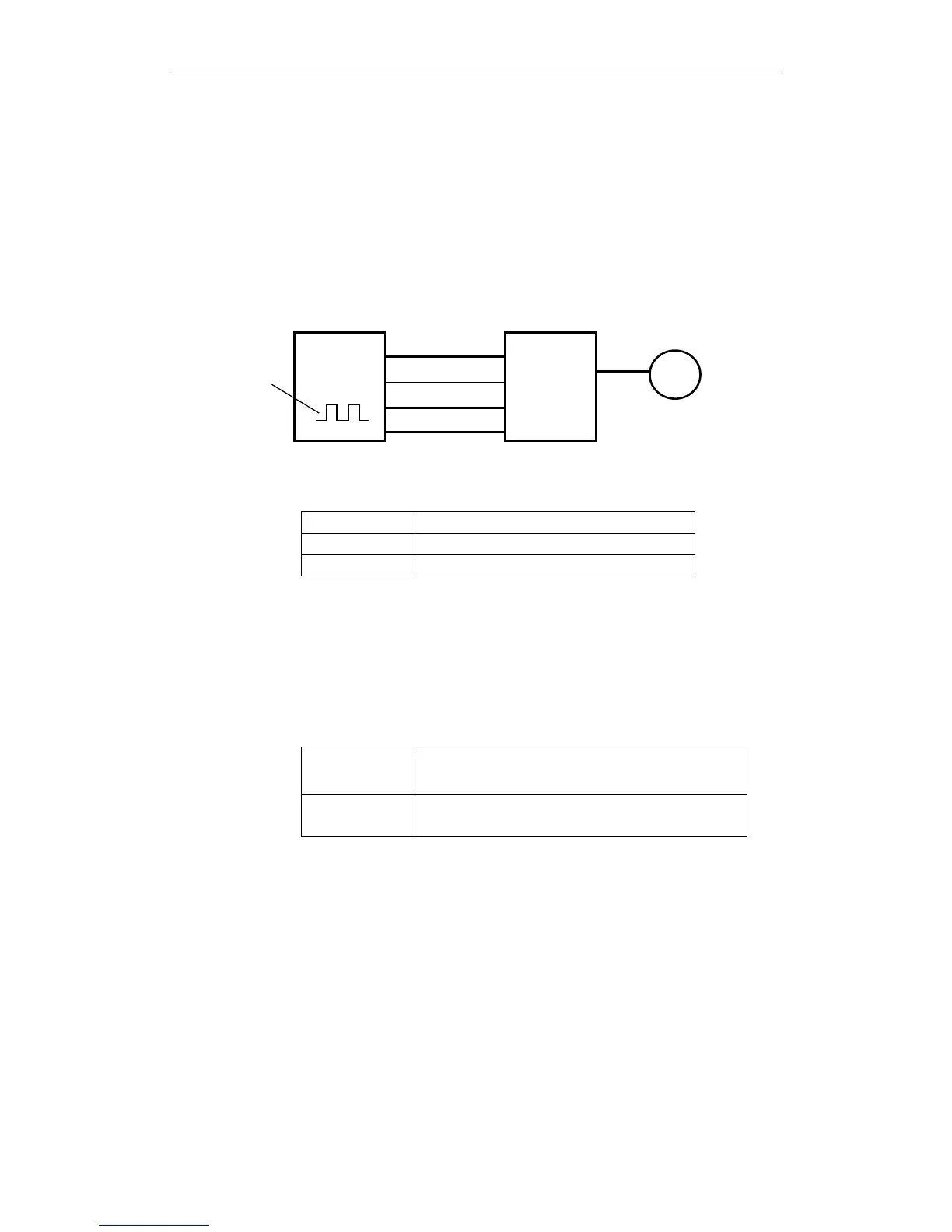

Host controller
Xtr aD ri ve
Reference
pulse
Servomotor
PULS
/PULS
/SIGN
SIGN
CN1-7
CN1-8
CN1-11
CN1-12
3. Check the following data in Monitor mode. See 7.1.6 Operation in
Monitor Mode.
Un000 Actual motor speed
Un007 Reference pulse speed display
Un008 Position offset
• Has the reference pulse been input?
• Is the motor speed as defined?
• Does the reference speed coincide with the actual motor speed?
• Does the servomotor stop when the speed reference is 0?
4. Reset the parameters shown below to change the motor speed or
direction of rotation.
Pn202, Pn203
Electronic gear ratio
See 5.2.5 Using the Electronic Gear Function.
Pn000.0
Selects the direction of rotation.
See 5.1.1 Switching Servomotor Rotation Direction.
If an alarm occurs or the servomotor fails to operate during the
above operation, the CN1 connector wiring is incorrect or the
parameter settings do not match the host controller specifications.
Check the wiring and review the parameter settings, then repeat
step 1.
Note: References
• List of alarms: See 9.2.3 Alarm Display Table.
• List of parameters: See Appendix D List of Parameters.
