3.52
ENGINE / COOLING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

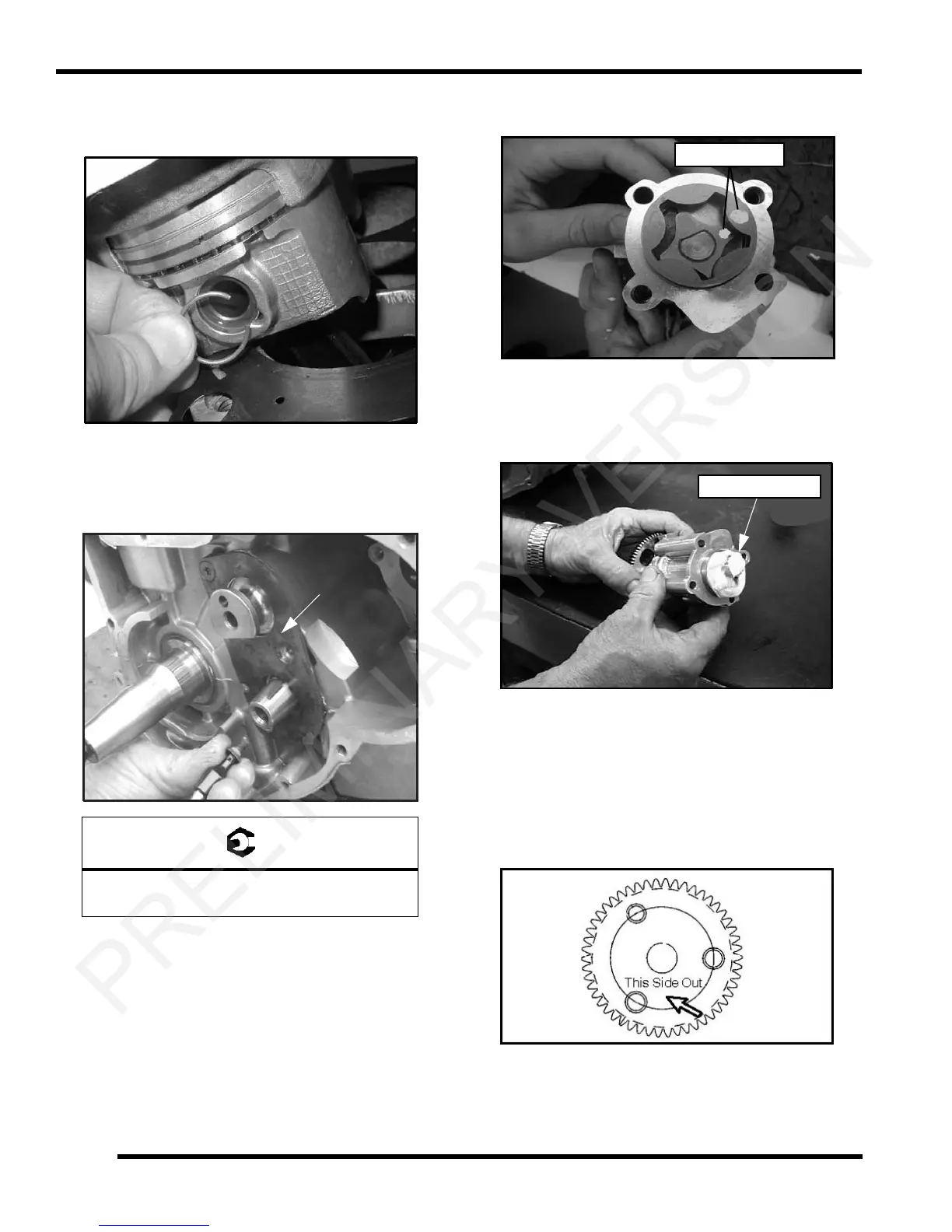

NOTE: While installing piston circlips, cover all
engine passages. The clip could fall into the engine
during installation.
16. Install camshaft thrust plate (G) with new bolts.
Torque bolts
to specification.
NOTE: New bolts have patch lock on the threads
a
nd do not require Loctite™.
17. Assemble rotors as marked when disassembled. Use
a cle
aner to remove marks previously made on rotors.
18. Apply assembly lube or oil to the rotors on the oil pump
sh
aft.
NOTE: The application of lubr
ication aids in priming
the oil pump during initial engine start up.
19. Align the bolt holes and install oil pump assembly into
cr
ankcase. Rotate the rotors in the housing during
installation, as this checks for binding if new rotors are
used.
NOTE: For assembly of the gears, the cam gear and
the
crankshaft gear are stamped with “This Side
Out”. This indicates the side of the gear that faces
outward or away from the case.
NOTE: Before assembly, clean the bolts and bolt
holes
with Loctite Primer N (commercially available)
to remove any debris. This will ensure proper
sealing when installing bolts and new Loctite™.
Thrust Plate Screw:
115 ± 12 in-lbs (13 ± 1.35 Nm)
