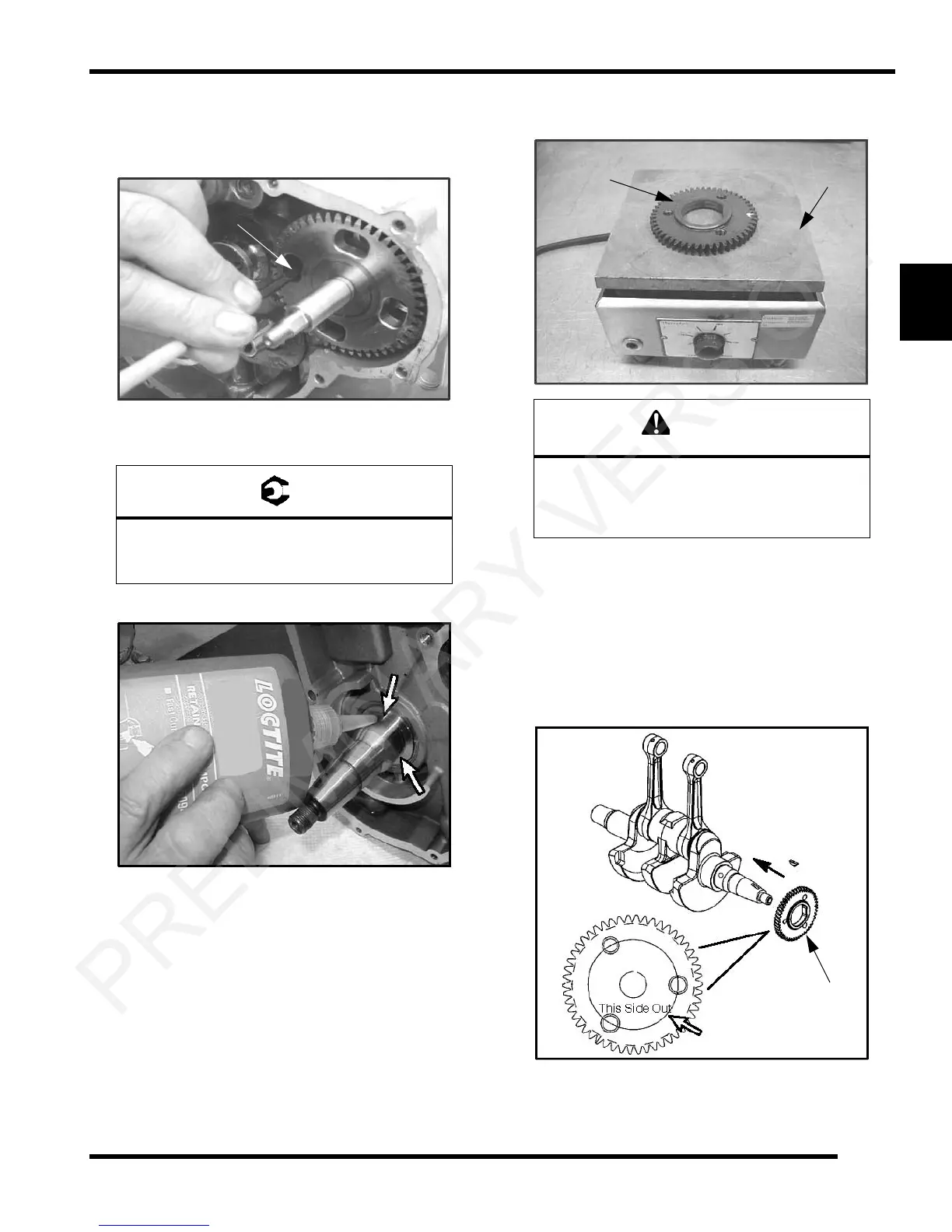

20. Install oil pump housing bolts (H). The new bolts
contain patch lock, so Loctite
is not needed on the
new bolts. Torque bolts to specification and follow the
torque sequence at beginning of the chapter.
NOTE: Occasionally spin the oil pump when
inst
alling bolts to check for binding of the rotors.
21. Apply Loctite
242 (PN 2871949) to the crankshaft.
22. Before installing
the crankshaft gear (I), heat the
crankshaft gear to 250
F (121C) on a hot plate (J).
23. Use extreme caution when removing the crankshaft
g
ear from the hot plate. Use a pair of pliers and leather
gloves when handling the crankshaft gear.
24. Install the crankshaft gear (I) onto the crankshaft.
NOTE: For assembly of the gears, the cam gear and
t
he crankshaft gear are stamped with “This Side
Out”. This indicates the side of the gear that faces
outward or away from the case.
Oil Pump Bolt:
84 8 in-lbs (9.50 0.90 Nm)
Torque in Sequence
The crankshaft gear is extremely hot! Severe
burns or injury can occur if the gear is not
handled with extreme care and caution. Follow
the procedure below to help ensure safety.
