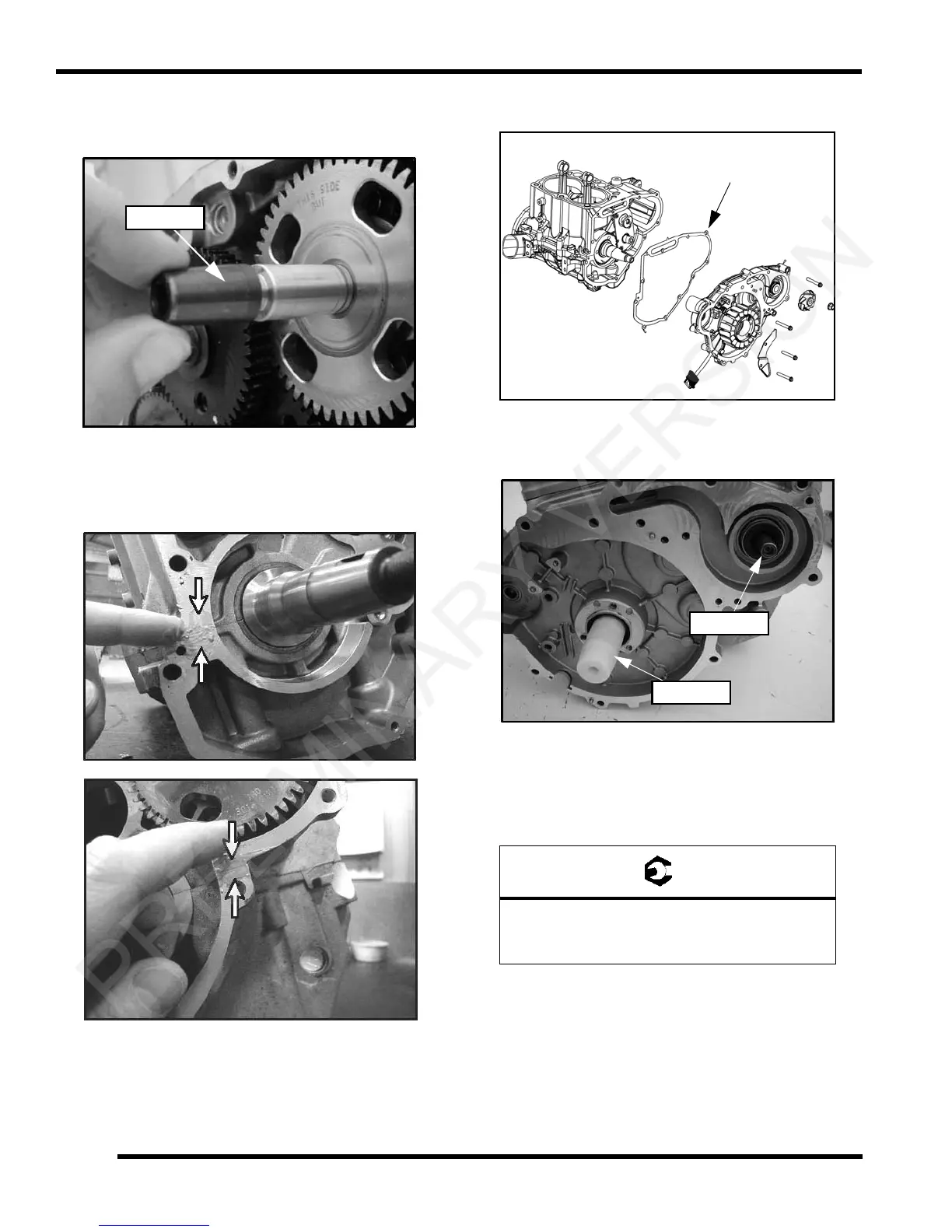

32. Before installing the gear/stator housing cover, install
the Water Pump Seal Saver (PA-45401) onto the
water pump shaft.
33. Apply Crankcase Sealant (
PN 2871557) to the
outside edges of the crankcase halves (see arrows),
where the crankcases mate (see the following
photos). This helps to prevent coolant leakage.
34. Install a new gear/stator housing gasket onto the
cr
ankcase.
35. With both seal savers install
ed, carefully place the
gear/stator housing cover over the protection tools
and onto the crankcase.
36. Secure the gear / stator housing cover to the
cr
ankcase with the cover bolts. Torque bolts in proper
sequence to specification. Remove seal protectors
from the shaft ends once the cover is secure.
NOTE: Before assembly, clean the bolts and bolt
holes
with Loctite Primer N (commercially available)
to remove any debris. This will ensure proper
sealing when installing bolts.
Gear/Stator Housing Bolt:
96 12 in-lbs (10.85 1.35 Nm)
Torque in proper sequence
