Polaris 2013 RANGER RZR S - Page 109

3.57
ENGINE / COOLING
3
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

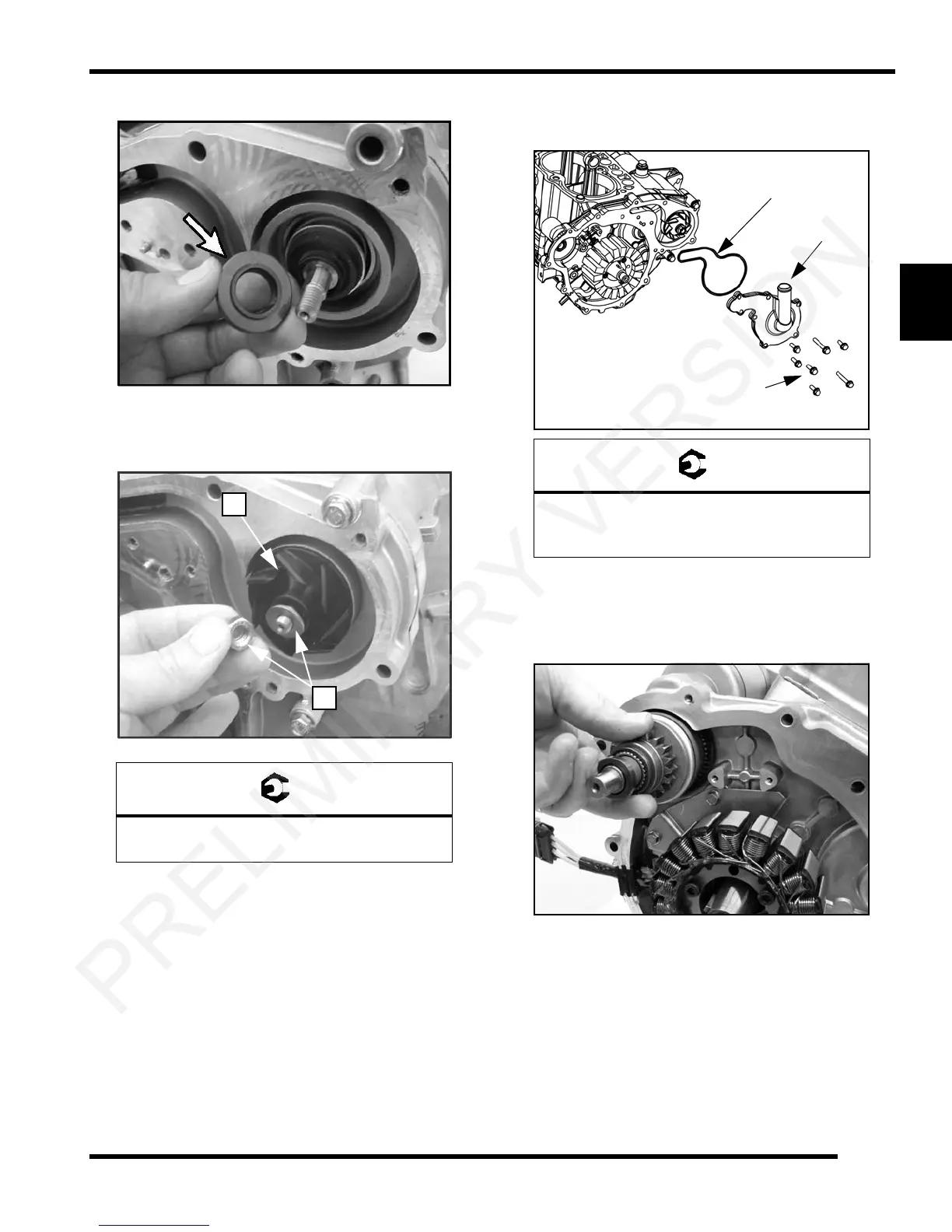

37. Install shaft seal with ceramic surface facing inward.
38. Install water pump impeller (P). Secu
re the impeller
with the washer and a new nut (Q). Torque the nut
to specification.
39. Install water pump cover (R) with new O-ring seal.
Torque bolts
to specification in proper sequence (see
Page 3.4).
40. Sparingly apply Starter Drive Grease (
PN 2871423) to
the starter drive. Install the starter bendix.
NOTE: There are thrust washers on both sides of
st
arter drive.
= T
Water Pump Impeller Nut:
108  6 in-lbs (6.8  0.68 Nm)
P
Q
= T
Water Pump Housing Bolt:
96  12 in-lbs (10.85  1.35 Nm)
Torque in proper sequence
Install the O-ring dry
R
96 ± 12 in-lbs
(10.85 ± 1.35 Nm)
No lubricants
PRELIMINARY VERSION
