7.20
FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

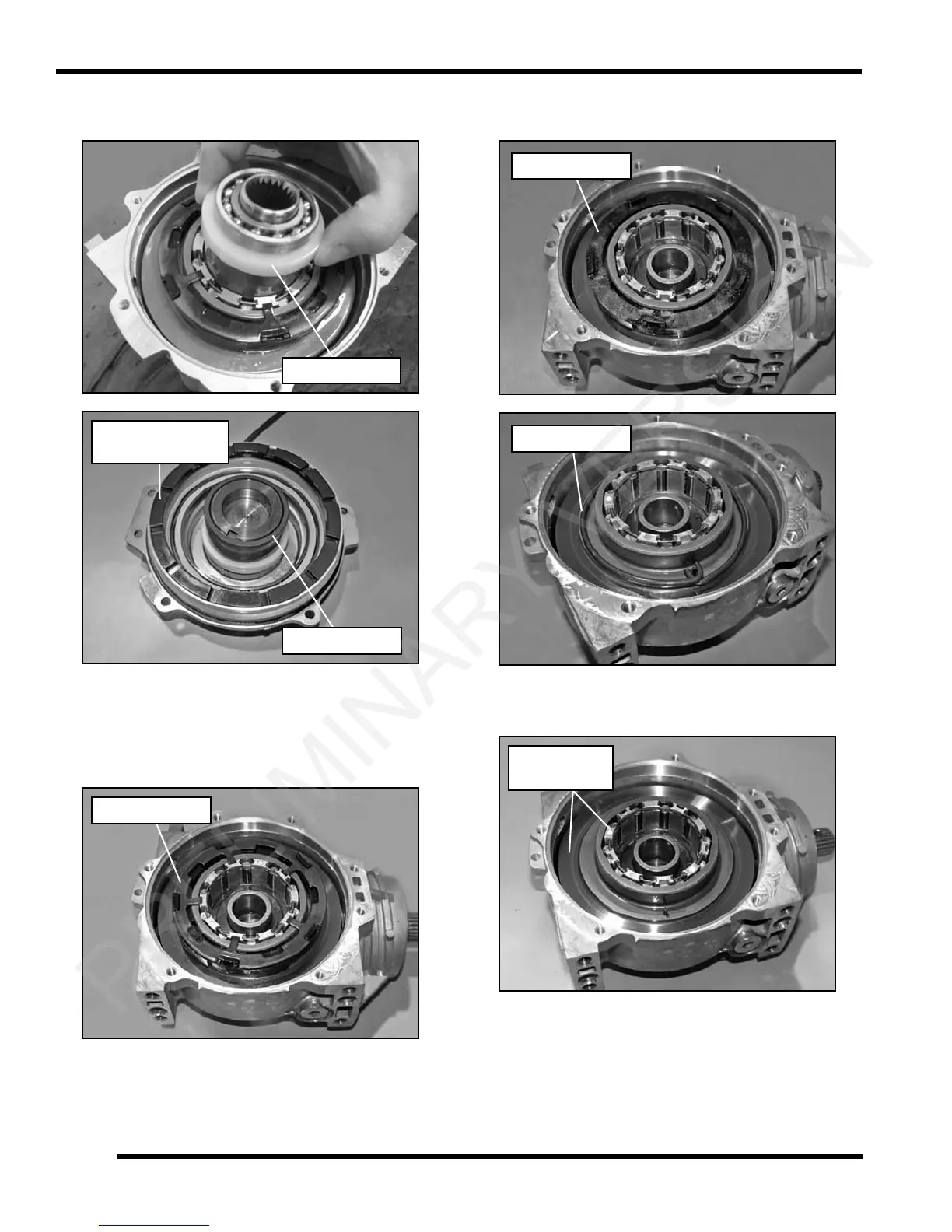

3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE: Nylon spacer is non-serviceable and should
no
t be removed.
4. Remove and inspect the armature plate. Refer to
“
AWD Diagnosis” for detailed inspection process.
5. Remove the torsion spring retainer and torsion spring
f
rom the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
asse
mbly from the gearcase housing.
LH Output Hub
LH Output Hub
Non-serviceable
DO NOT Remove
Armature Plate
Spring Retainer
Torsion Spring
Remove as
an assembly
PRELIMINARY VERSION
