8.12
TRANSMISSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

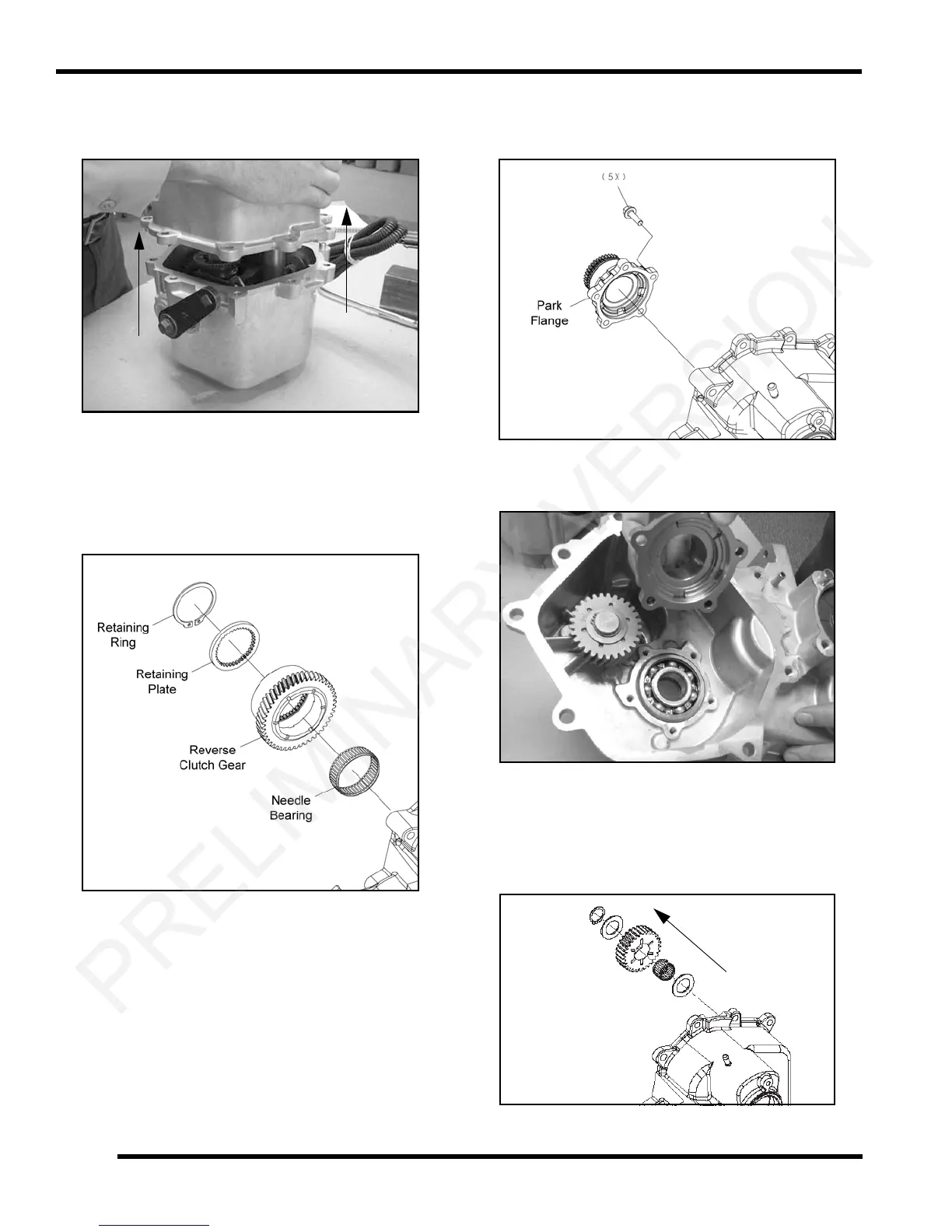

2. Place the transmission shift housing onto a flat
surface as shown. Lift the transmission case half
straight up and remove.
NOTE: Shaft components may “catch” during
t
ransmission case half disassembly. Work slowly
and deliberately to avoid component loss or
damage.
3. Remove the retaining ring and retaining plate.
4. Remove the reverse clutch gear assembly from the
ho
using. Inspect these components and replace if
needed.
5. Remove the (5) screws retaining the park flange.
In
spect the park flange for wear or damage. Replace
if needed.
6. Inspect the shaft bearing. Use a standard bearing
pulle
r to remove the shaft bearing if required.
NOTE: Do not pull bearing from case for inspection,
as t
he removal process damages the bearing.
7. Remove the reverse idler snap ring, upper washer,
gea
r, needle bearing, and lower washer from the idler
shaft.
PRELIMINARY VERSION
