8.15
TRANSMISSION
8
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

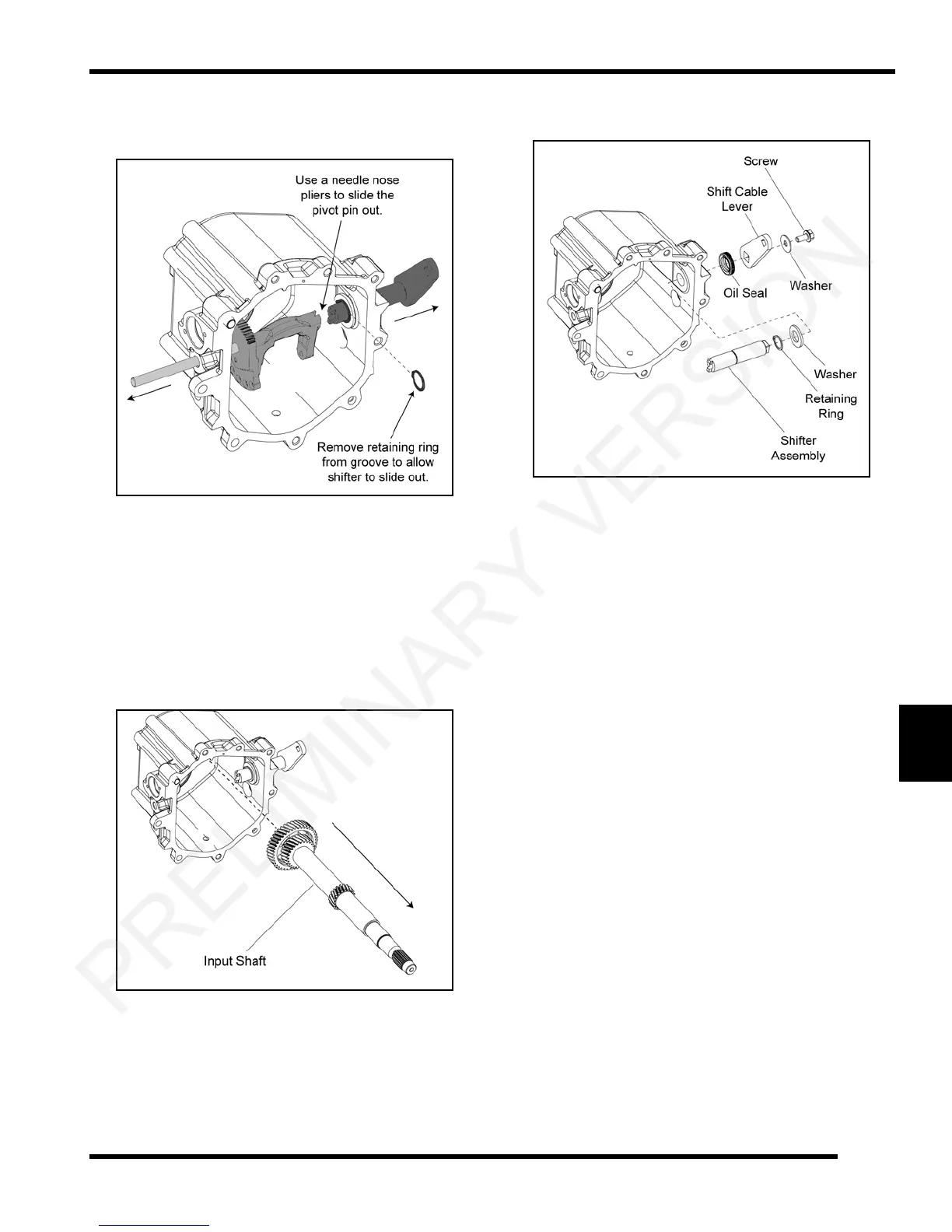

21. Locate the retaining ring on the shifter assembly and
move the retaining ring out of the groove to allow the
shifter assembly to slide out.
22. Use a needle nose pliers to grab the pivot pin and slide
the
pin out of the case.
23. Remove the clutch yoke from the shifter assembly and
o
ut from the transmission housing.
24. Remove the transmission input shaft from the
h
ousing. Inspect the shaft bearing and replace if
required using a shop press. Inspect the gears for
damage and/or wear. Replace the shaft if required.
25. Remove the screw from the end of the shift cable lever
a
nd remove the shifter assembly from the housing.
26. Inspect the shifter assembly shaft and housing for
e
xcessive wear or damage. Replace components if
needed.
27. Inspect and replace the case bearings if required.
NOTE: Do not pull bearings from case for
ins
pection, as the removal process damages the
bearing.
Pivot
Pin
Shifter
Assembly
Clutch
Yoke
PRELIMINARY VERSION
