8.14
TRANSMISSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

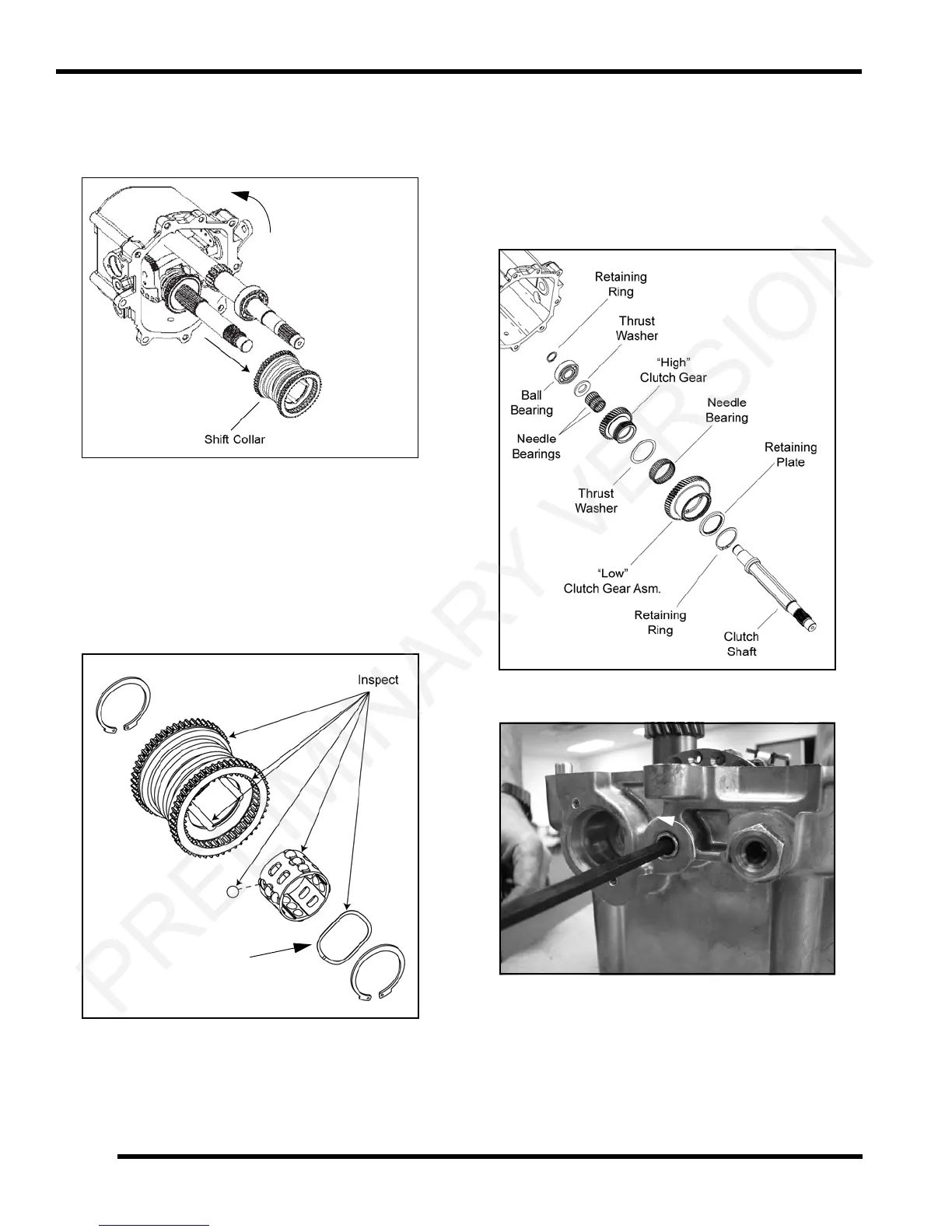

12. Pull back fully on gear selector arm to bring shift collar
up and disengage the shift collar from the clutch yoke.
Lifting on the clutch shaft may aid in shift collar
removal.
13. Inspect the inner and outer g
ear teeth and splines on
both ends of the shift collar for excessive wear or
damage.
14. Remove the retaining rings from each end of the shift
collar.
15. Remove the wave spring and ball bearing cage
a
ssembly from the shift collar as shown.
16. Inspect the ball bearing channels on both ends of the
shift coll
ar for excessive wear or damage.
17. Remove the sliding shoes from the clutch yoke.
18. Remove the clutch shaft assembly from the housing.
The forw
ard gear assembly and bearings will remain
on the shaft upon removal.
19. Disassemble the clutch shaft as needed by removing
both r
etaining rings and separating the high and low
gears from the clutch shaft. Inspect all parts for wear
or damage and replace as required.
20. Remove the set screw retaining the pivot pin.
IMPORTANT: Wave spring
end of shift collar must face
out toward the park flange
when installed on the
intermediate shaft asm.
