3.19
ENGINE / COOLING
3
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

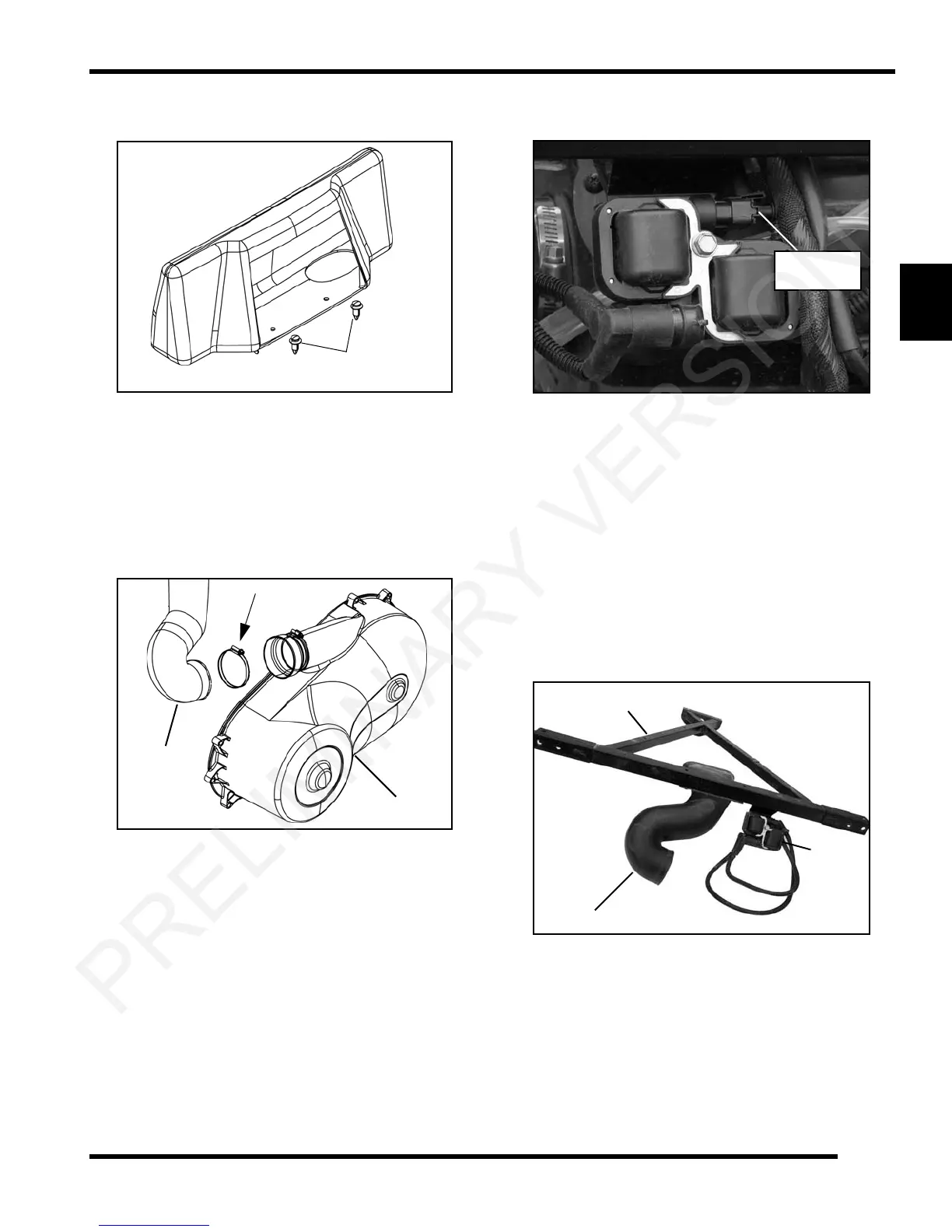

11. Remove the (2) push rivets and remove the intake box
from the vehicle.
12. Elevate the rear of the vehicle off the ground using a
suit
able ATV lift and remove both rear wheels.
13. Remove all exhaust components from vehicle and
e
ngine.
14. Loosen the hose clamp attaching
the outlet duct to the
PVT cover. Leave the duct attached to the upper
frame support.
15. Remove the (8) screws that retain the PVT cover and
r
emove cover.
16. Remove the high tension leads from the spark plugs
an
d disconnect the ignition coil harness.
IMPORTANT: Mark or note which ignition coil wire
g
oes to which cylinder and ignition coil post. The
engine will misfire if the spark plug wires are installed
incorrectly. The spark plug wires are marked with PTO
and MAG from the factory and should be installed to
the corresponding cylinder and ignition coil post.
17. Remove the vent lines from the upper bolt-in frame
b
race and plug vent lines to prevent fluid leakage
during removal.
18. Remove the (6) fasteners retaining the upper bolt-in
fra
me brace and remove it from the vehicle with the
ignition coil and PVT duct attached.
Ignition
Coil
Frame Support
PVT Duct
To Next Page
