3.20
ENGINE / COOLING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

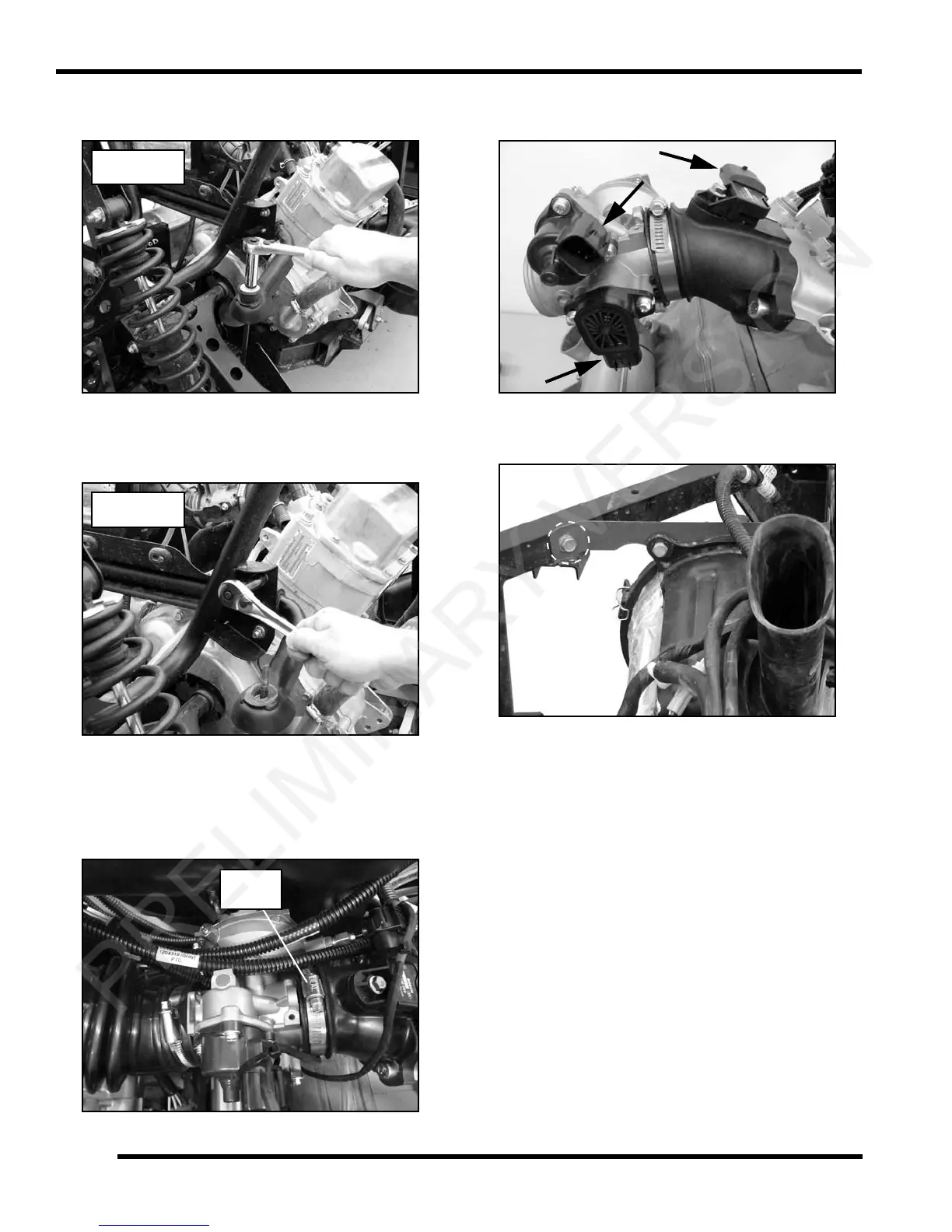

19. Remove the rear stabilizer bar from the linkage on
both sides of the vehicle.
20. Remove the (4) fasteners retaining the stabilizer bar
a
nd bracket and remove the assembly from the
vehicle.
21. Remove the engine breather hose from the valve
cover.
22. Loosen the hose clamp between the throttle body and
int
ake adaptor.
23. Disconnect the T-MAP, IAC and TPS sensor
c
onnectors from throttle body.
24. Remove the remaining bolt attaching the airbox to the
fr
ame (see photo).
25. Remove the airbox and throttle body from the vehicle
as an a
ssembly. Take care in not allowing the throttle
cable to bend excessively or kink. Carefully place the
assembly on the floor next to the vehicle. Insert a shop
towel into the engine intake adaptor to prevent dirt
from entering the engine.
NOTE: Ensure throttle cable is not being
exc
essively bent or kinked while removed from the
vehicle.
26. Mark the fuel injector harnesses to identify MAG and
PT
O harness connections to aid during reassembly.
Disconnect the fuel injector harnesses.
