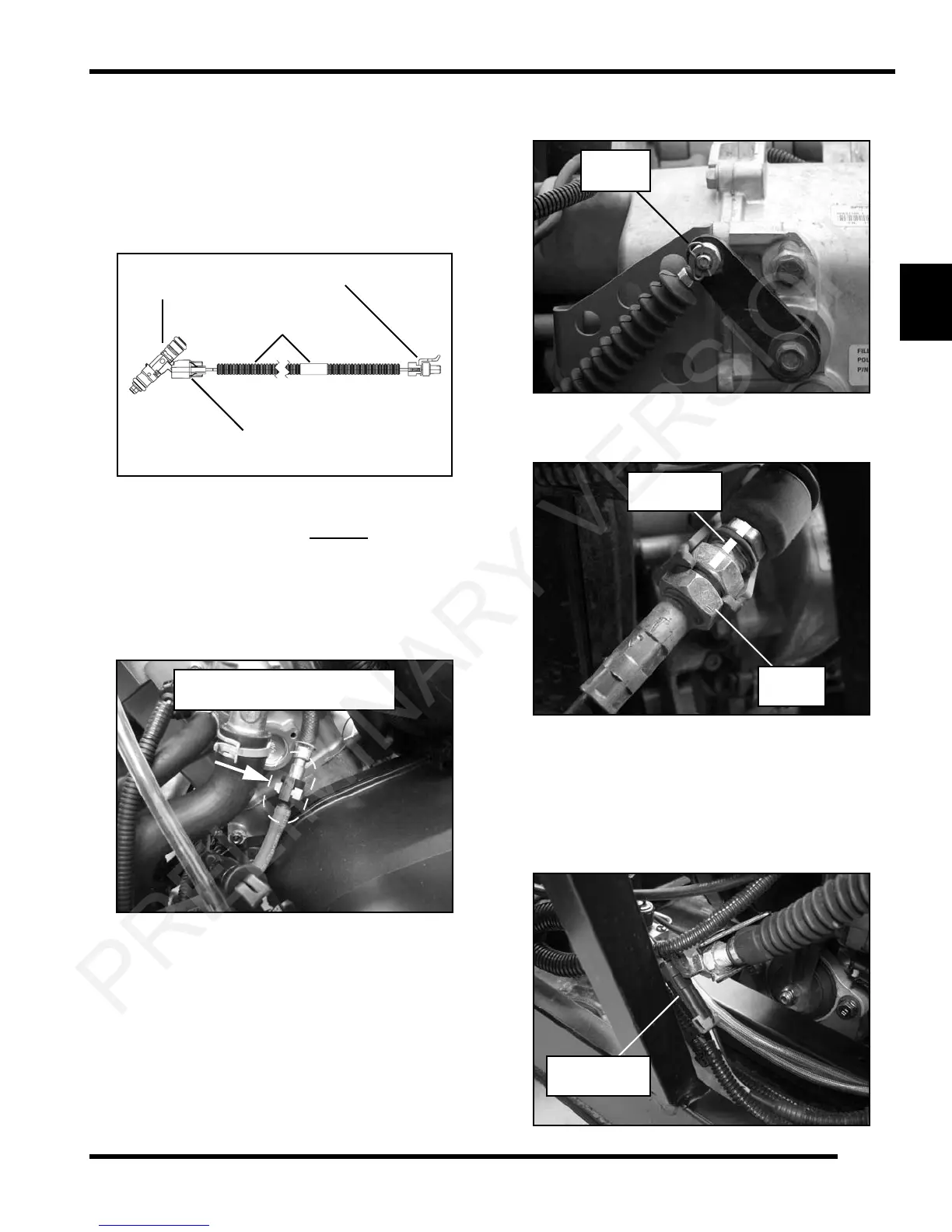

NOTE: The fuel injector harness connector and
locking spring is bonded to the fuel injectors with an
epoxy mix. DO NOT attempt to disconnect the
connector from the fuel injectors. Damage will occur
to the injector and/or harness if attempting to
separate at that location. Separate the fuel injector
from the vehicle by disconnecting at the end of the
harness as shown.
IMPORTANT: Take note of PTO and MAG fuel injector
ha
rness connectors before disconnecting them. The
harnesses are different and
can not be connected
incorrectly (PTO - Gray; MAG - Black).
27. Disconnect the fuel line from the fuel injector rail by
sligh
tly squeezing the lock tabs and gently pushing
the connector lock out. To separate the lines, pull the
fuel line from the tank strait down.
28. Disconnect the shift cable from the transmission bell
cr
ank.
29. Mark the upper jam nut and loosen the lower jam nut.
Pu
ll the shift cable out of the mount.
NOTE: If the upper jam nut is moved, shift cable
a
djustment will be required during engine
installation (see Chapter 2 “Shift Cable Inspection /
Adjustment”).
30. Disconnect the transmission
gear indicator switch
harness.
Disconnect Here
DO NOT
Disconnect Here
Fuel
Injector
Harness
Squeeze locking tabs together
Push lock outward
Lower
Jam Nut
Mark Upper
Jam Nut
To Next Page
