ENGINE / COOLING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

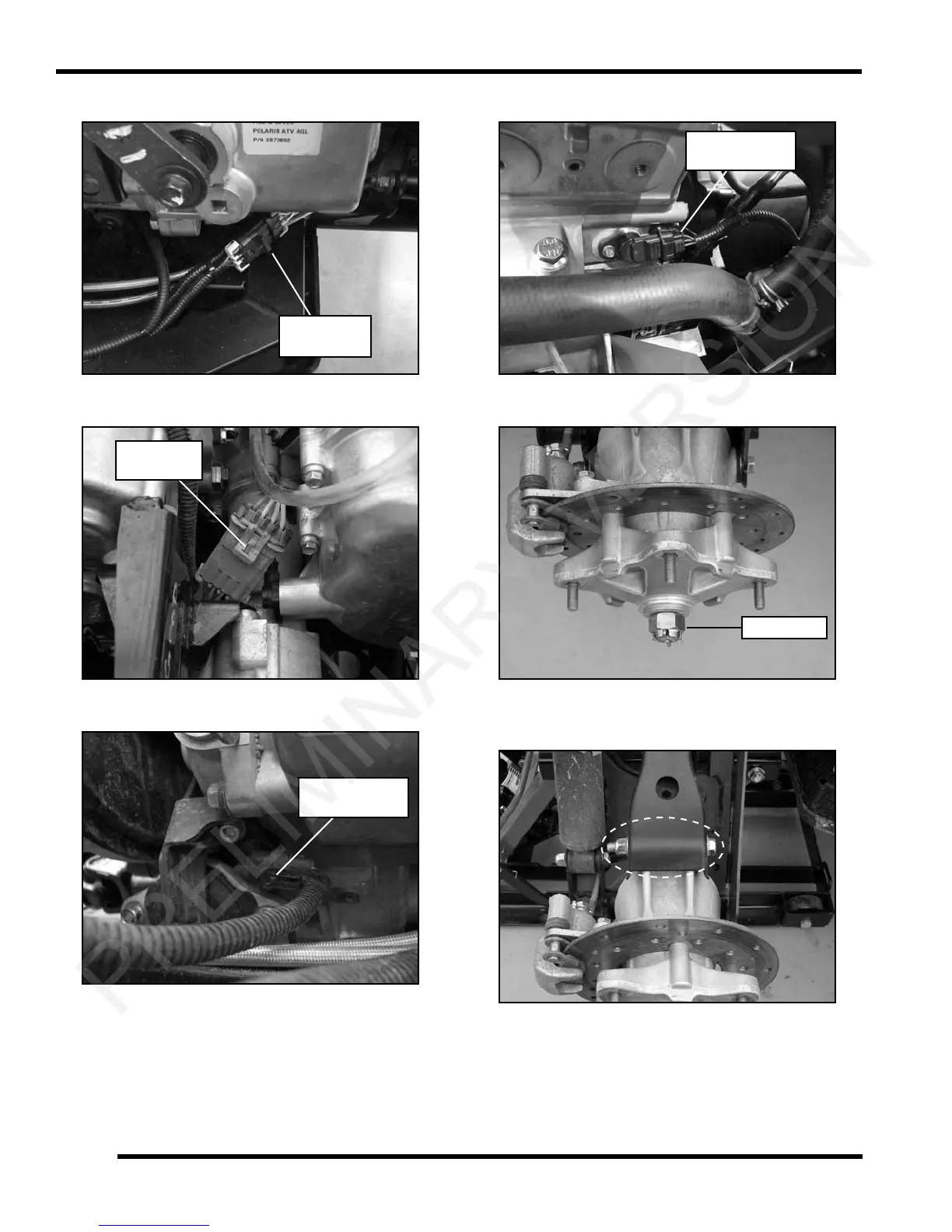

31. Disconnect the CPS harness.
32. Disconnect the stator / alternator harness.
33. Disconnect the transmissio
n speed sensor harness.
34. Disconnect the cam phase sensor connector.
35. Remove the castle nuts from both rear wheel hubs.
36. Remove the through-bolt that attaches the upper A-
arm
to the rear hub on both sides of the vehicle.
CPS
Connector
Stator
Connector
Speed Sensor
Connector
Cam Phase
Connector
Castle Nut
