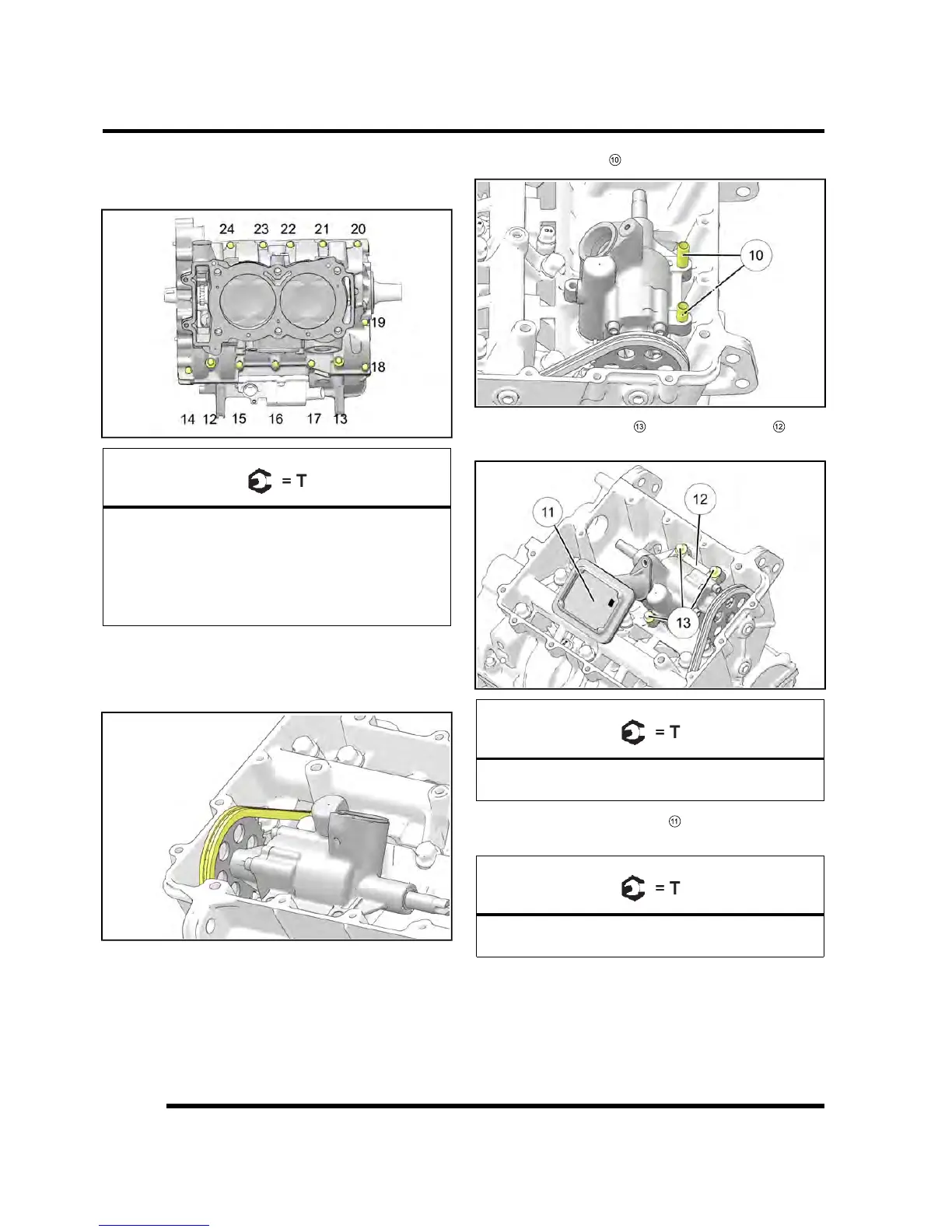

13. Torque the upper crankcase bolts in sequence to

specification (start with #12). Repeat the sequence

to verify final torque.

Upper Crankcase Bolts:

M8 Bolts:

26 ft-lb (35 Nm)

M6 Bolts:

9 ft-lb (12 Nm)

14. Rotate the engine so the cylinder is facing down.

15. Install a new seal on the oil pump.

16. Lift the oil pump drive chain and install the oil pump.

17. Install dowel pins

into oil pump mounting holes.

18. Install the three bolts

that retain oil pump

to the

crankcase. Torque mounting bolts to specification.

Oil Pump Mounting Bolts:

7 ft-lbs (10 Nm)

19. Reinstall oil pump pick-up

if previously removed.

Torque mounting screws to specification.

Oil Pump Pick-Up Retaining Screws:

7 ft-lb (10 Nm)

20. Clean the gasket sealing surfaces on oil sump cover

and crankcase to remove old gasket material and

any oil.

NOTE: Gasket surfaces must be DRY and oil

free. Use care upon assembly to keep oil away.
