9925723 R01 - 2015 RZR 900 Service Manual

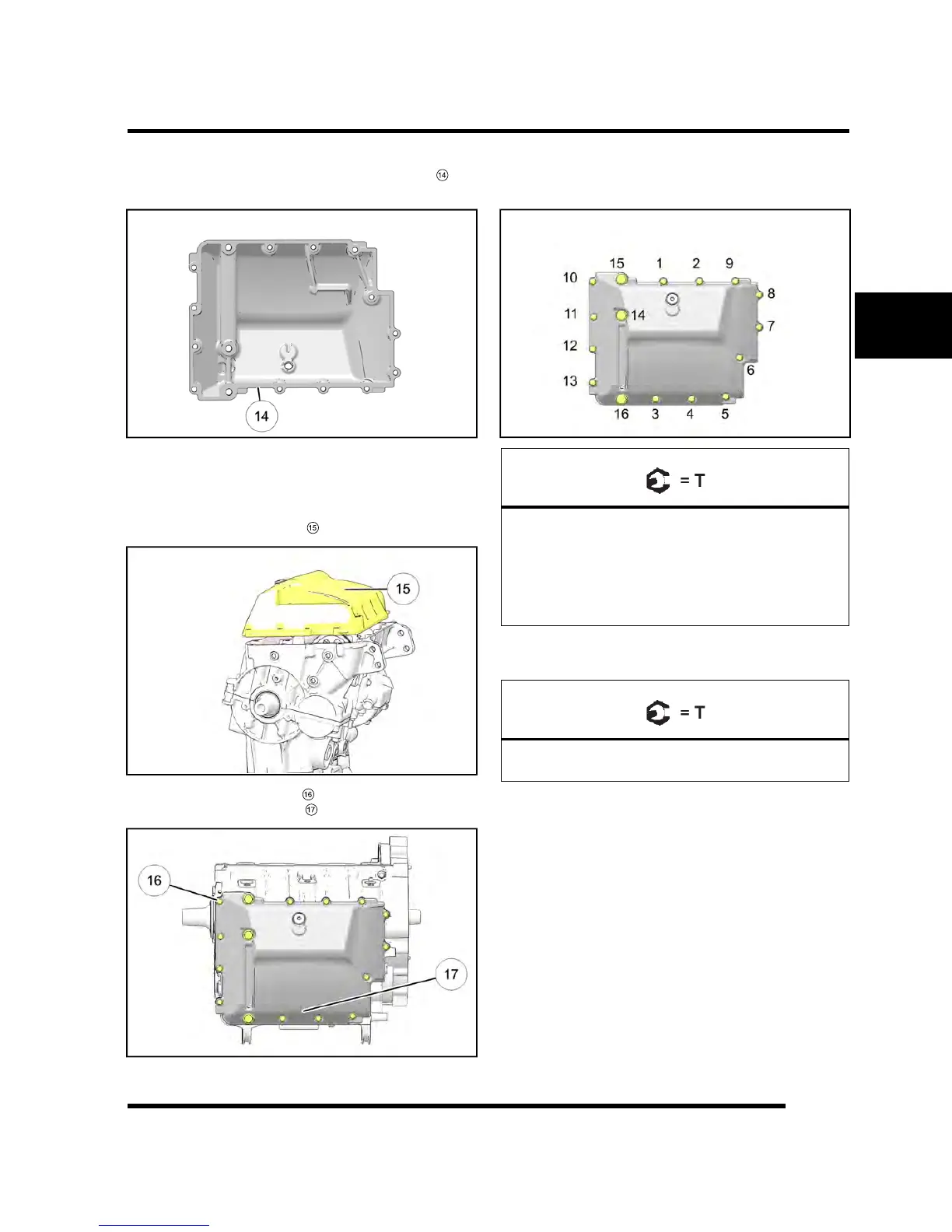

21. Apply a thin, continuous film of Crankcase Sealant

(PN 2871557) to sump cover mating surface

. Do

not allow sealant to dry before assembly.

NOTE: Dipstick must be removed before oil pan

is assembled to the engine. Failure to do this will

damage the dipstick.

22. Install the oil sump cover

onto the crankcase.

23. Install the thirteen M6

and three M8 bolts that

retain the oil sump cover

to the crankcase.

24. Torque the oil sump cover bolts in sequence to

specification. Repeat the sequence to verify final

torque.

Oil Sump Cover Bolts:

M6 Bolts:

9 ft-lb (12 Nm)

M8 Bolts:

26 ft-lb (35 Nm)

25. Reinstall the crankcase drain plug if previously

removed. Torque drain plug to specification.

Crankcase Drain Plug:

11 ft-lbs (15 Nm)

26. Rotate the engine so the cylinder is facing up.
