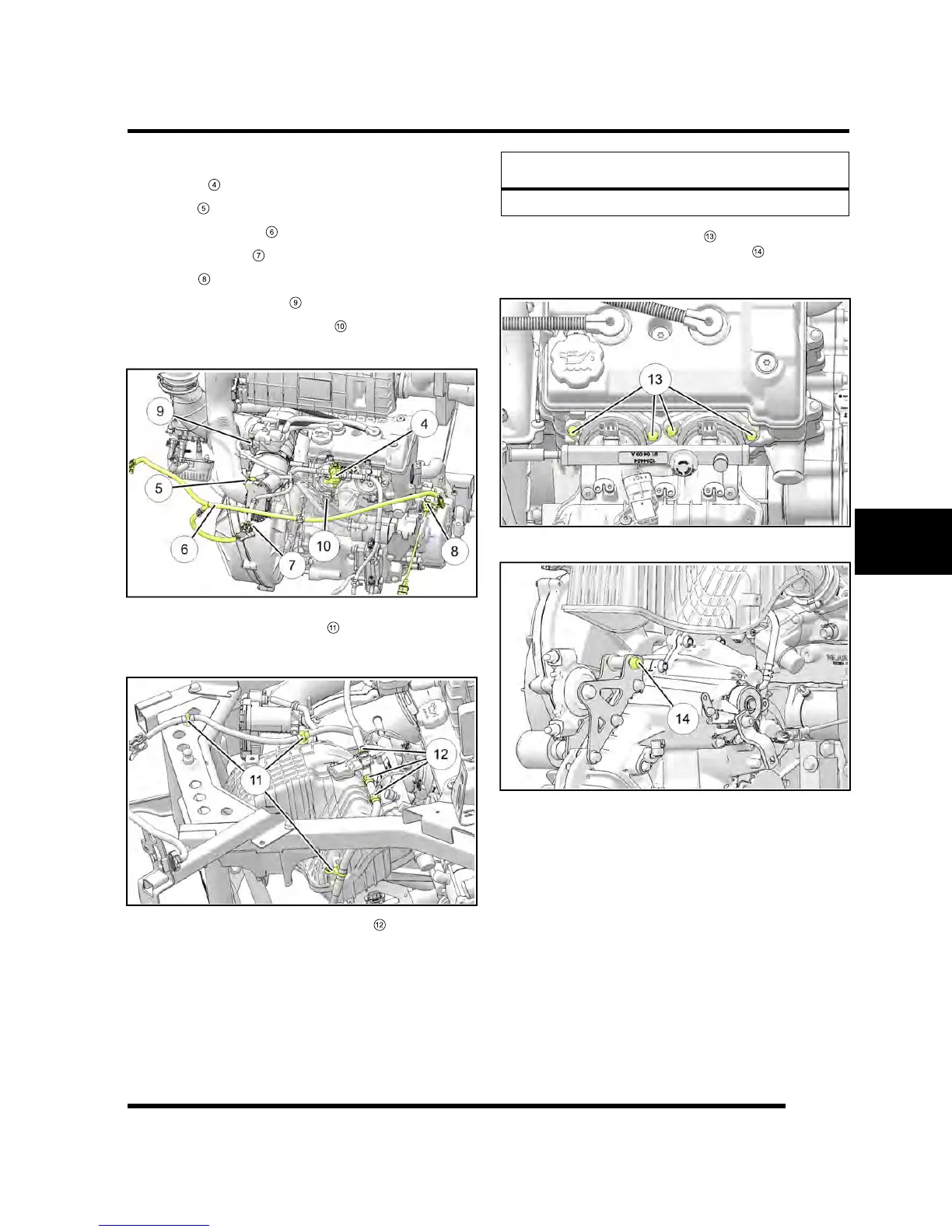

7. Disconnect the following electrical components:
• TMAP
4
• ETC
5
• taillight harness
6
• speed sensor
7
• CPS
8
• transmission switch
9
• engine temperature sensor
10
• diff relay (if equipped)
8. Remove the three fasteners
11
retaining the harness
to the intake manifold and two fasteners retaining the
harness by the transmission switch.
9. Remove the three harness clamps
12
on the intake
manifold. Move the main harness out of the way
towards the driver’s seat.
10.Disconnect the two fuel rail mounting bolts and move
the fuel rail off to the driver’s side.
CAUTION
Be careful not to pinch or kink the fuel rail
11. Remove the four fasteners
13
retaining the intake
manifold to the engine and the one
14
retaining the
bottom of the intake manifold to the transmission
bracket.
