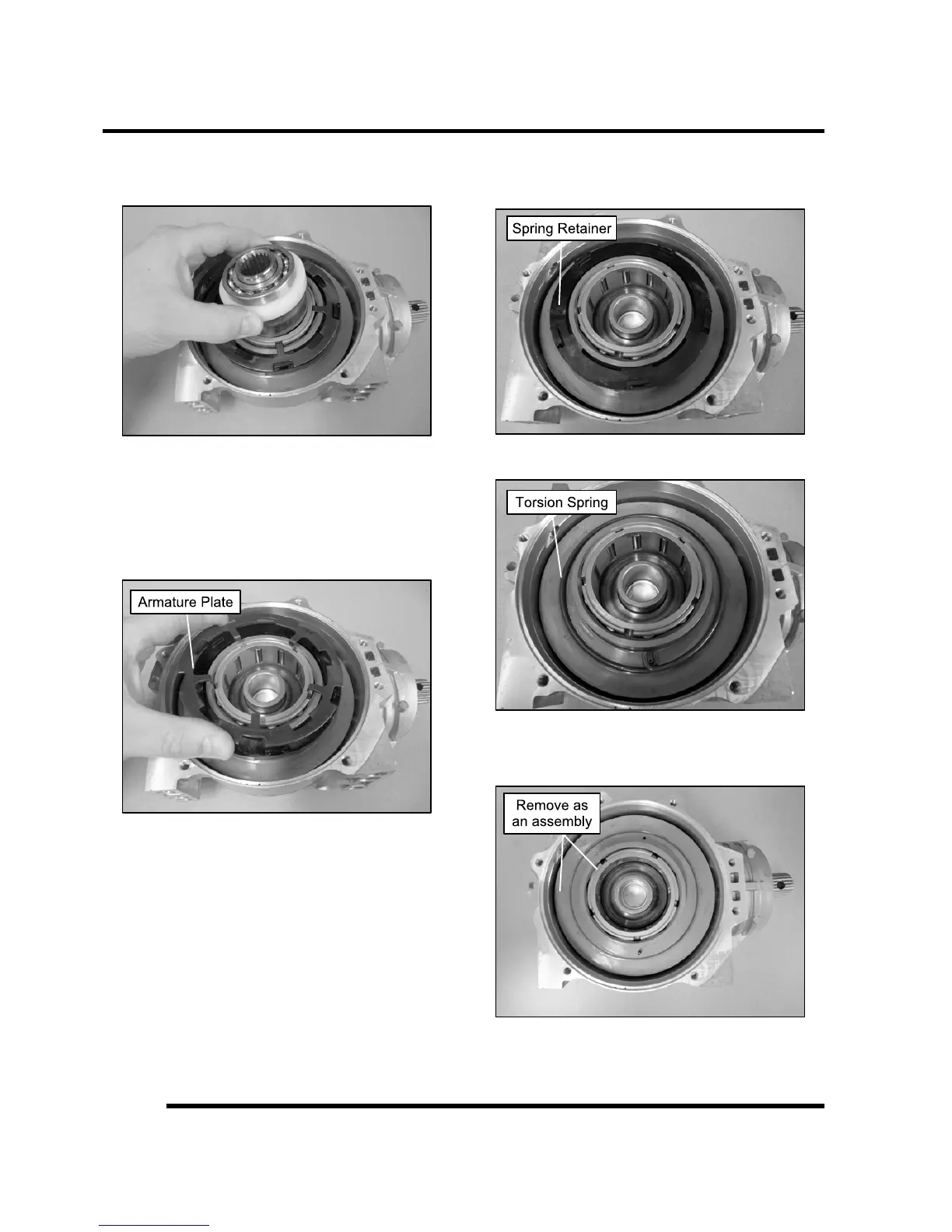

3. Remove the LH output hub assembly from the clutch
housing or outer cover plate assembly.
NOTE: Nylon spacer is non-serviceable and
should not be removed.
4. Remove and inspect the armature plate. Refer to
AWD Diagnosis, page 7.24 for detailed inspection
process.
5. Remove the torsion spring retainer and torsion
spring from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
assembly from the gearcase housing.
