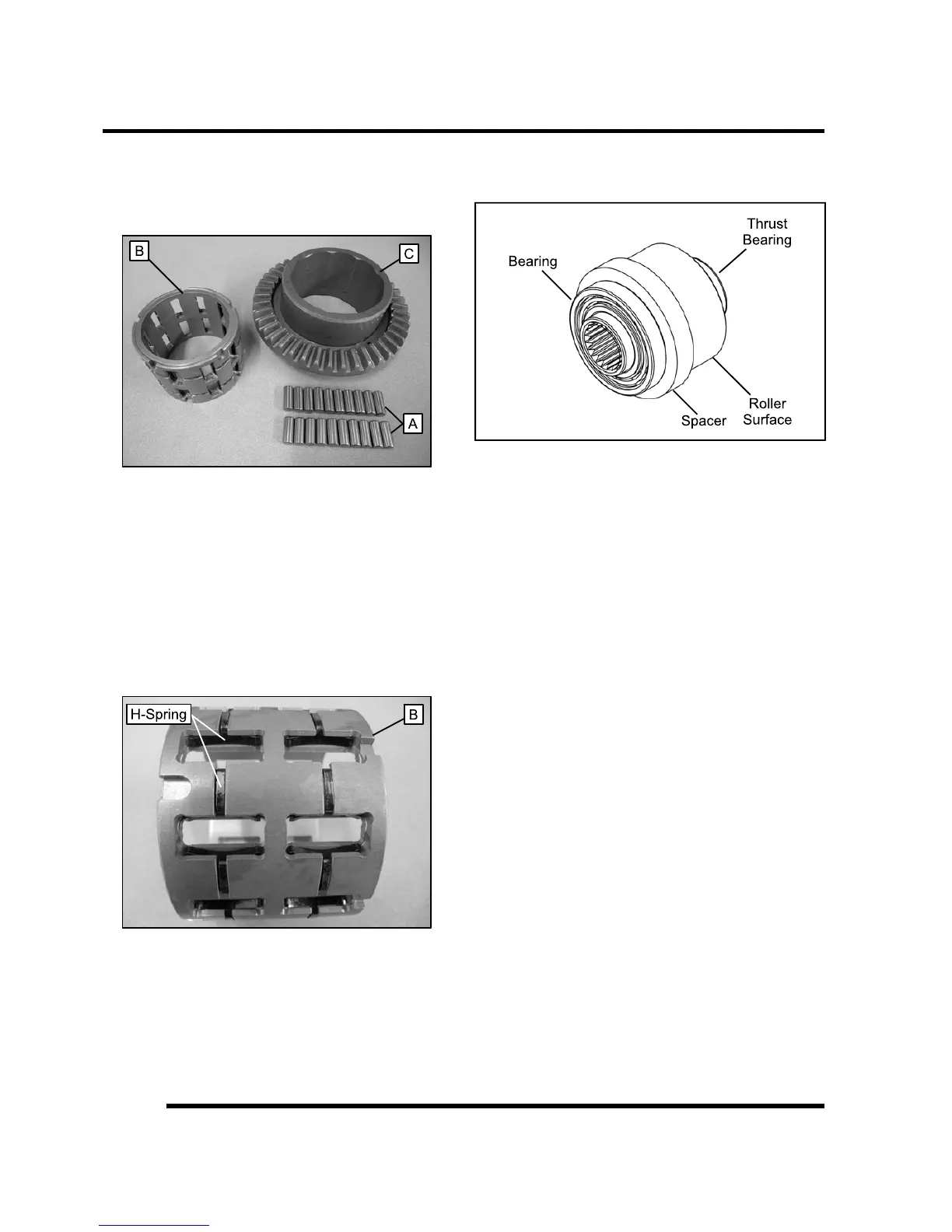

12. Thoroughly clean all parts and inspect the rollers (A)
for nicks and scratches. The rollers must slide up
and down and in and out freely within the roll cage
(B) sliding surfaces and H-springs.
NOTE: Refer to the “Electronic Parts Catalog”
for individual part availability. Most parts are to
be replaced as an assembly or as a complete kit.
13. Inspect clutch housing / ring gear (C) for a consistent
wear pattern. Inspect the ring gear for chipped,
broken, or missing teeth.
14. Inspect the roll cage assembly (B) sliding surfaces
and H-springs. The sliding surfaces must be clean
and free of nicks, burrs or scratches. If damaged,
replace the roll cage assembly.
15. Inspect both output hub assemblies. Inspect the
bearings and replace if needed.
16. Clean and inspect all remaining front gearcase
components. Check each for excessive wear or
damage.
