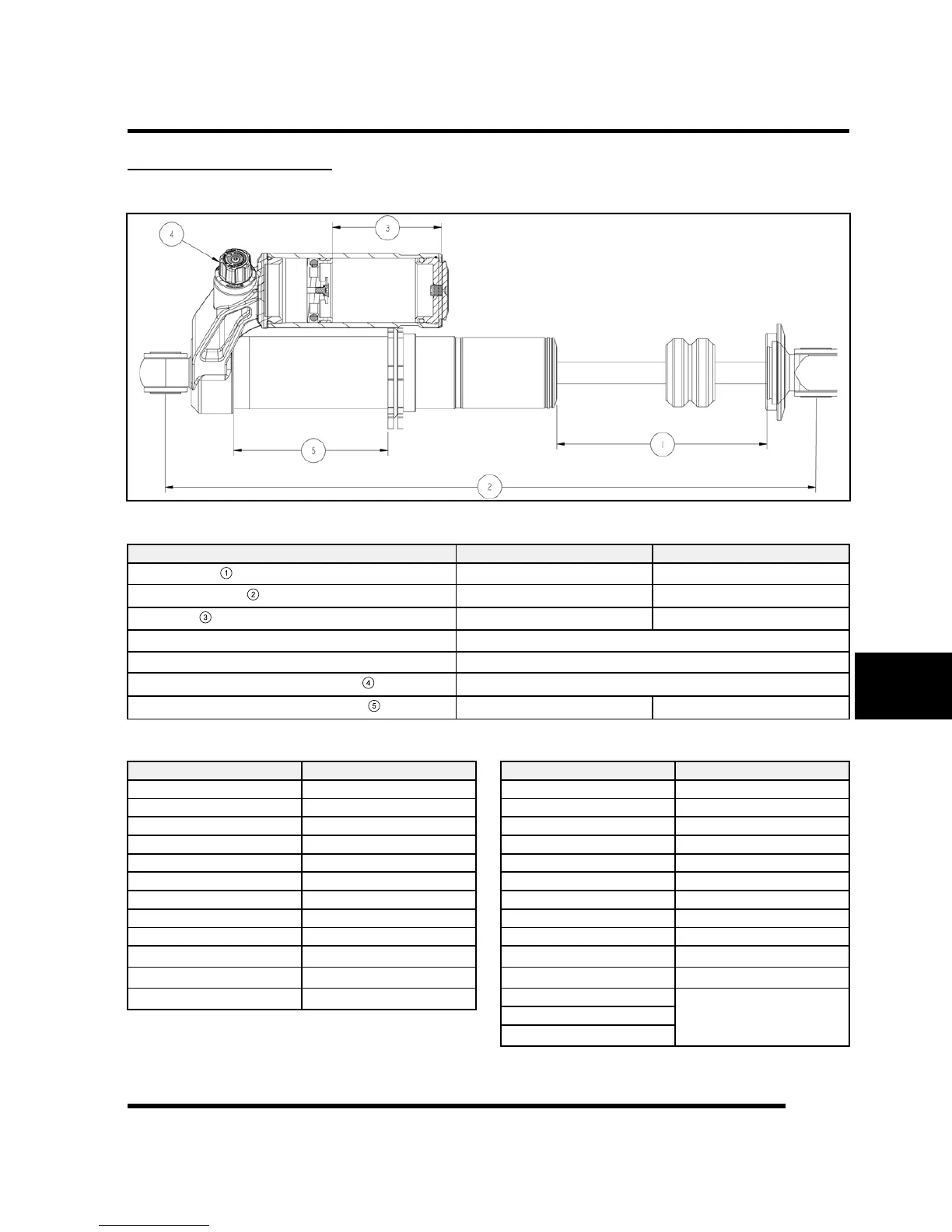

FOX SHOCK SERVICE
Shock Specifications (FOX)
XC model
FRONT
REAR
Shock Travel
1
6.02″ (15.29 cm) 6.42″ (16.31 cm)
Extended Length
2
18.62″ (47.29 cm) 19.47″ (49.45 cm)
IFP Depth
3
3.13″ (7.95 cm) 3.13″ (7.95 cm)
Nitrogen Pressure
100 PSI 100 PSI (690 kPa)
Gas Shock Oil 2874124 (qt)
Compression Adjustment (factory)
4
12 clicks CCW from full stop
Spring Adjustment Setting (factory)
5
4.41″ (11.20 cm) 0.56″ (1.42 cm)
XC Front Shock Valving
COMPRESSION REBOUND
1.600 x .008 DB 1.425 x .008
1.600 x .008 1.425 x .008
1.600 x .008 1.425 x .008
1.600 x .008 0.800 x .006
0.750 x .008 1.425 x .010
1.600 x .012 1.350 x .010
1.425 x .012 1.250 x .010
1.350 x .012 1.100 x .010
1.250 x .012 0.950 x .010
1.100 x .012
1.230 x .082 Top Out
0.950 x .012 0.750 x .100 Back Up
1.570 x .128 Top Out
XC Rear Shock Valving
COMPRESSION REBOUND
1.600 x .008 DB 1.425 x .008
1.600 x .008 1.425 x .008
1.600 x .008 1.425 x .008
1.600 x .008 0.950 x .006
1.600 x .008 1.425 x .012
1.600 x .008 1.425 x .012
0.900 x .008 1.425 x .012
1.600 x .012 1.425 x .012
1.425 x .012 1.250 x .015
1.350 x .012
1.230 x .082 Top Out
1.250 x .012 0.750 x .100 Back Up
1.100 x .012
0.900 x .012
1.570 x .128 Top Out
