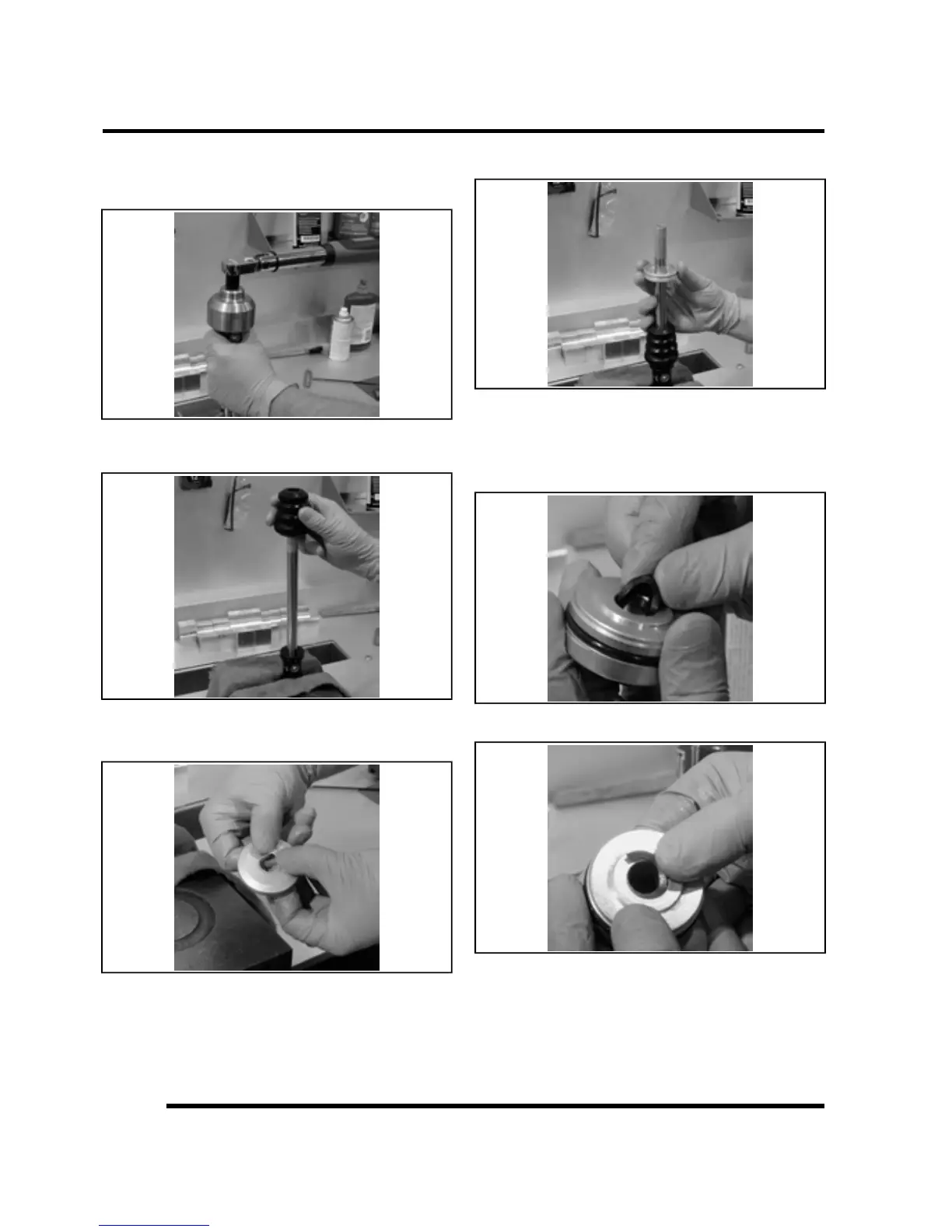

15.Place shaft back in clamp blocks, apply loctite®
primer to eyelet, and Torque eyelet to shock shaft.
See specifications.
16.Reverse shock shaft in clamp blocks and install air
side shaft spacers (if equipped) and jounce bumper.
17.Install wiper seal in body cap (if equipped).
18.Apply thin layer of shock oil to seal.
19.Install body cap.
There are two different sides on the U-Cup seal.
When seal is installed, energizing side should be
facing internal bearing.
20.Install U-Cup seal.
21.Install back-up washer.
