9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

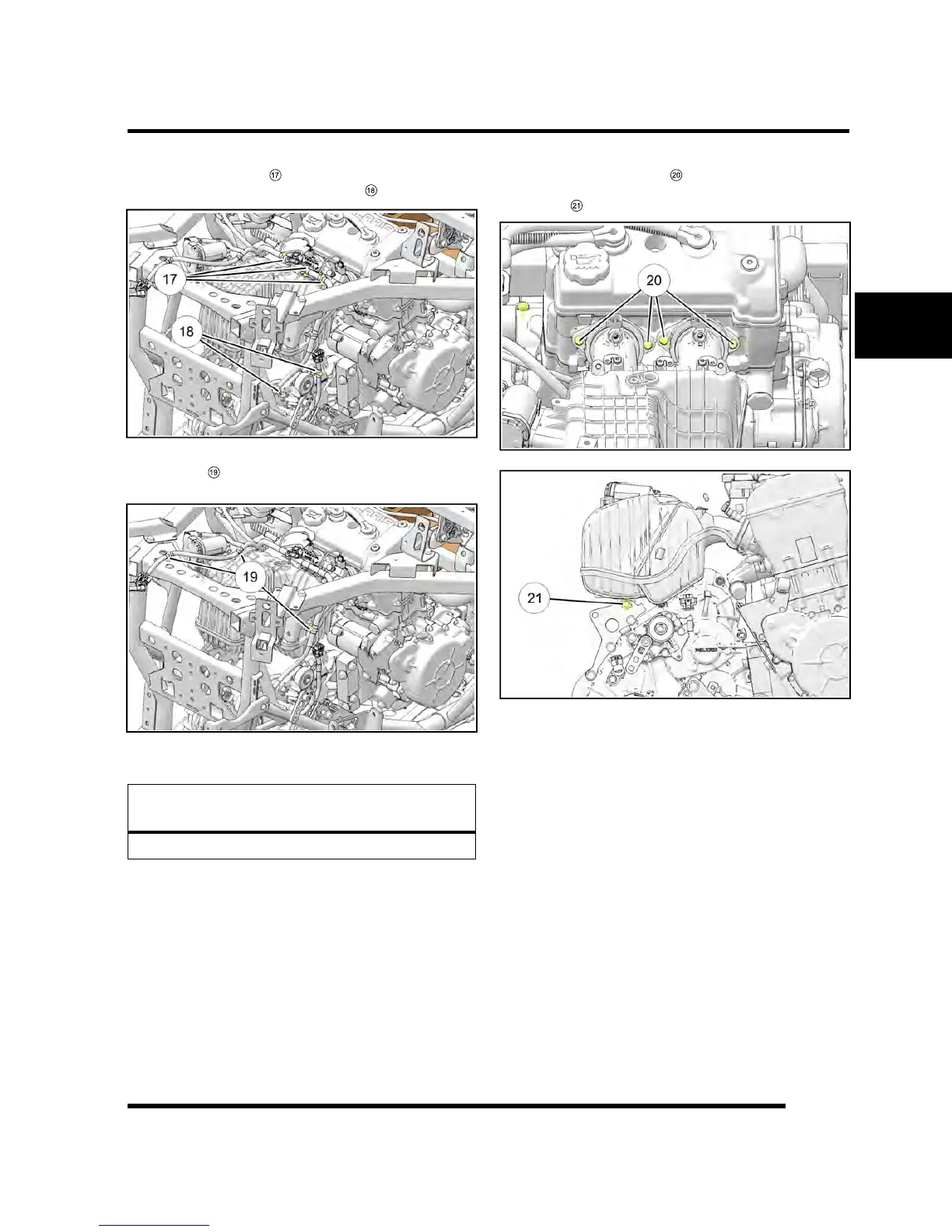

16.Remove the three fasteners retaining the harness to
the intake manifold
17
and two fasteners retaining the
harness by the transmission switch
18
.
17.Remove the three harness clamps on the intake
manifold
19
. Move the main harness out of the way
towards the drivers seat.
18.Disconnect the two fuel rail mounting bolts and move
the fuel rail off to the drivers side.
CAUTION
Be careful not to pinch or kink the fuel rail
19.Remove the four fasteners retaining the intake
manifold to the engine
20
and the one retaining the
bottom of the intake manifold to the transmission
bracket
21
.
20.Remove the PVT outer cover.
21.Remove the belt and driven clutch.
22.Remove the drive clutch from the vehicle using the
correct drive clutch puller (PN 2872085).
