3. Use the appropriate shock body holding tool to
properly secure the shock assembly into a vice for
service.
Front Shock Body Holding Tool: PU-50979
Rear Shock Body Holding Tool: PU-50938

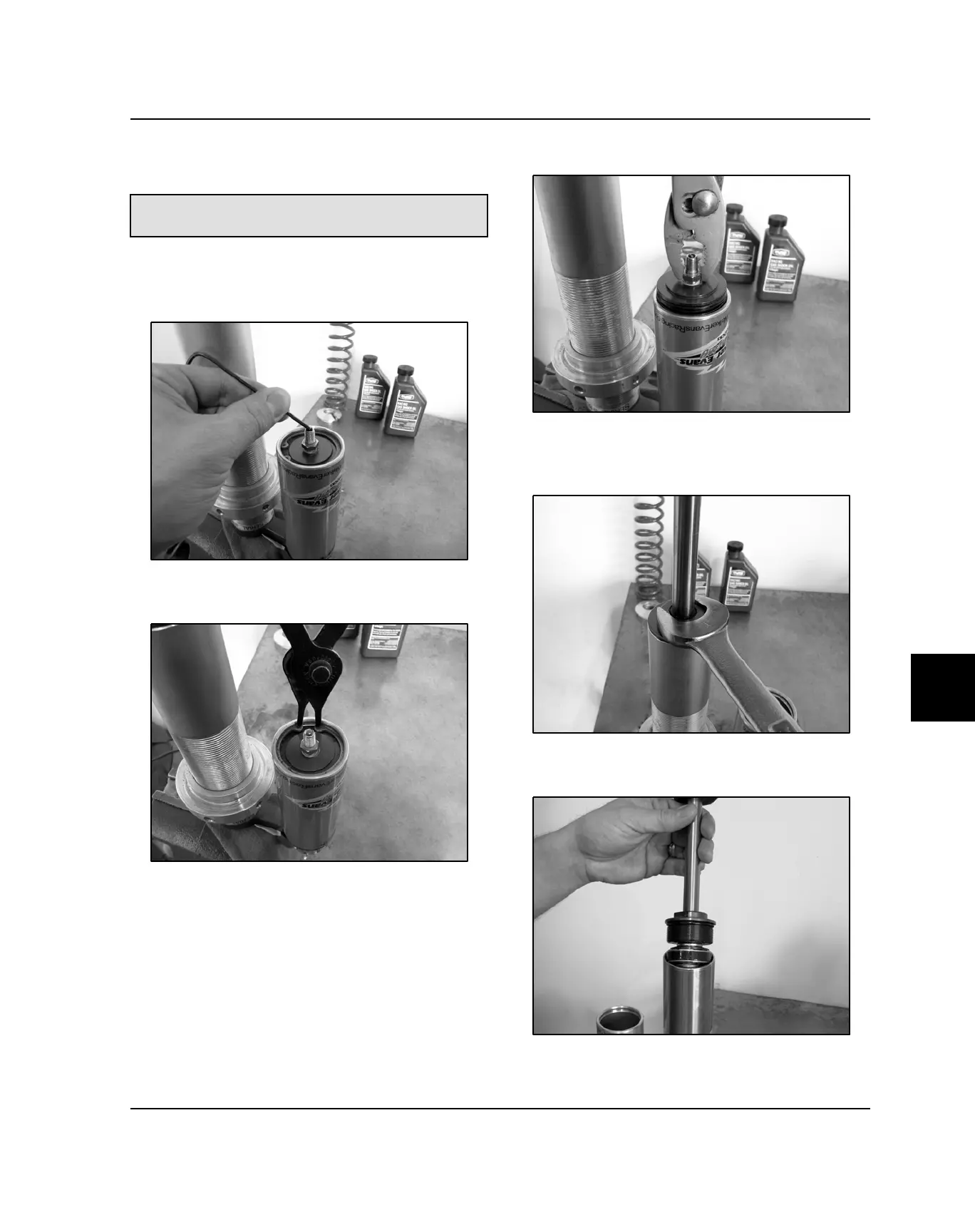

4. Remove the valve cap from the valve fitting on the
top of the reservoir.
5. Carefully depressurize the shock.
6. Using a snap ring pliers, remove the retaining ring
from the reservoir.
7. Carefully remove the cap from the reservoir body.
8. Using a 1" open-end wrench or adjustable wrench,
loosen and remove the bearing cap from the shock
body.
9. Slowly lift up and remove the shock rod assembly
from the shock body.
