9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
11.53
FUSES / RELAYS

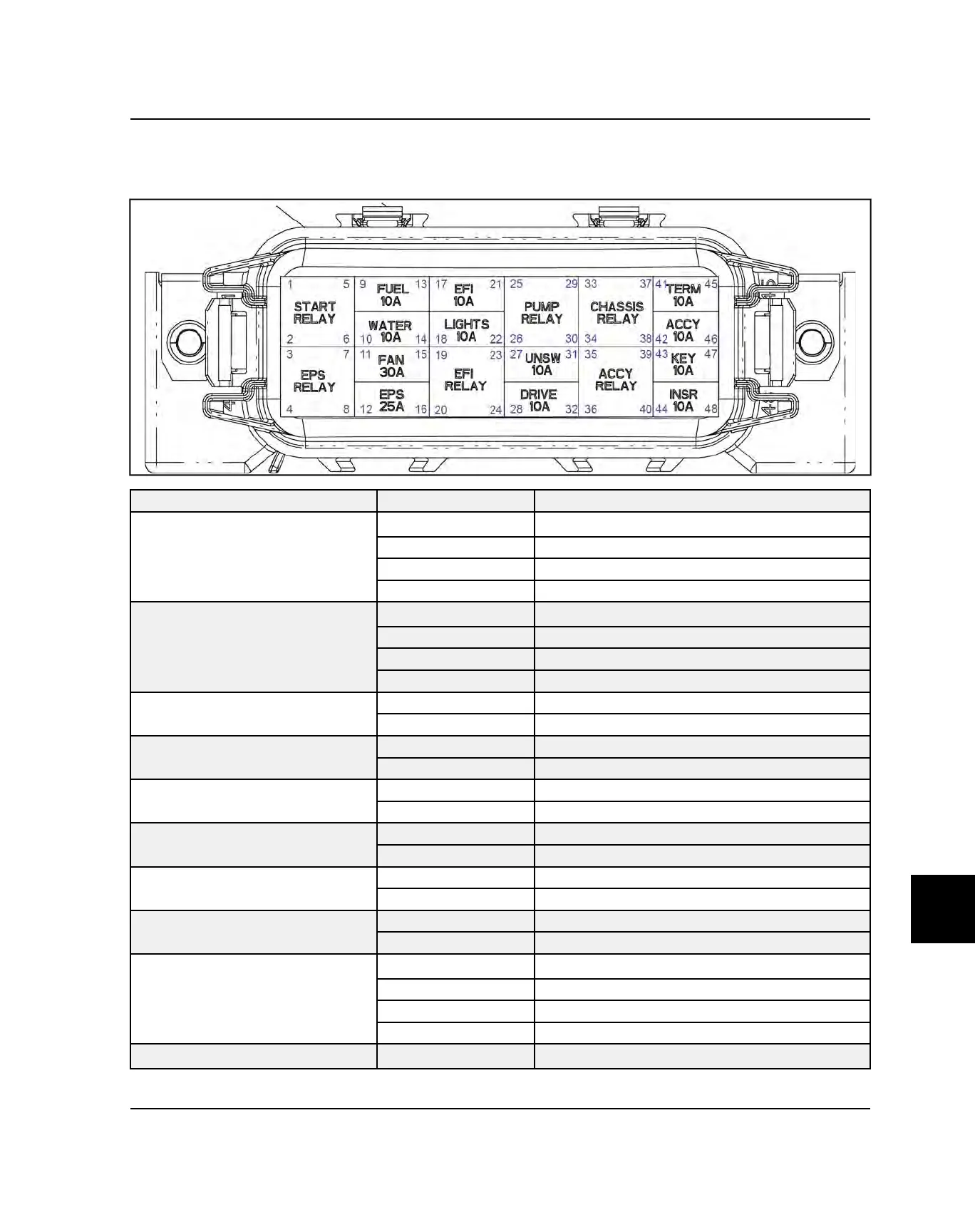

FUSE / RELAY CENTER (ALL EXCEPT DYNAMIX)
CIRCUIT PIN FUNCTION
Start Relay
1
Coil High
2
Power In
5
Power Out
6 Coil Low
EPS Relay
3
Coil High
4 Power In
7 Power Out
8 Coil Low
Fuel 10A Fuse
9 Power In
13 Power Out
Water 10A Fuse
10 Power In
14 Power Out
Fan 30A Fuse
11 Power In
15 Power Out
EPS 25A Fuse
12
Power In
16 Power Out
EFI 10A Fuse
17
Power In
21 Power Out
Lights 10A Fuse
18 Power In
22 Power Out
EFI Relay
19
Coil High
20 Power In
23 Power Out
24 Coil Low
Pump Relay
25
Coil High
ELECTRICAL
