Placing Polycom Microphones to Send Stereo from Your Site

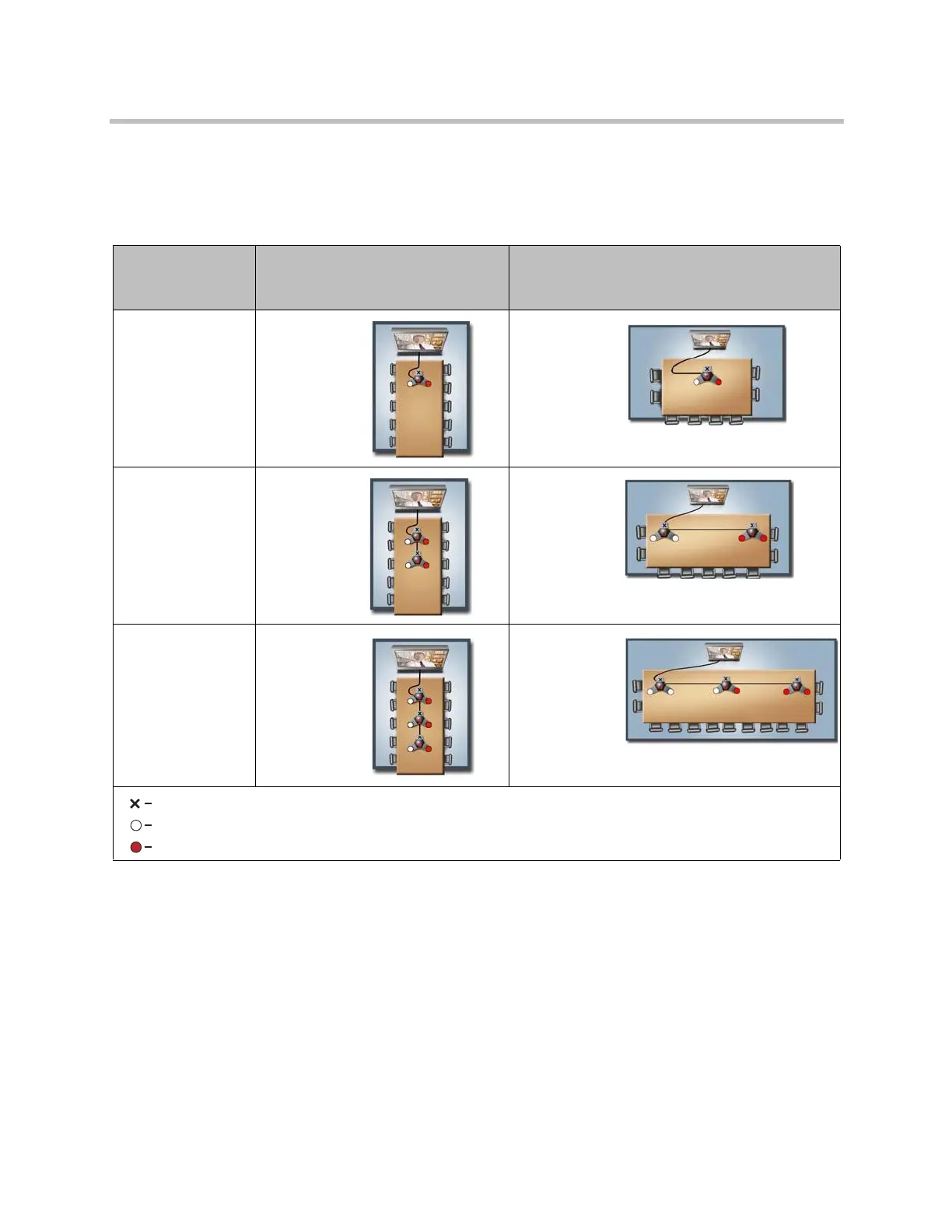

The following illustrations show microphone placement examples for
different room layouts.
Number of
Microphones with
Stereo Enabled
Long Table Wide Table
One Mic 1 set to
Left+Right
Mic 1 set to
Left+Right
Two Mic 1 set to
Left+Right
Mic 2 set to
Left+Right
Mic 1 set to
Left
Mic 2 set to
Right
Three Mic 1 set to
Left+Right
Mic 2 set to
Left+Right
Mic 3 set to
Left+Right
Mic 1 set to
Left
Mic 2 set to
Left+Right
Mic 3 set to
Right
Not Used
Left Channel
Right Channel
