Polycom HDX 7000 Series

Administrator’s Guide for Polycom HDX Systems
A–2 Polycom, Inc.
Polycom HDX 9004

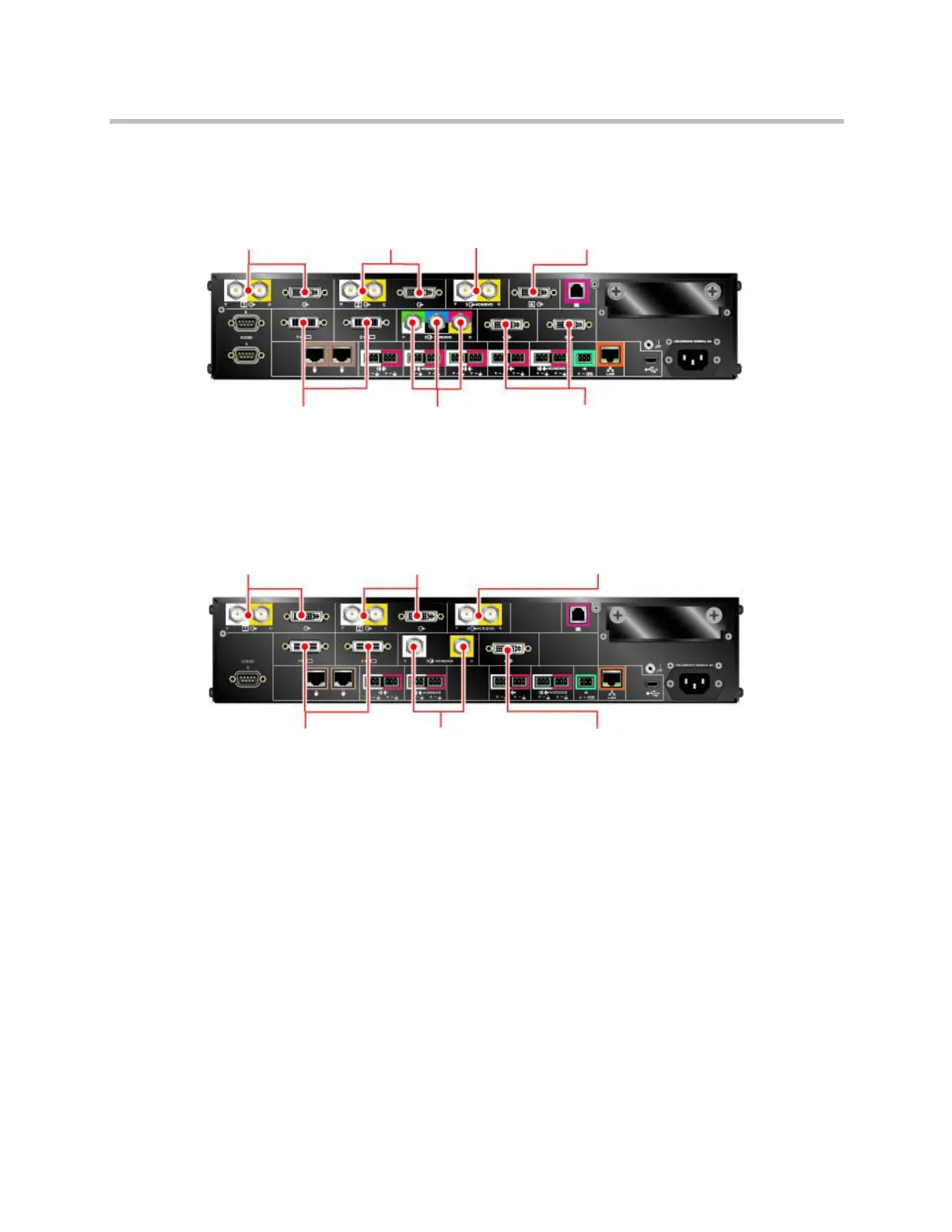

Polycom HDX 9001 and Polycom HDX 9002
Video Output 1:
BNC and DVI for
the main monitor
Video Output 2:
BNC and DVI for the
second monitor
Video Output 4: DVI
for content display
Video Output 3: BNC
for recording calls
to
VCR/DVD
Video Inputs 1 and 2:
HDCI for camera 1
and camera 2
Video Input 3: BNC for
VCR/DVD to play
content into calls
Video Inputs 4 and 5: DVI
for playing content from a
computer into calls
Video Output 1: BNC and
DVI for the main monitor
Video Input 4: DVI for
playing content from a
computer into calls
Video Output 2: BNC and
DVI for the second monitor
Video Output 3: BNC for
recording calls to VCR/DVD
Video Inputs 1 and 2:
HDCI for camera 1 and
camera 2
Video Input 3: BNC for
VCR/DVD to play content
into calls
