Polycom HDX 7000 Series User Manual

Administrator’s Guide for Polycom HDX Systems
A–10 Polycom, Inc.

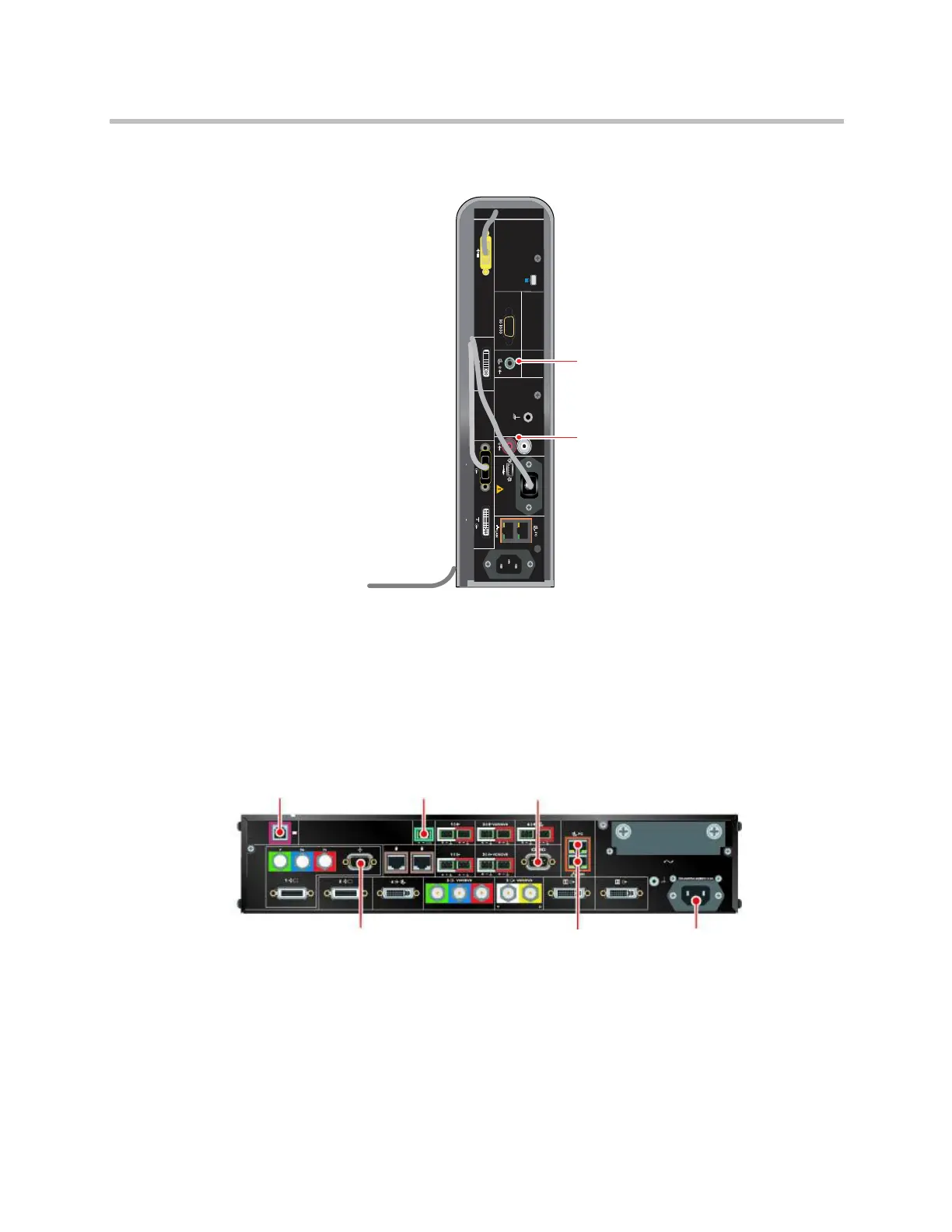

Polycom HDX 4500 System
Network/Power/Control Inputs and Outputs
Polycom HDX 9006
100-240v~ 50/60Hz 2.3A OUTLET FOR DISPLAY ONLY
100-240v AC 50/60Hz 2.3A
Audio Input: 3.5 mm for
content audio
Audio Output: RCA for
external speaker system
RS-232 serial port for
RS-232 devices
Analog phone port: For
analog phone calls
IR: Phoenix for IR
receiver
LAN port: For IP or SIP calls,
People+Content IP, and
Polycom HDX Web Interface
Power connector:
For power supply
RS-232 serial port for control of
camera 1 connected to BNC
