Polycom HDX 7000 Series

Polycom, Inc. A–1
A
System Back Panel Views

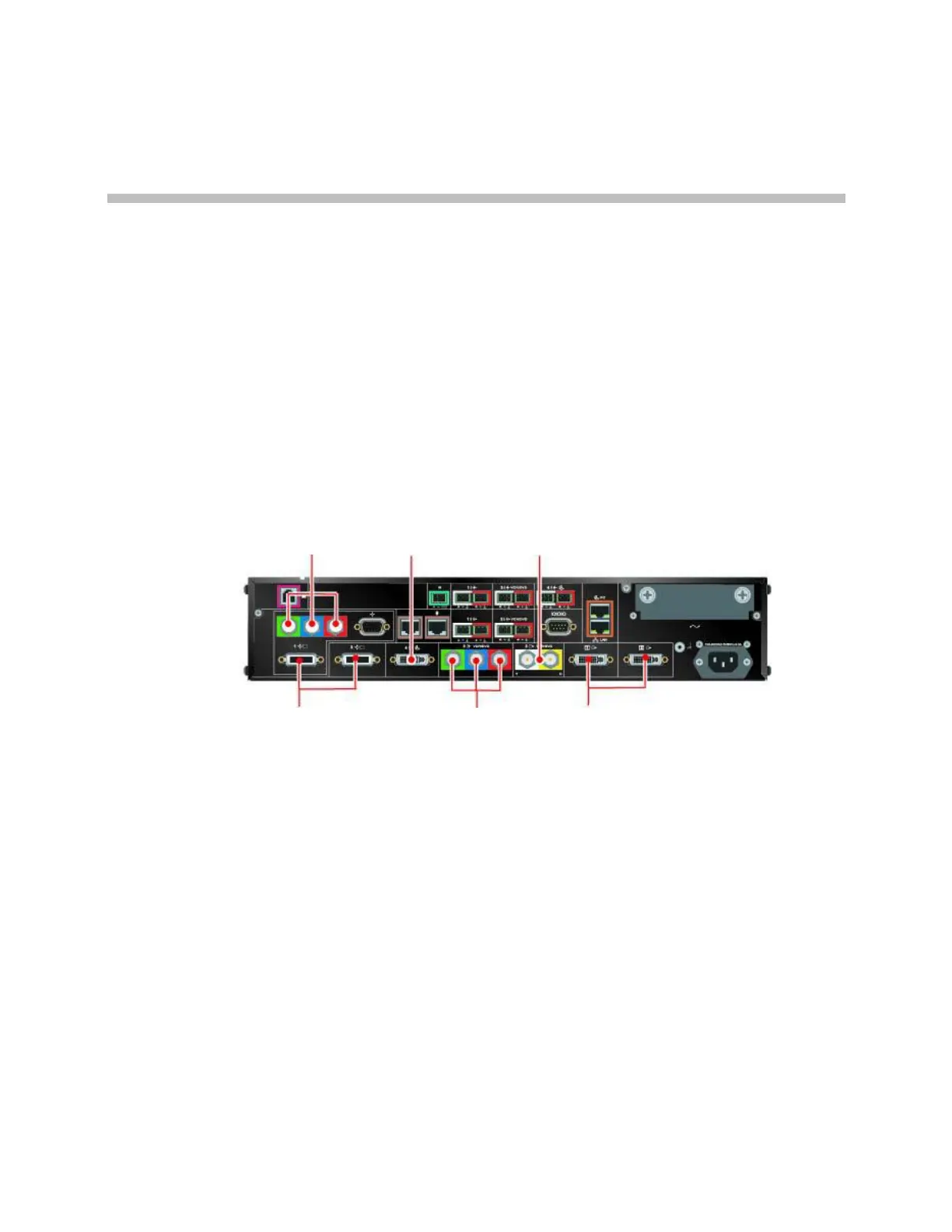

Video Inputs and Outputs
Polycom HDX 9006
Video Input 4: DVI for
content display
Video Output 3: BNC for
recording calls
to VCR/DVD
Video Inputs 1 and 2:
HDCI for camera 1
and camera 2
Video Input 3: BNC for
VCR/DVD to play
content into calls
Video Outputs1 and 2: DVI for the
main and second monitor
Optional video Input:
BNC for camera 1
