Administrator’s Guide for Polycom HDX Systems
1–16 Polycom, Inc.
Polycom Touch Control Indicator Light
When the Polycom Touch Control is on, the Home button is lit.

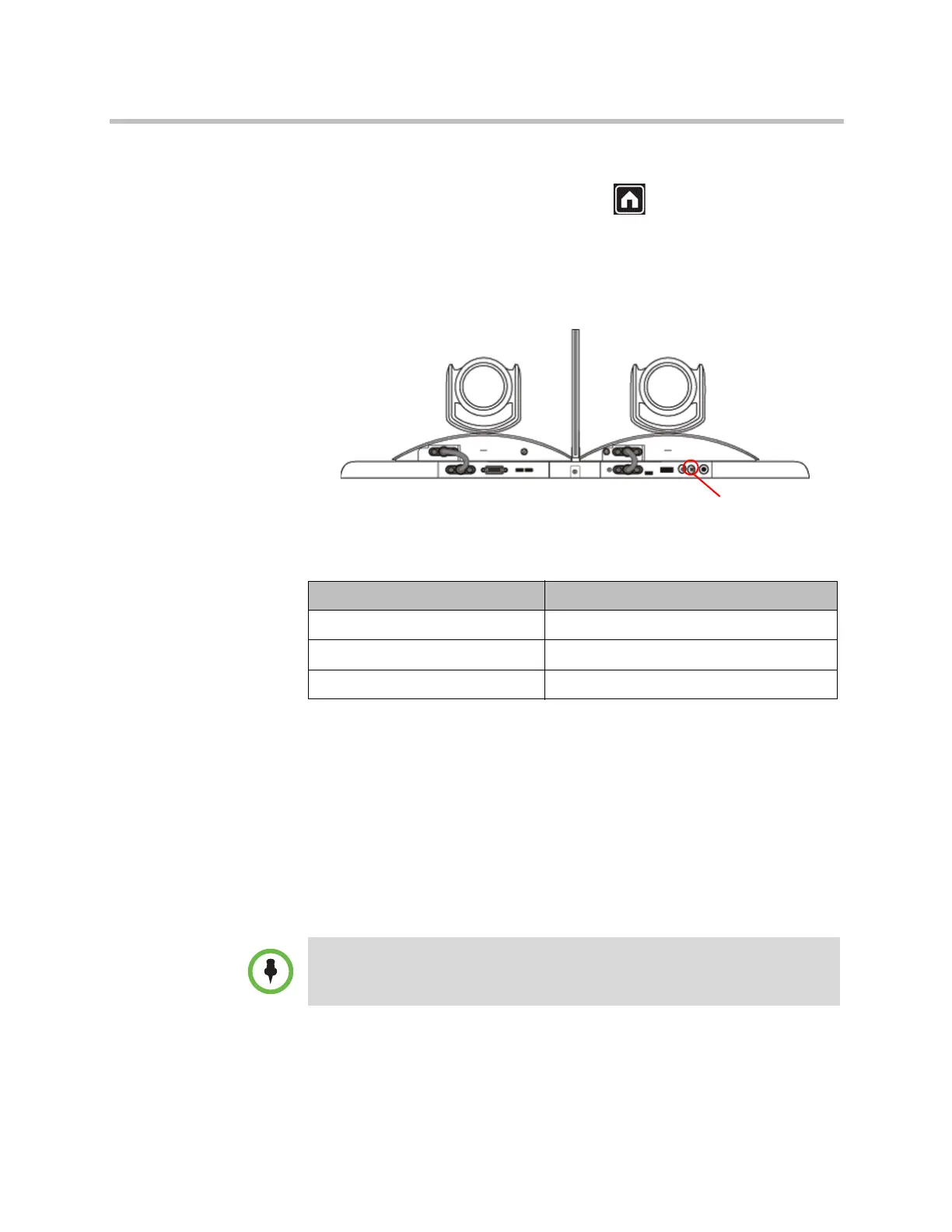

Polycom EagleEye Director Indicator Light
The following figure shows the location of the power indicator light on the
back of the Polycom EagleEye Director.
This indicator light provides the following information:
Configuring the Polycom HDX System
Setup Wizard
When you power on your system for the first time, the setup wizard detects
the system’s IP and ISDN connections and leads you through the minimum
configuration steps required to place a call.
Indicator Light Status
Steady blue light Cameras are ready.
Steady red light Cameras are powering on.
Blinking red light Factory restore on the cameras is starting.
If you cannot see the user interface on the system’s monitor, refer to Changing the
Video Format on page 12-7.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents

Other manuals for Polycom HDX 7000 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Polycom HDX 7000 Series and is the answer not in the manual?

Polycom HDX 7000 Series Specifications

General IconGeneral
Content SharingH.239, People+Content
MicrophonePolycom HDX Microphone Array
Network ProtocolsH.323, SIP
Data StandardsH.239
Video Outputs2 x DVI-I
Operating Temperature0°C to 40°C (32°F to 104°F)
Video StandardsH.264, H.263, H.261
Video ResolutionUp to 1920 x 1080
Audio StandardsG.711, G.722.1, G.729A
CameraPolycom EagleEye Camera
ConnectivityEthernet, ISDN
Video InputsDVI-I
Audio InputsRCA
Audio OutputsRCA
Network Interfaces10/100/1000 Ethernet
Power Supply100-240V AC, 50/60Hz
