Video and Camera Cables

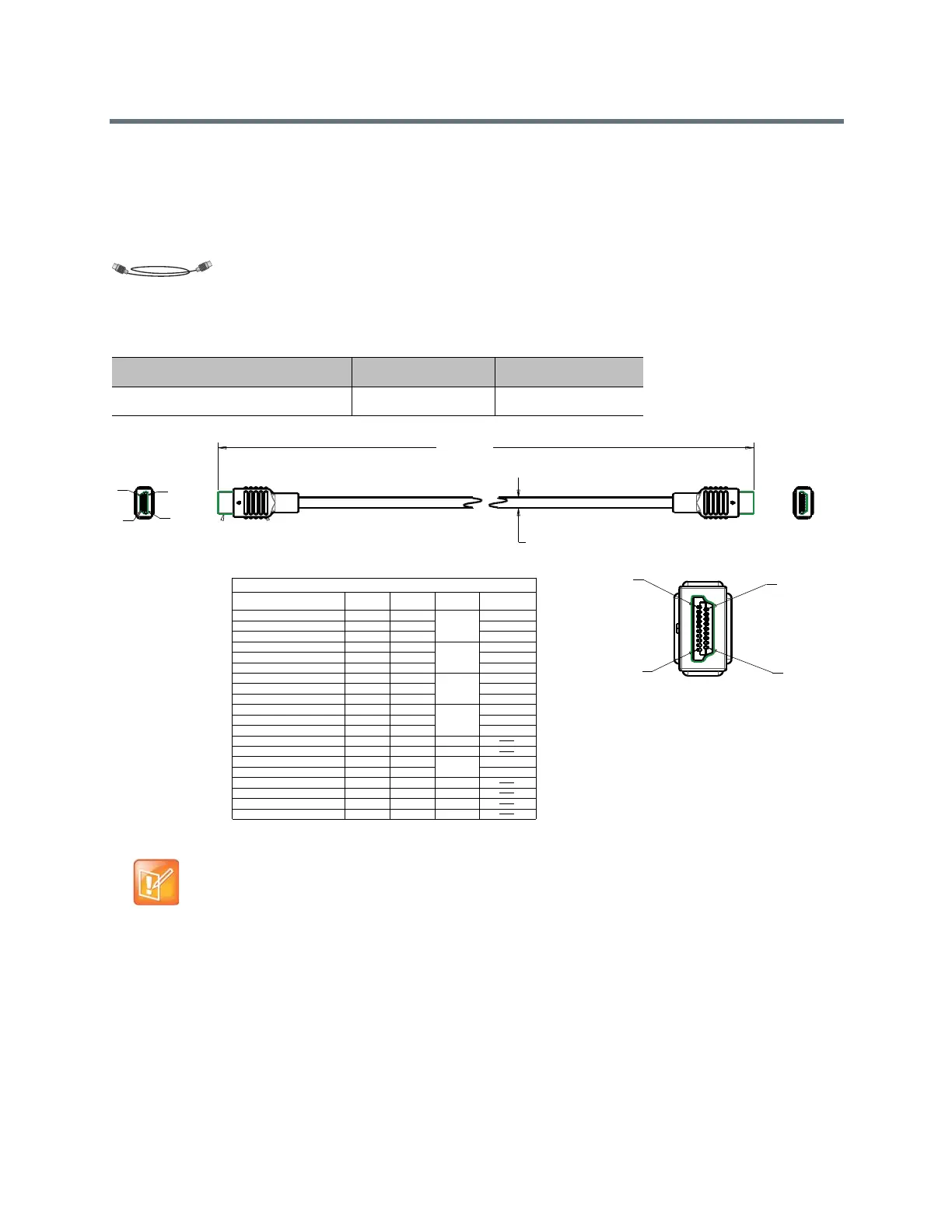

HDMI Monitor Cable
This cable connects the RealPresence Group system HDMI output to an HDMI monitor. It is HDMI to male
HDMI.
Length Part Number RoHS Compliant
6 ft (1.8 m) 2457-28808-004 Yes
Note: Drawings and part numbers are provided for reference only. Polycom claims no responsibility or
liability for the quality, performance, or reliability of cables based on these reference drawings, other
than cables provided by Polycom. Contact your Polycom distributor or Polycom Custom/Vertical
Products to order cables that meet the appropriate manufacturing tolerances, quality, and performance
parameters for your application.
1829.5±50
7.0 REF
SEE NOTE 7
P1
P2
2
18
1
19
DETAIL A
SCALE 3.000
1
2
18
19
WIRING LIST
SIGNAL P1 P2
CABLE
UNIT
CONDUCTOR
TMDS Data2+ 1 1
D1
TIP
TMDS Data2 Shield 2 2 DRAIN
TMDS Data2-
3
3
RING
TMDS Data1+ 4 4
D2
TIP
TMDS Data1 Shield 5 5 DRAIN
TMDS Data1-
6
6 RING
TMDS Data0+ 7 7
D3
TIP
TMDS Data0 Shield 8 8 DRAIN
TMDS Data0- 9 9 RING
TMDS Clock+ 10 10
D4
TIP
TMDS Clock Shield 11 11 DRAIN
TMDS Clock- 12 12 RING
CEC 13 13 E1
RESERVED 14 14 E2
SCL 15 15
F
TIP
SDA 16 16 RING
DDC/CEC GROUND 17 17 E3
+5 Volts 18 18 E4
Hot Plug Detect 19 19 E5
Cable Shield SHELL SHELL B
