Cables
Polycom, Inc. 93

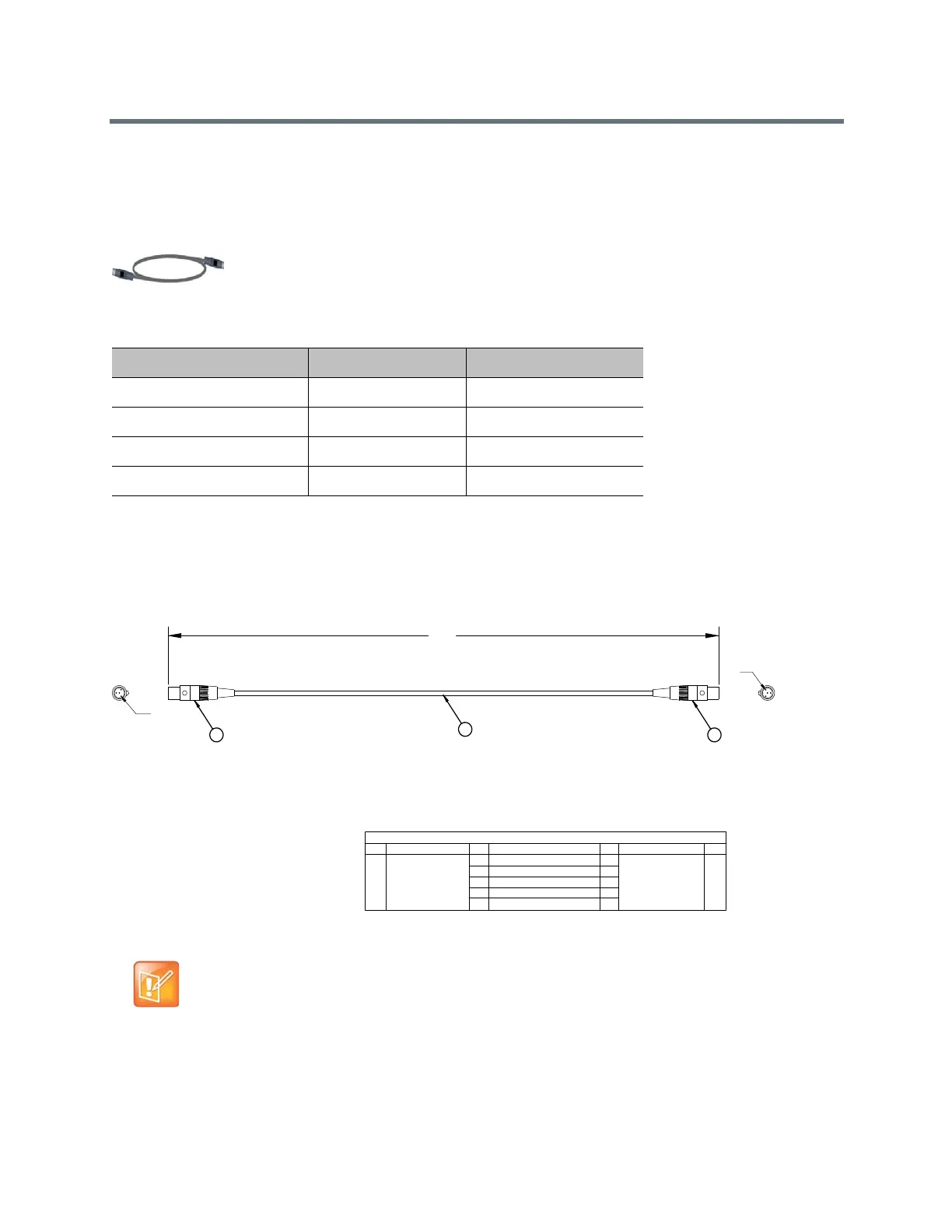

Polycom Ceiling Microphone Array Drop Cable (4-to-4
Pin)
Extended length drop cable for connecting Spherical Ceiling Microphone Array element to an electronics
interface. It is 4-pin mini-DIN to 4-pin mini-DIN.
Length Part Number RoHS Compliant
6 ft (1.8m) 2457-24701-001 Yes
6 ft (1.8m) 2457-24701-003 Yes
2 ft (0.6m) 2457-23986-001 Yes
2 ft (0.6m) 2457-23986-002 Yes
Note: Drawings and part numbers are provided for reference only. Polycom claims no responsibility or
liability for the quality, performance, or reliability of cables based on these reference drawings, other
than cables provided by Polycom. Contact your Polycom distributor or Polycom Custom/Vertical
Products to order cables that meet the appropriate manufacturing tolerances, quality, and performance
parameters for your application.
609.6
P-2
WIRE, 26 AWG, BLUE W/ WHITE STRIPE
WIRE, 26 AWG, WHITE W/ BLUE STRIPE
WIRE, 26 AWG, BLUE
WIRE, 26 AWG, WHITE
PIN
4
3
2
1
LABEL
CONNECTOR DESCRIPTION WIRE DESCRIPTION/COLOR LABEL
CONNECTOR DESCRIPTION
1
WIRING TABLE
PIN
4
3
2
1
TINI Q-C 4-PIN
XLR FEMALE PLUG
SWITCHCRAFT P/N TA4FLX
P-1
1
2
P-2
P-1
TINI Q-C 4-PIN
XLR FEMALE PLUG
SWITCHCRAFT P/N TA4FLX
PIN-1
PIN-1
DRAIN WIRE
SHIELD
SHIELD
[24.0 IN]
