Cables
Polycom, Inc. 95
Custom Cabling for Polycom Microphone Arrays
You can create custom-length cables for connecting a RealPresence Group Series system to a Polycom
Microphone Array or SoundStation IP 7000 phone.
Start with the microphone cable (part number 2457-23216-002) and cut off the P1 end. Using the following
wiring tables, create a custom cable from the microphone to a wall plate or other interfacing device. From
there, run a shielded CAT5 or better cable to the RealPresence Group Series system, terminating with a
shielded RJ-45 plug connector.
The length from the RealPresence Group Series system to the first Polycom Microphone Array or
SoundStation IP 7000 phone can be between 18 in. and 100 ft. (a RealPresence Group Series 700 system
allows two such connections). Polycom recommends you use shielded CAT5e cables for lengths greater
than 25 ft.
The maximum length between subsequent microphone arrays is 25 ft.

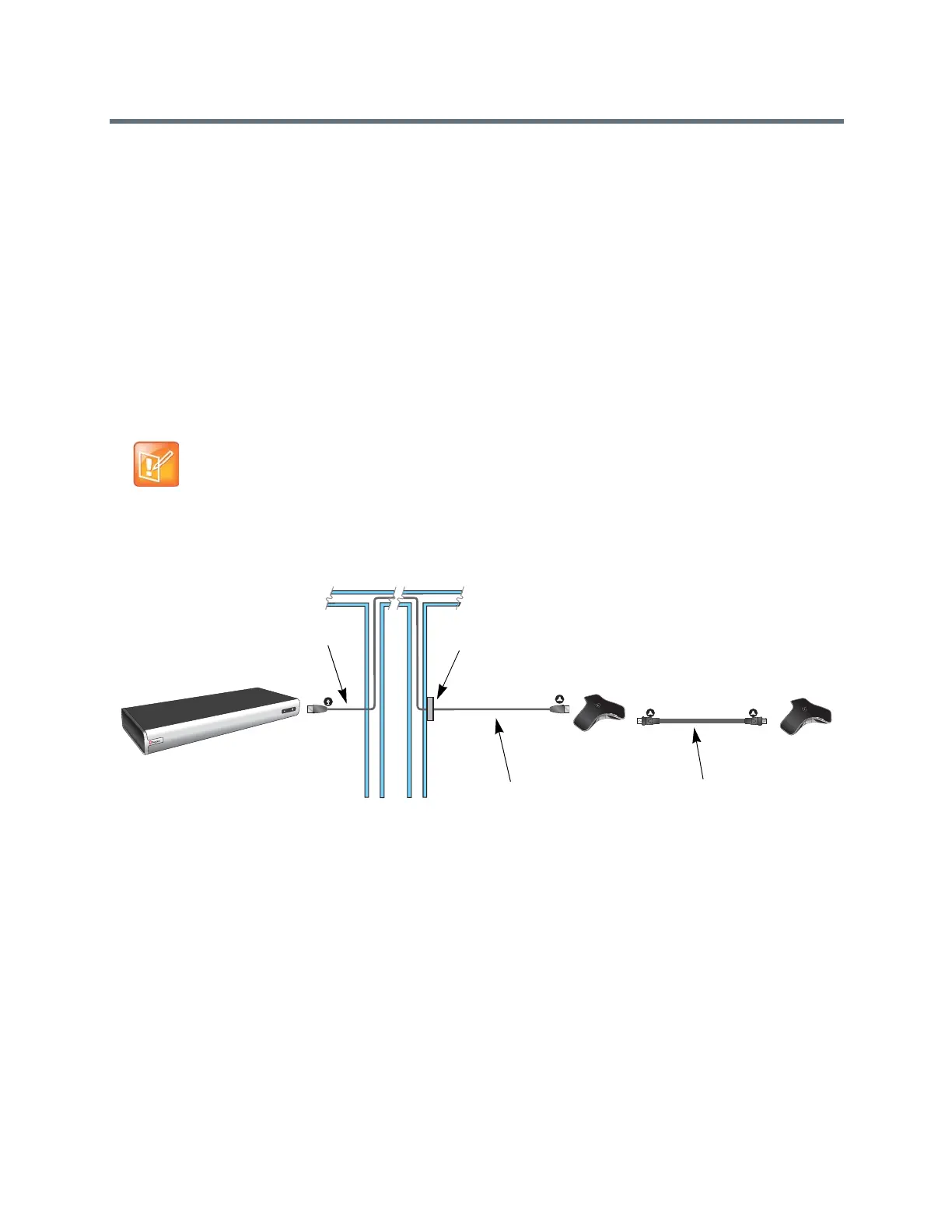

The following diagram shows an example of longer custom cabling from a RealPresence Group Series
system to a Polycom Microphone Array or SoundStation IP 7000 Phone.
.
Unshielded Conference Link Crossover Cables
The following diagram shows the typical unshielded Polycom Conference Link crossover cable. This cable
style is appropriate for lengths up to 25 ft.
Notice that pins 1 and 2 are mapped to pins 5 and 6, respectively, at the other end of the connector.
Note: When creating custom cables, make sure what you’re using meets local
building regulations.
Polycom RealPresence
Microphone Array Cable
RealPresence Group 500
Polycom Microphone
Cut and re-terminated
Polycom RealPresence
such as a wall plate
Interfacing device,
Microphone Array Cable
Array cable
To Next Page
