IRIG-B in

IRIG-B

I/O Module

Connecting Cable

(108006) Connects to

J5 on I/O Board

Connects to Mother

Board that has second

IRIG-B board

connected through the

front of unit

Power Supply

I/O if required

Knock-out

Panel

Remove existing

Adapter Modules

for access

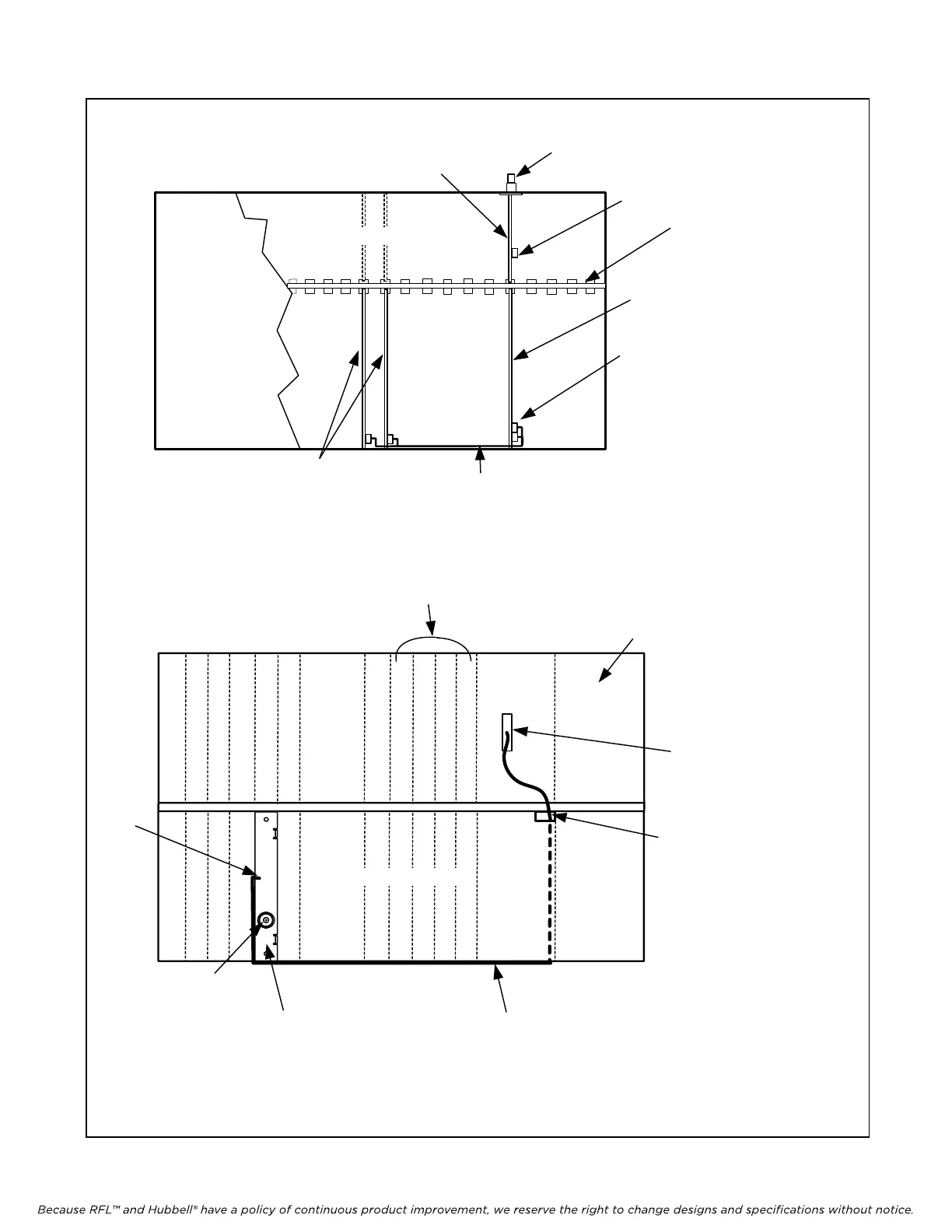

Stacked Chassis Configuration

Basic Set-up and connection to Transfer Trip (MTS) Modules

IRIG-B coax

connection

Front

Rear

J2 thru J6

Mother

Board

Transfer Trip

(MTS) Modules

IRIG-B

I/O Module

MTS IRIG-B

Module

Connecting Cable (108002-XX)

Plan view of IMUX

Rear view of IMUX
