Installation
1. Switch the machine off.
2. If the Ethernet & USB 2.0 card is installed in B3, remove it ( x 2).

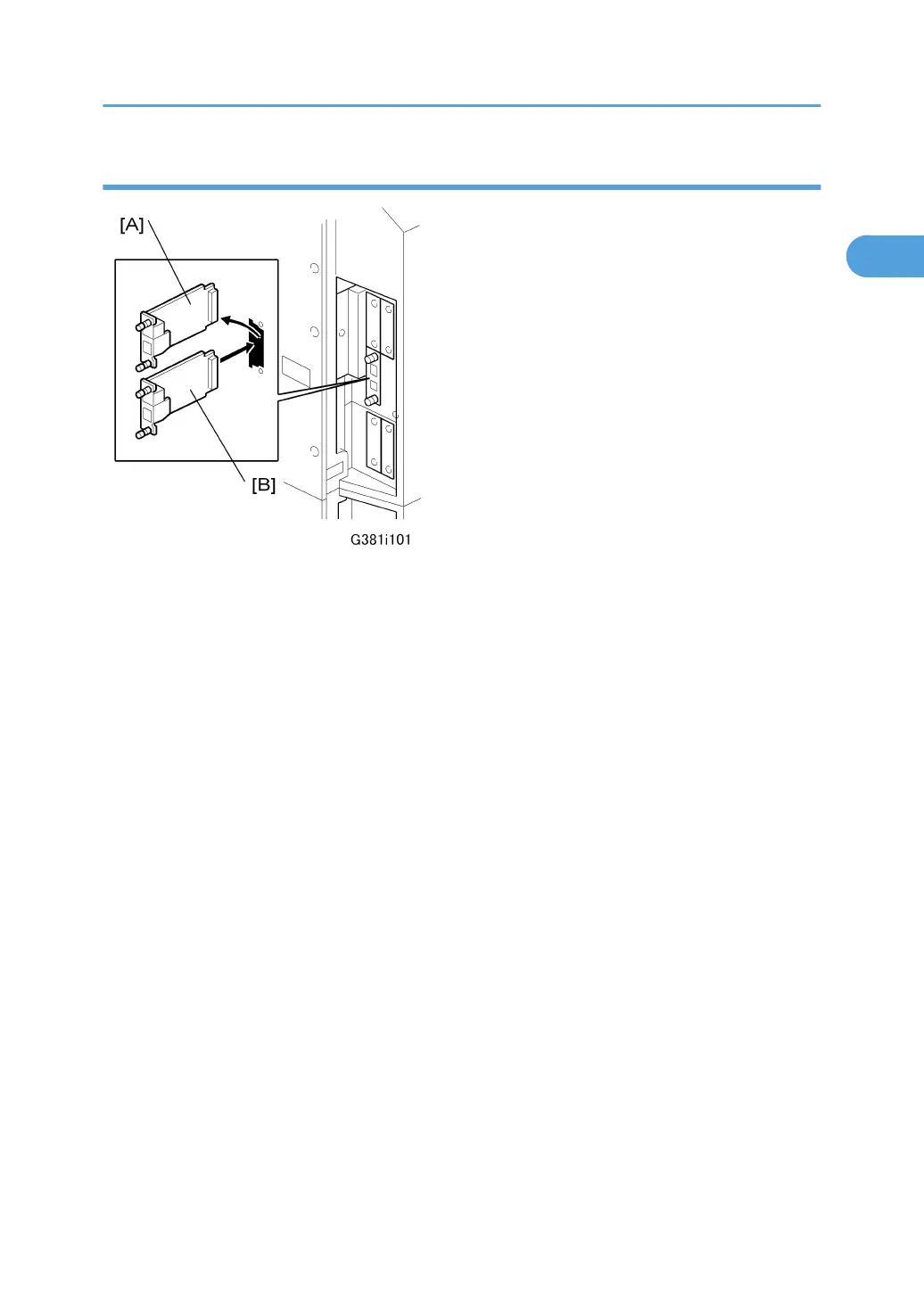

3. Remove the cover [A] of Slot B3 ( x 2).
4. Insert the Gigabit Ethernet Board [B] into Slot B3 and fasten it with the screws.
5. Print a configuration page to confirm that the machine recognizes the board:
Push [Menu] then select > List/Test Print> Config Page
MFP Options
117
