Fusing Exit Sensor and Exit Unit Entrance Sensors

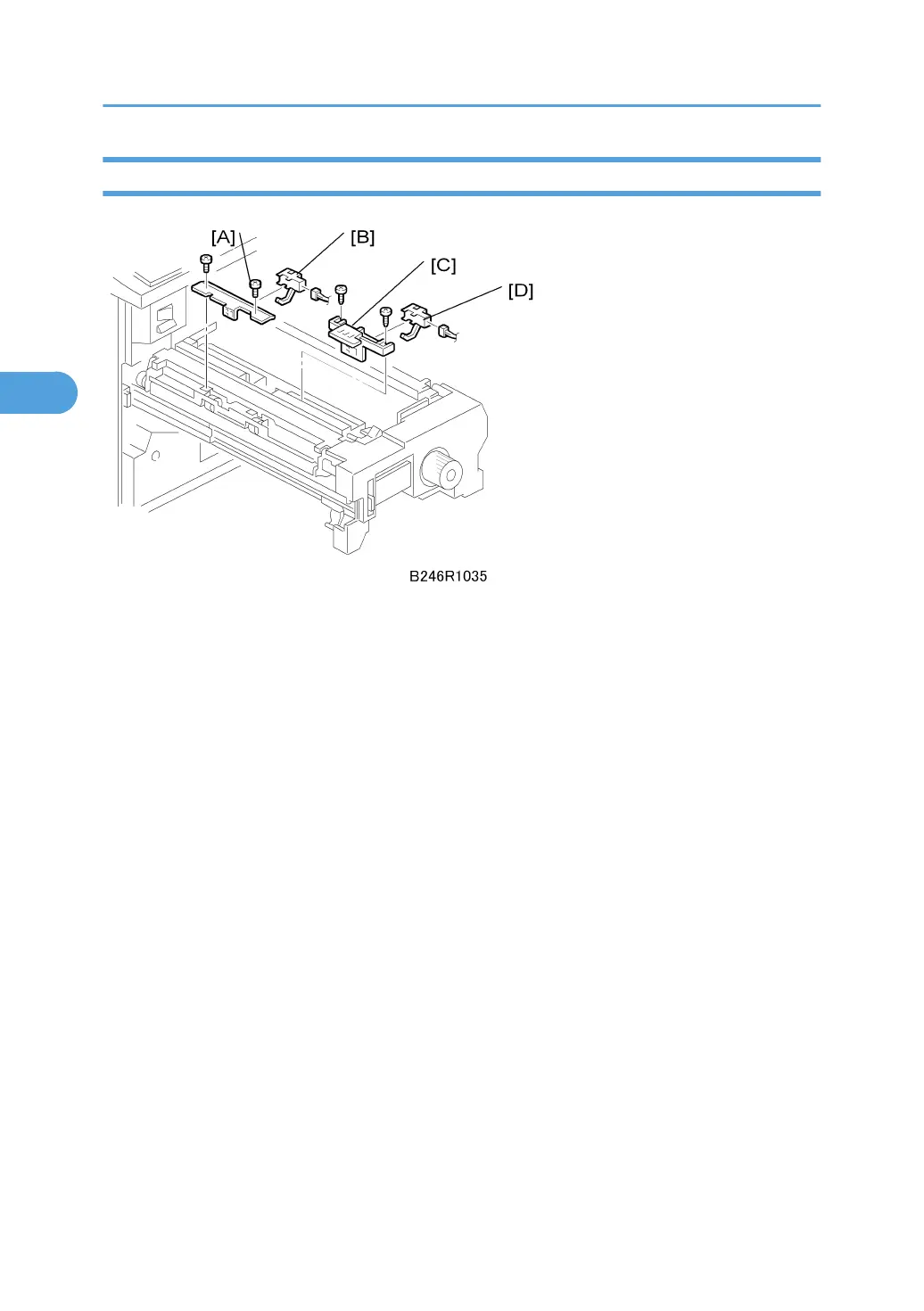

1. Open the front door and pull out the exit/inverter unit.
2. Fusing exit sensor bracket [A] ( x 2)
3. Fusing exit sensor [B] ( x 1)
4. Exit unit entrance sensor bracket [C] ( x 2)
5. Exit unit entrance sensor [D] ( x 1)
