Ricoh MT-P2 - Duplex Unit Side-To-Side Adjustment; Jogger Fence Adjustment

Duplex Unit Side-to-Side Adjustment

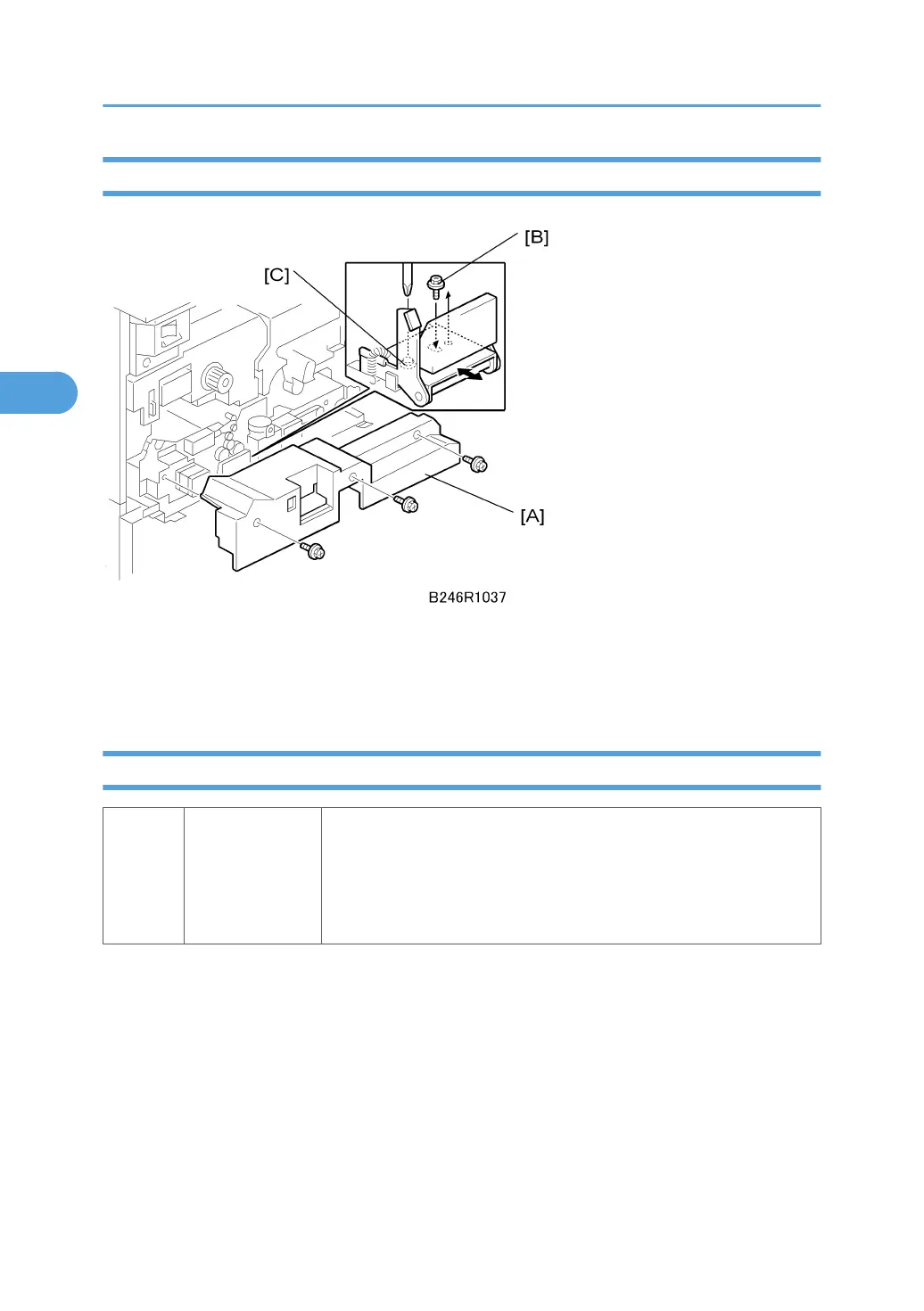

1. Remove the inner cover [A] ( x 3)
2. Move the handle lock screw [B] from the right to the center.
3. Loosen the left lock screw [C], then adjust the position of the duplex unit.
Jogger Fence Adjustment
SP1008
Duplex Fence Ad-
justment
Execute this SP to adjust the distance between the jogger fences, if re-
quired. A smaller value shortens the distance. If the fences are too far
apart, skewing may occur in the duplex tray. If the fences are too close,
the paper may be creased in the duplex unit. For details, see “5. Service
Tables”.
