Pick-off Pawls
Remove:
• OPC drum. See "OPC Drum Removal"

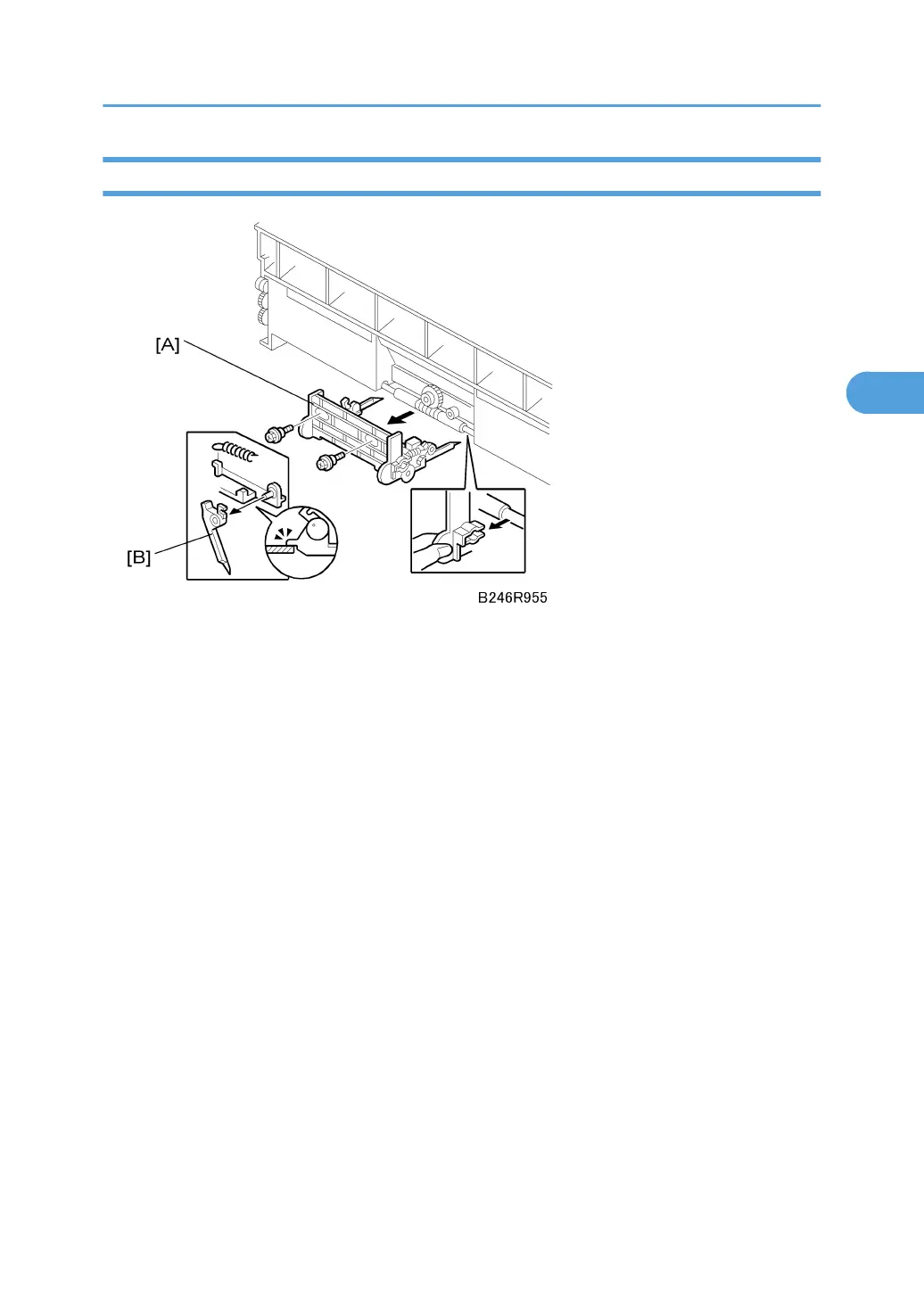

1. Pick-off pawl bracket [A] ( x 2)
2. Pick-off pawl [B] (spring x 1)
