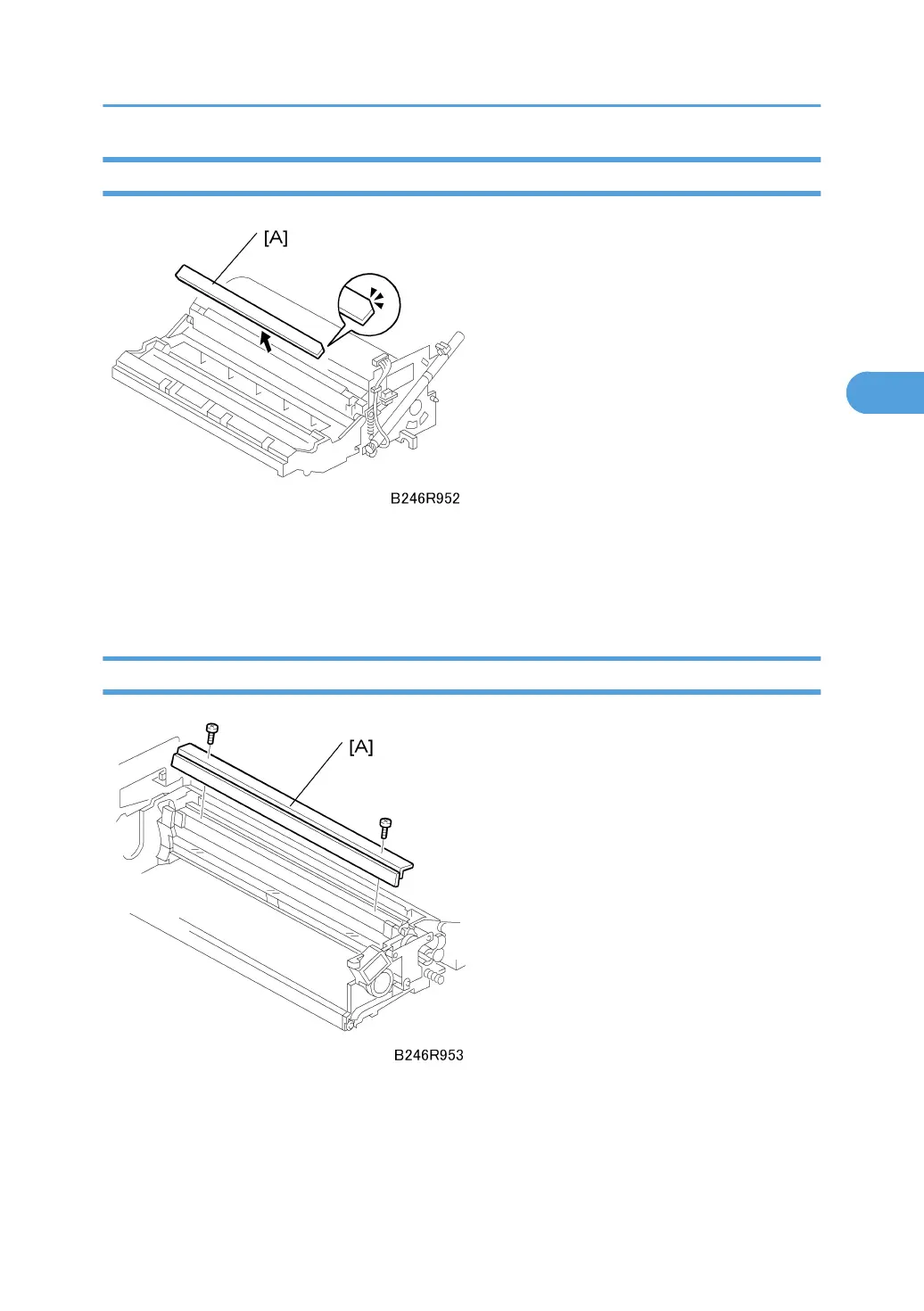

Cleaning Filter
Remove:
• OPC drum. See "OPC Drum Removal"
1. Cleaning filter [A]
Cleaning Blade
Remove:
• OPC drum. See "OPC Drum Removal"
1. Drum cleaning blade [A] ( x 2)
Drum Unit
155
3
