Ricoh MT-P2 - Fusing Unit Exit Sensor

Fusing Unit Exit Sensor
Remove:
• Fusing unit. See "Fusing Unit Removal"

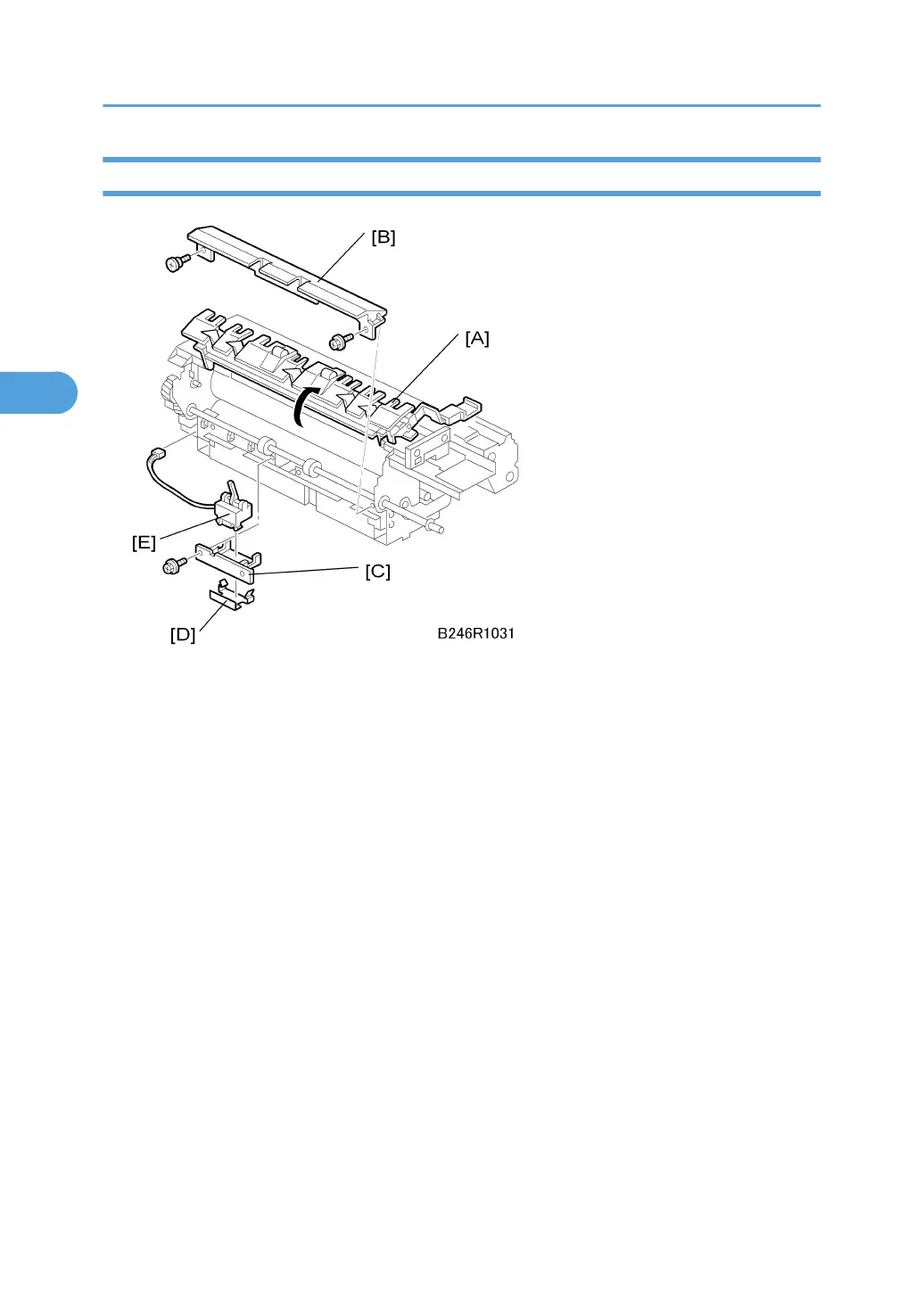

1. Open the hot roller stripper pawl unit [A]
2. Exit guide plate [B] ( x 2)
3. Fusing exit sensor holder [C] ( x 2)
4. Plate spring [D]
5. Fusing exit sensor [E] ( x 1)
