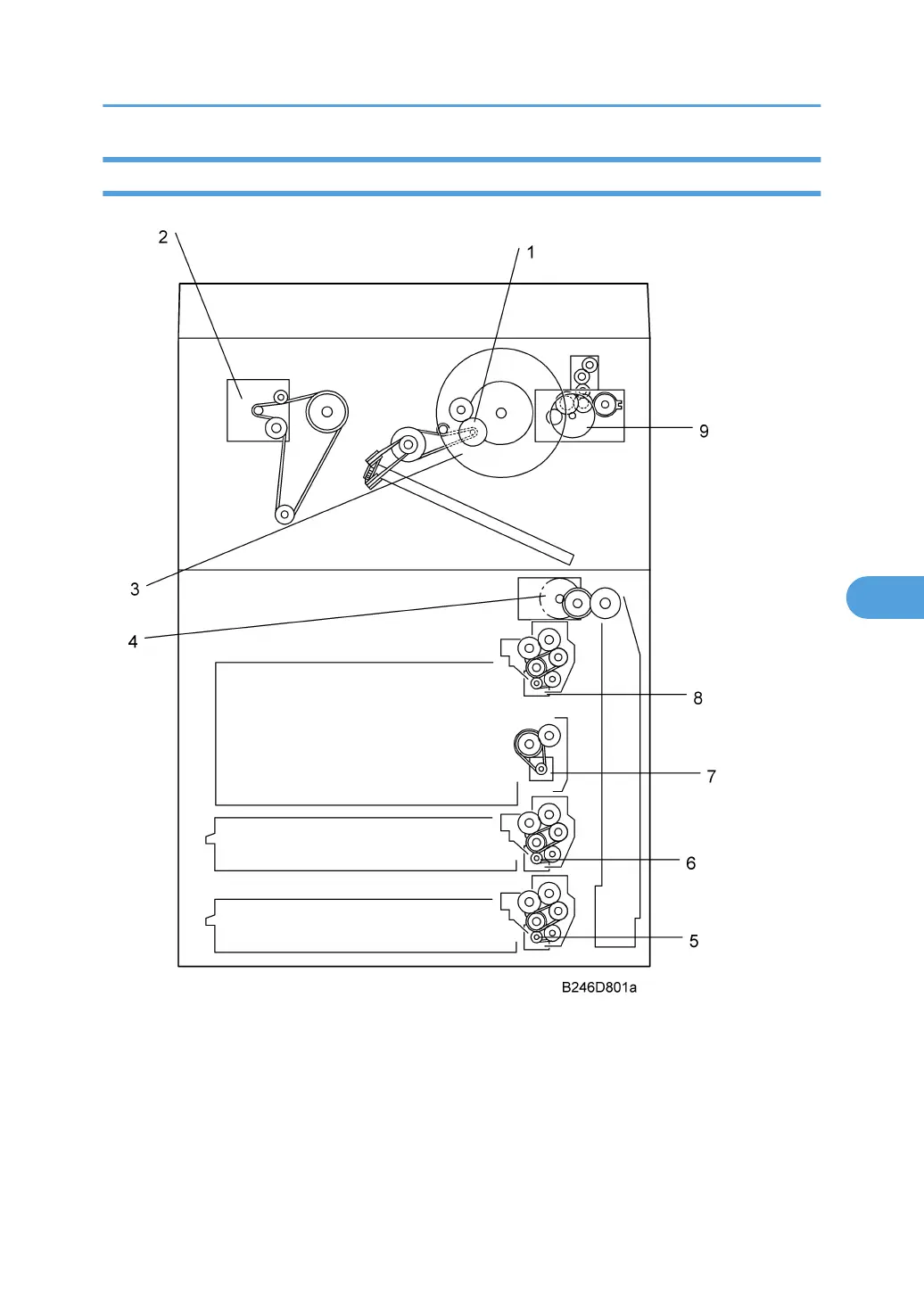

Motor Overview
1. Drum Motor
2. Fusing/Exit Motor
3. Registration Motor
4. Toner Collection Motor
5. Paper Feed Motor 3
6. Paper Feed Motor 2
7. Lower Relay Motor
8. Paper Feed Motor 1
9. Development Motor
Overview
437
6
