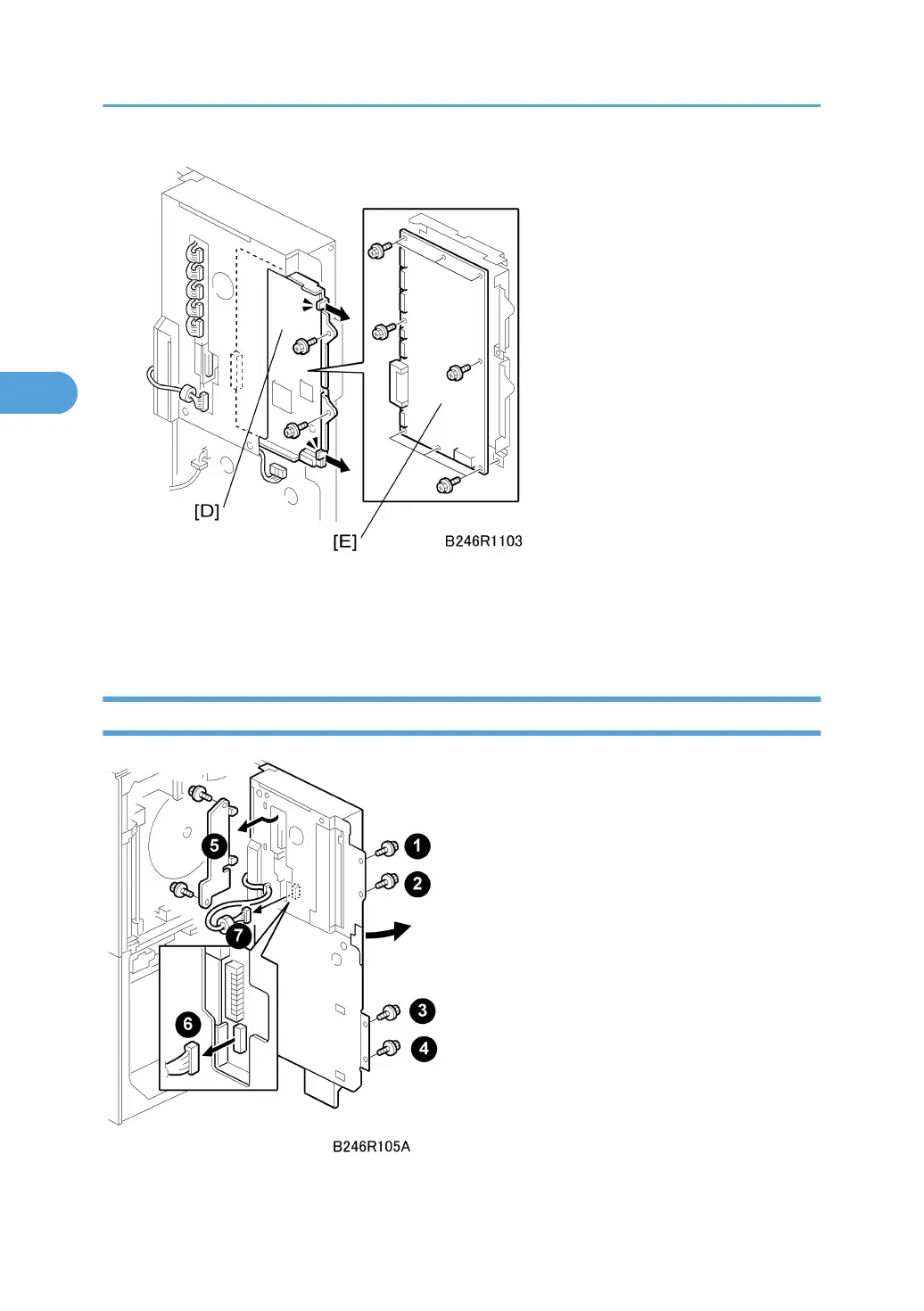

4. IPU board unit [D] ( x7, x2)
• Slowly slide the IPU board and bracket out of the controller box.
5. IPU [E] ( x8)
Motherboard
Remove:
3. Replacement and Adjustment
