4. Set the web [D] under the feeler [E] of the web end sensor ¹.
5. Attach bushing 2 [F] º.
6. Attach the new web roll [G] and wind it tight so no slack remains ».
• Before reassembling the machine, confirm that 1) there is no slack in the web roll, 2) the web is
below the feeler of the web end sensor.
7. Attach the upper cover.
8. After installing a new web roll, reset SP1902-001 to zero.
Web Motor and Web End Sensor
Remove:
• Web unit and end cover. See "Web Unit Disassembly"

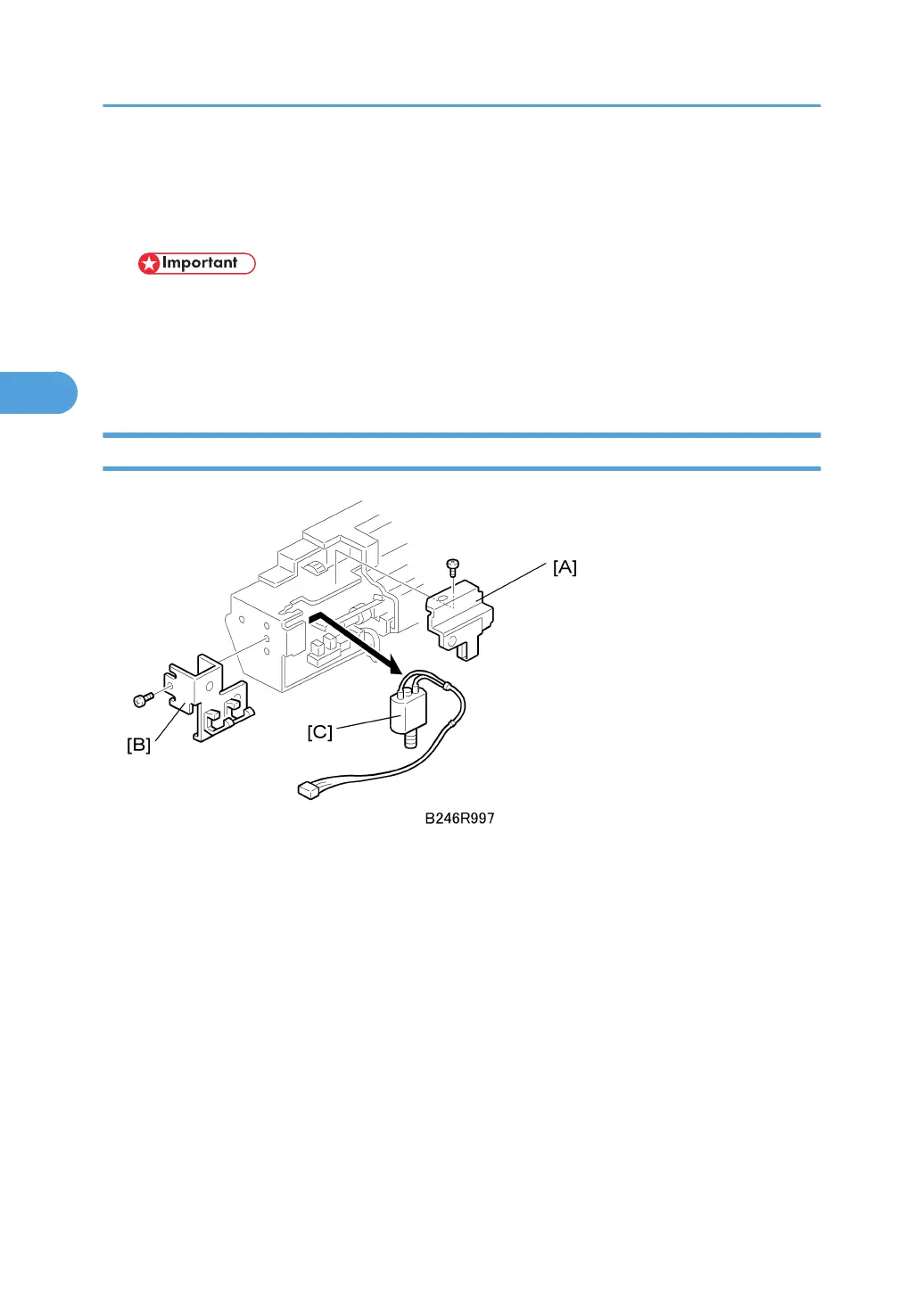

1. Bracket [A] ( x 1)
2. Web motor positioning bracket [B] ( x 1)
3. Web motor [C]
