Web Unit Re-assembly

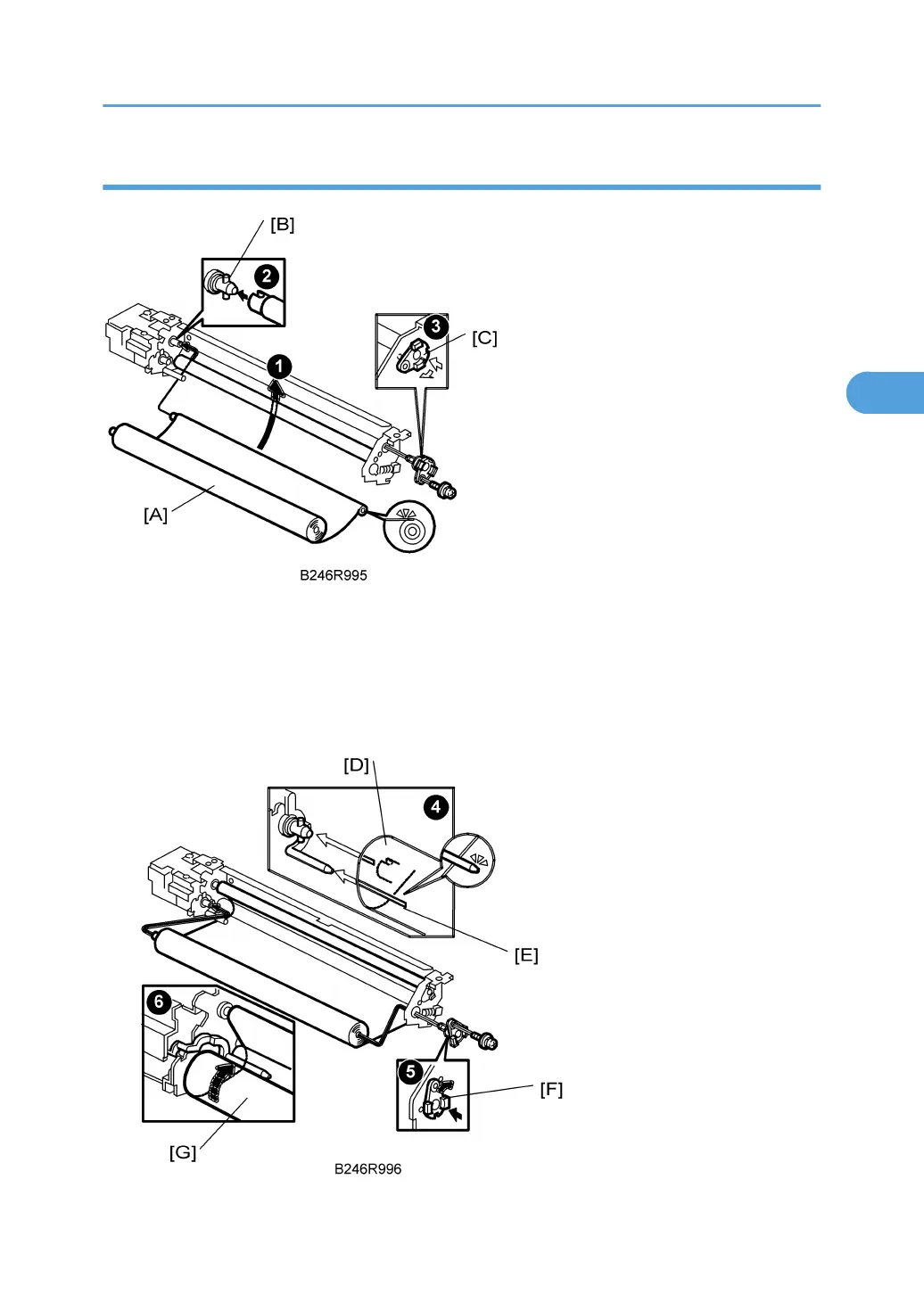

1. Attach the cleaning roller [A]
• Insert the end of the web into the slot ¶.
2. Insert the drive pins [B] into the web shaft ·.
3. After installing bushing [C], rotate the shaft right to lock it, then attach the lock screw ¸.
