Ricoh MT-P2 - Drum Motor

Drum Motor
Remove:
• Rear covers
• Controller/IPU panel ( x 2) (not shown). The panel swings open like a door. You do not need to
remove it.
• Flywheel ( x 3) (not shown)

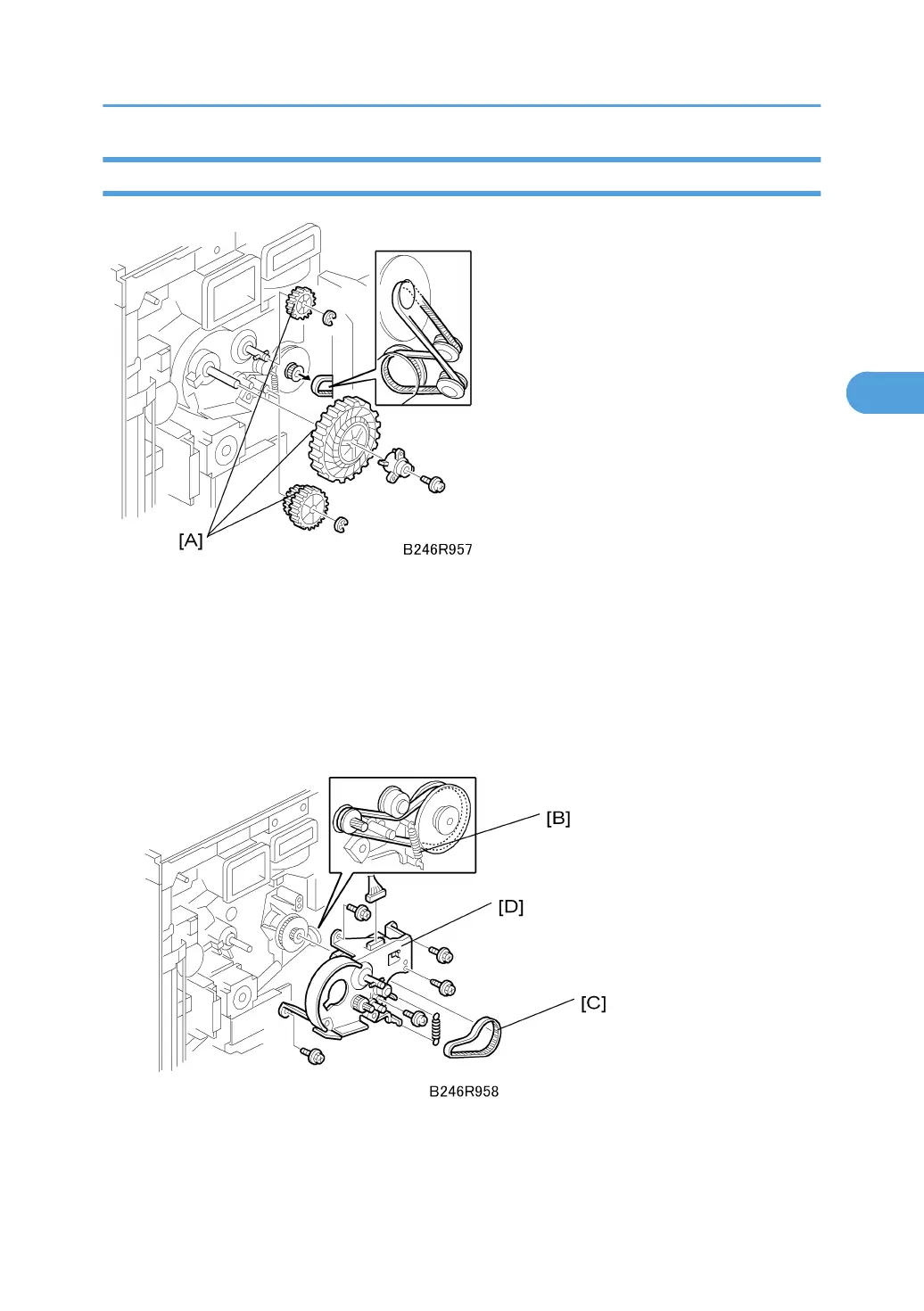

1. Three gears [A] ( x 1,  x 2, Timing belt x 1)
2. Spring [B]
3. Timing belt [C]
4. Drum motor [D] ( x 1,  x 5)
