Duplex Motors
Duplex Inverter Motor

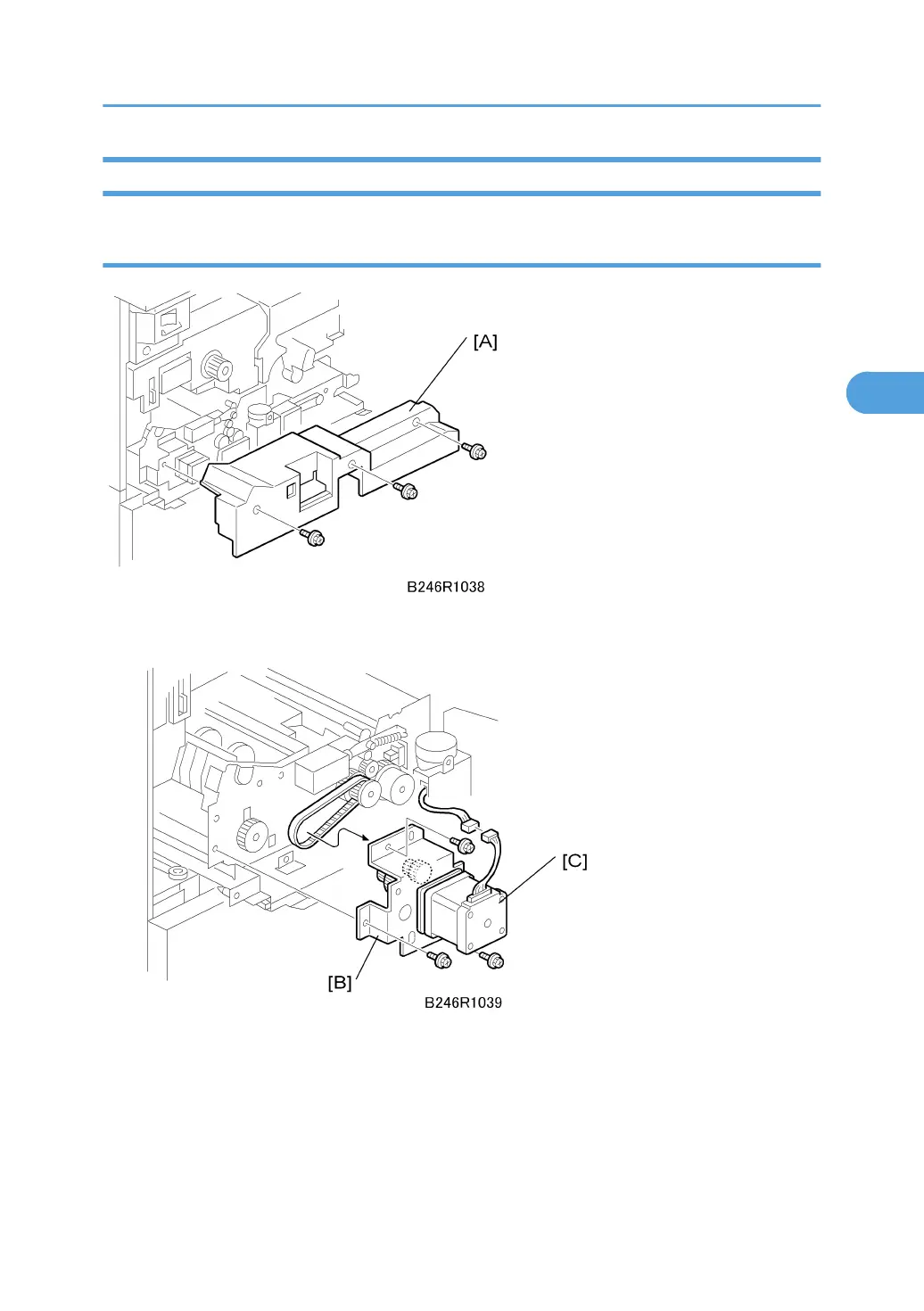

1. Remove the cover [A] ( x 3)
2. Inverter motor bracket [B] ( x 3)
3. Inverter motor [C] (harness x 1, x 1, x 2, timing belt x 1)
Duplex Unit
199
