Ricoh MT-P2 - Pcbs and HDD; BCU Board (Base Engine Control Unit); Controller Board

PCBs and HDD

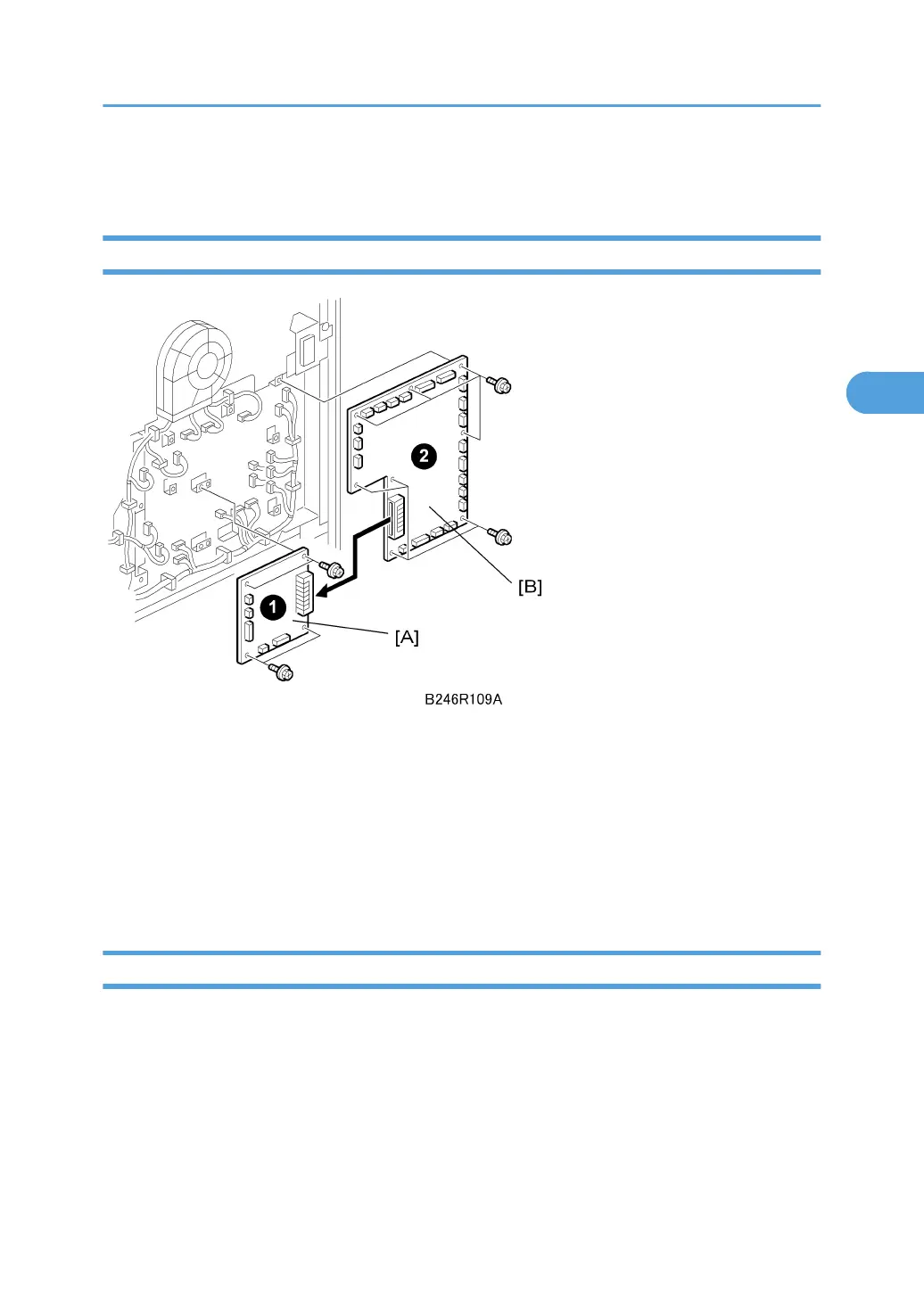

BCU Board (Base Engine Control Unit)
Remove:
• Rear upper cover ( x2)
• Rear lower cover ( x2)
1. BCU screws, connectors [A] ( x1, x4,  x4)
2. IOB screws, connectors [B] ( x6, x16,  x8)
3. Separate the BCU ¶, IOB · at the edge connector
Controller Board
Remove:
• Rear upper cover ( x2)
• Rear lower cover ( x2)
• Controller box cover ( x13)
• All SD cards and SD card slot cover ( x1)
PCBs and HDD
