Ricoh MT-P2 - Rear Fence Return Sensor Replacement

Reinstallation

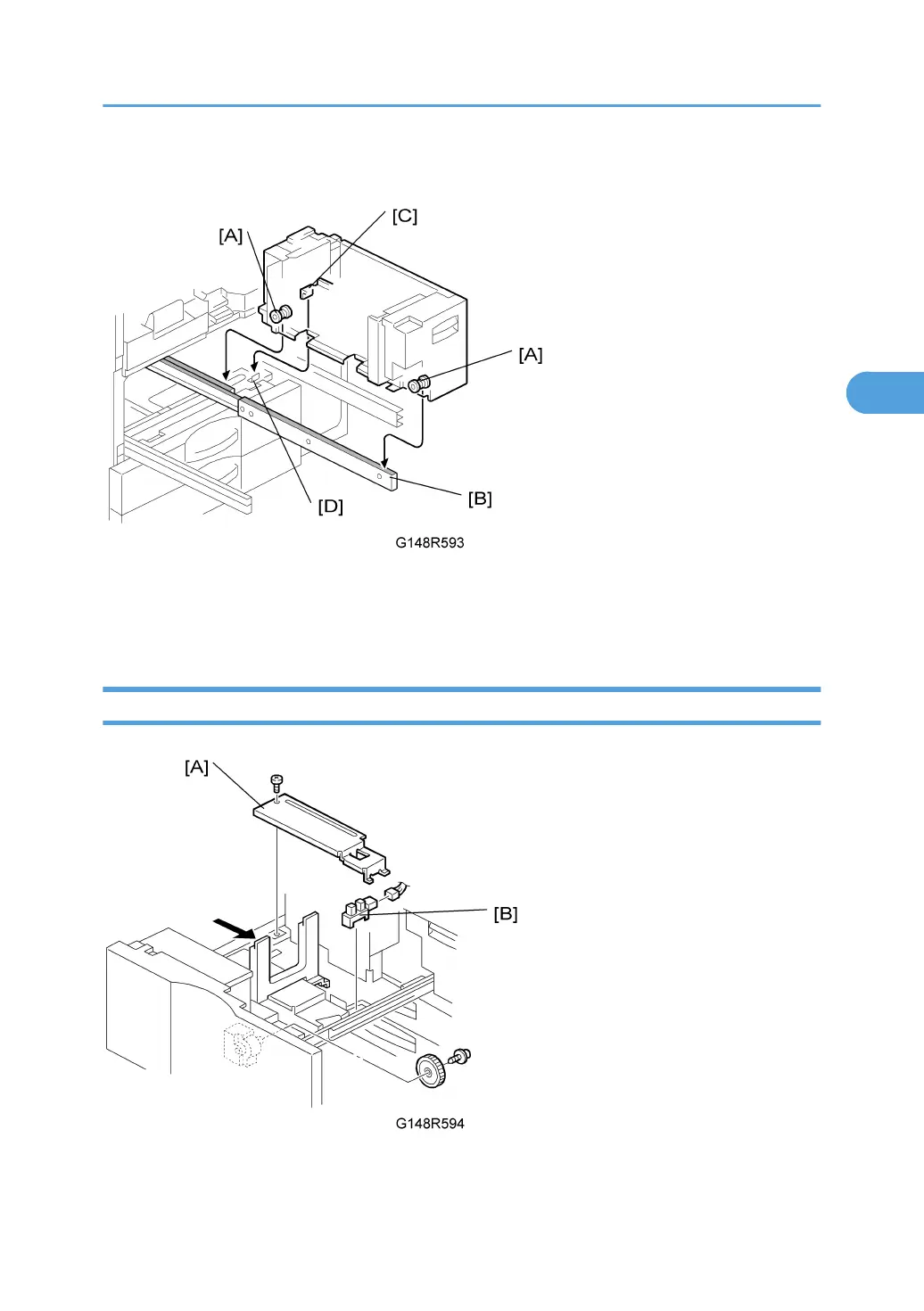

• When re-installing the right tandem tray, make sure that the wheels [A] ride on the slide rail [B].
• When re-installing the right tandem tray, make sure that the tandem tray stopper [C] is set behind the
stopper [D] on the frame.
Rear Fence Return Sensor Replacement
1. Turn off the machine.
Paper Feed
207
3
