Ricoh MT-P2 - Development Power Pack

Development Power Pack
Remove:
• Rear upper cover

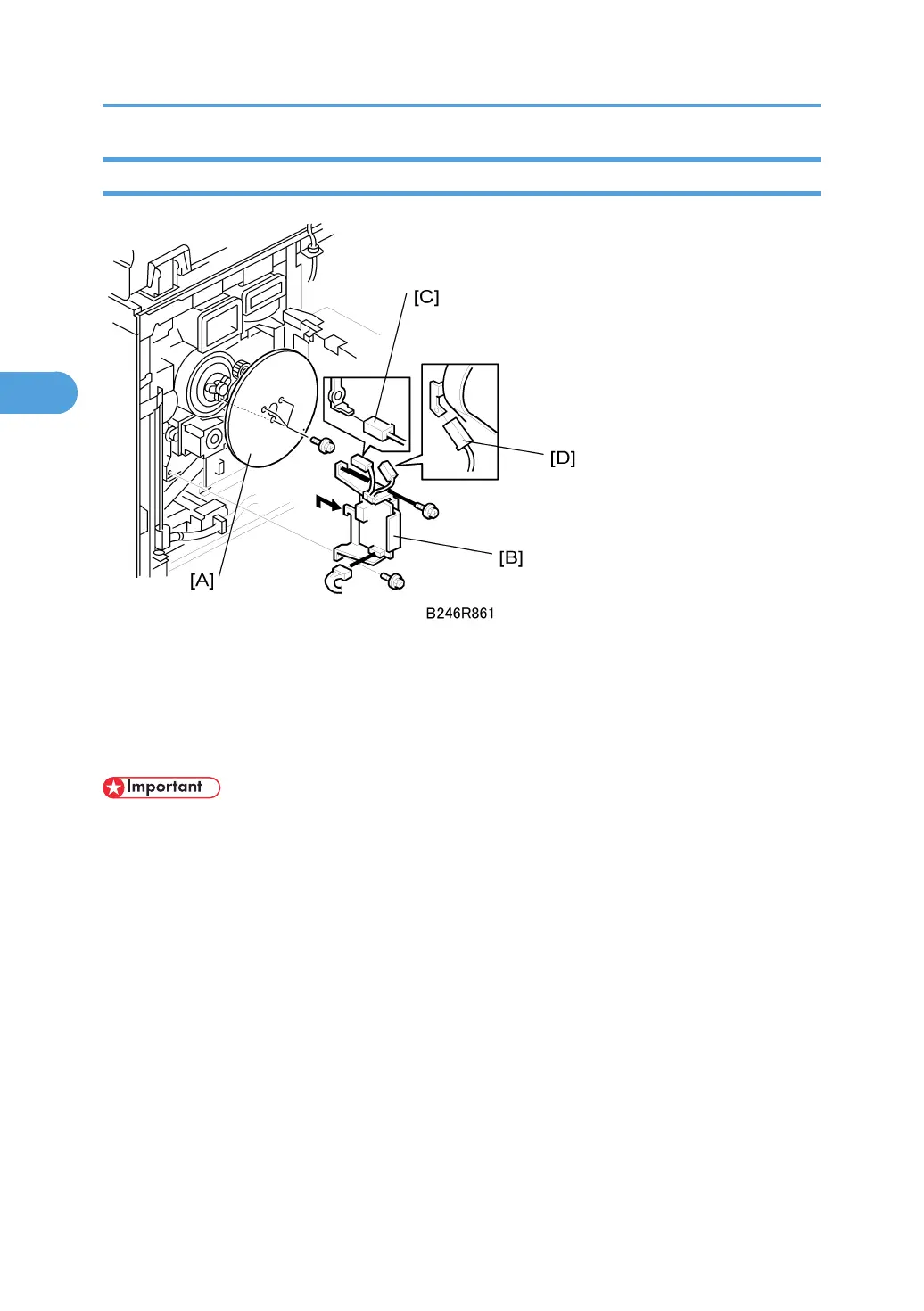

1. Flywheel [A] ( x 3)
2. Development power pack [B] ( x 2,  x 3)
• Mark the bayonet connectors [C], [D] with a felt pen to ensure that they are not connected incorrectly
when the power pack is re-connected.
3. Replacement and Adjustment
